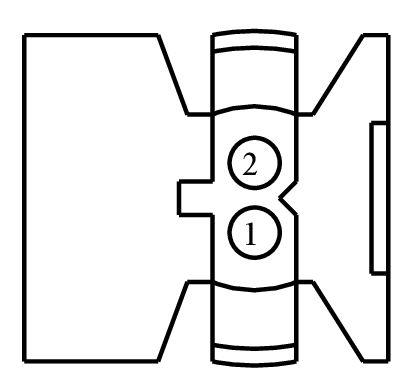

Connector End View C303 - PASSENGER SAFETY BELT RETRACTOR PRETENSIONER

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C303	PASSENGER SAFETY BELT RETRACTOR PRETENSIONER	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-EAB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR171 (VT-GN)	22	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) +	DU5T-14474-EAB
2	RR171 (GY)	22	CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD (#2) -	DU5T-14474-EAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1230

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BPA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Airbag - Side Curtain
• Squib - Airbag (Passenger)
