Instrument Panel Upper Section: Removal

WARNING: Before beginning any service procedure in this article, refer to health and safety warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

Refer to: Pyrotechnic Device Health and Safety Precautions .
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .
Release the clips and remove the lower RH instrument panel trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
NOTE: RH shown in illustration,, LH similar.

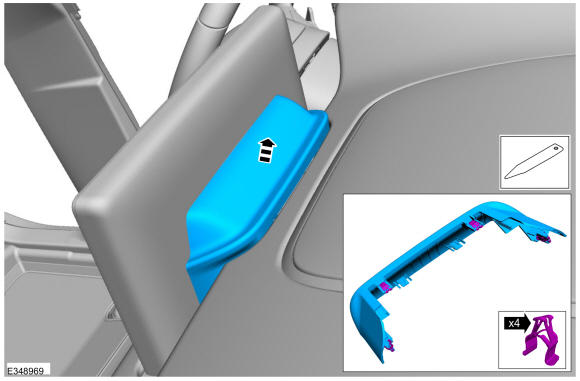

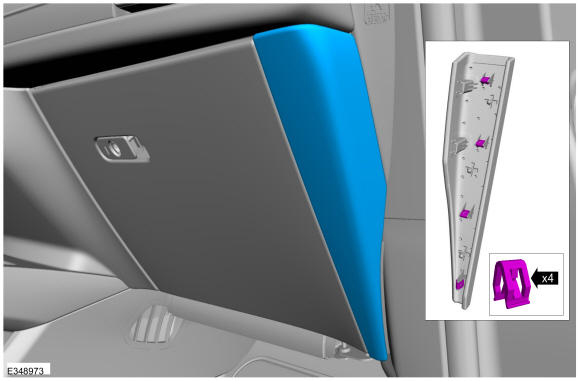

On both sides, release the clips and remove the trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
NOTE: RH shown in illustration, LH similar.

On both sides, remove the trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the floor console. Refer to: Floor Console .

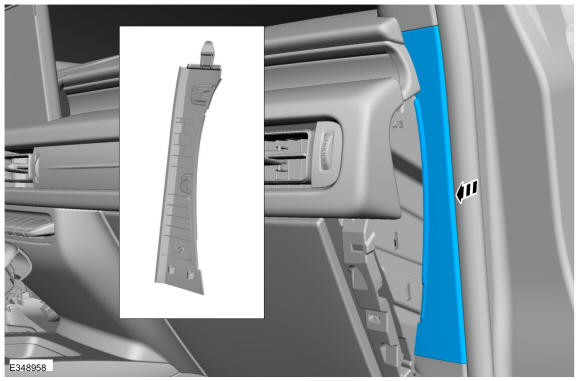

Remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .
Remove the instrument panel speaker. Refer to: Instrument Panel Speaker .
Release the clips and remove the information display trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

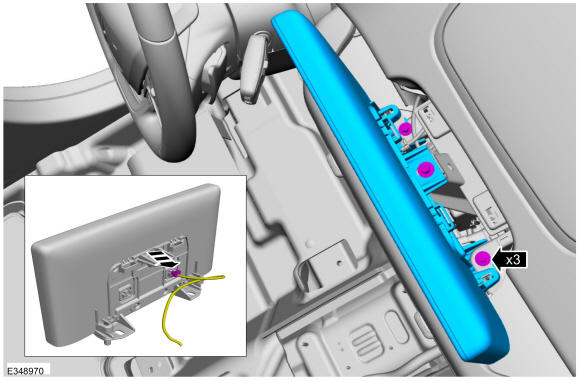

Remove the bolts and the information display unit.
- Disconnect the electrical connector.
  Torque

  : 12 lb.in (1.3 Nm)
Courtesy of FORD MOTOR COMPANY

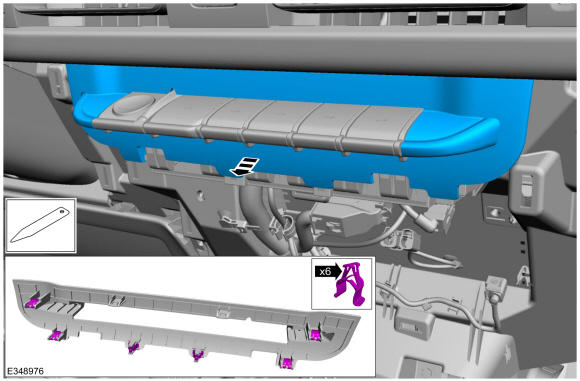

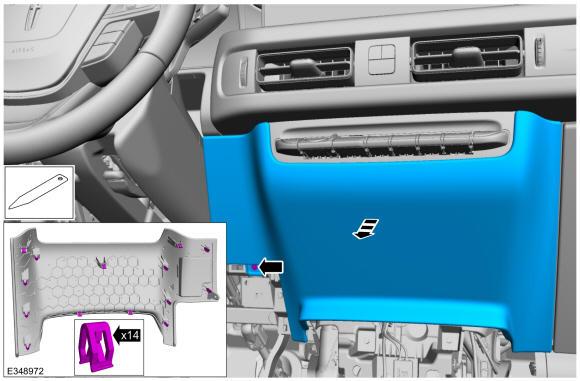

Remove the screw, release the clips and remove the lower center instrument panel trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

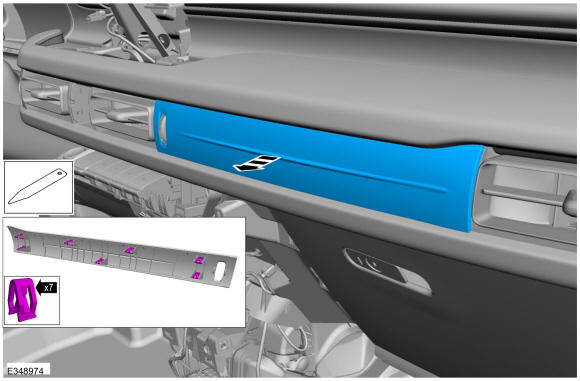

Release the clips and remove the finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

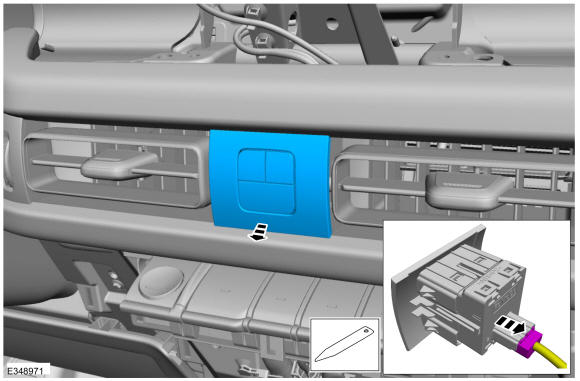

Remove the switch.
- Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

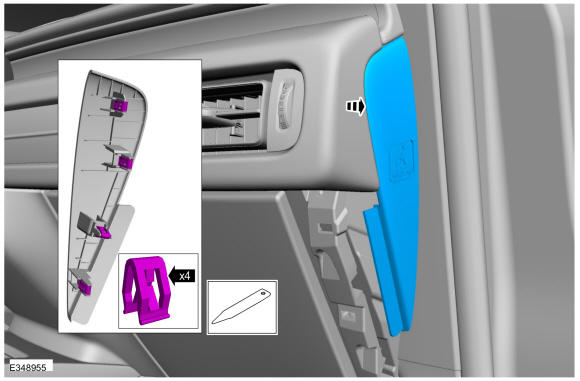

Release the clips and remove the RH instrument panel finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the bolt, release the clips and remove the RH instrument panel trim panel. Use the General Equipment: Interior Trim Remover
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the LH instrument panel trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

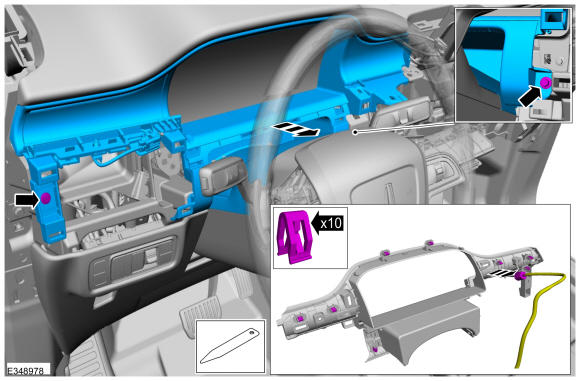

Remove the bolts, release the clips and remove the IPC bezel.
- Detach the upper steering column trim panel.
- Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

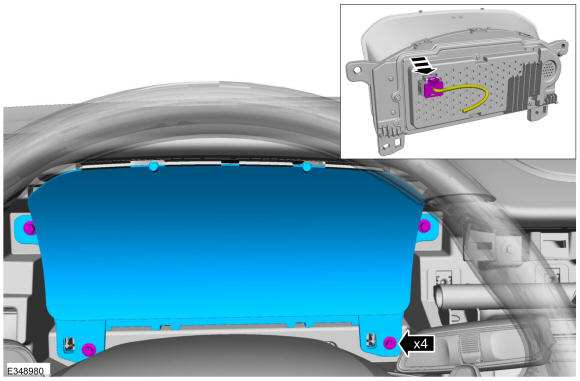

Remove the bolts and the IPC.
- Disconnect the electrical connector.
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

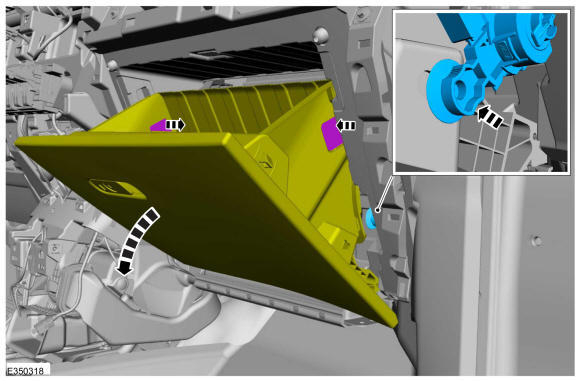

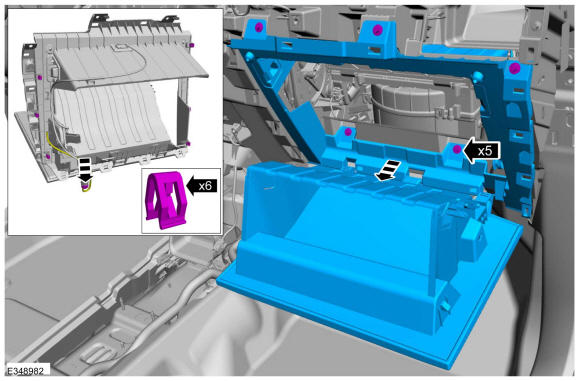

Release the tabs, remove the dampening strap and fully lower the glove compartment door.

Courtesy of FORD MOTOR COMPANY

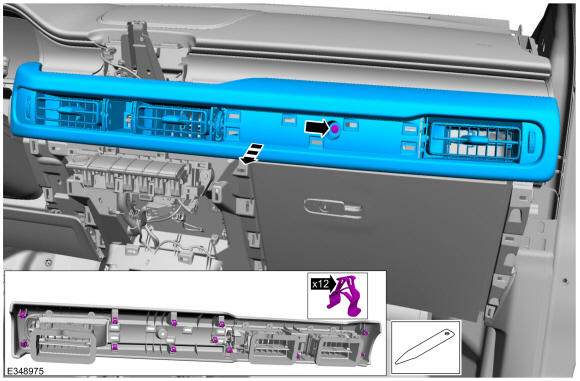

Remove the bolts, release the clips and remove the glove compartment close-out.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

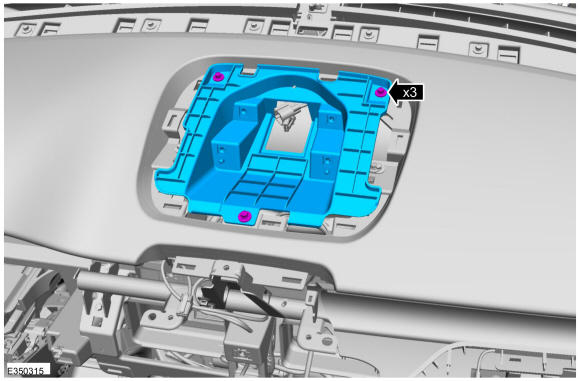

Remove the bolts the instrument panel speaker mounting bracket.

Courtesy of FORD MOTOR COMPANY

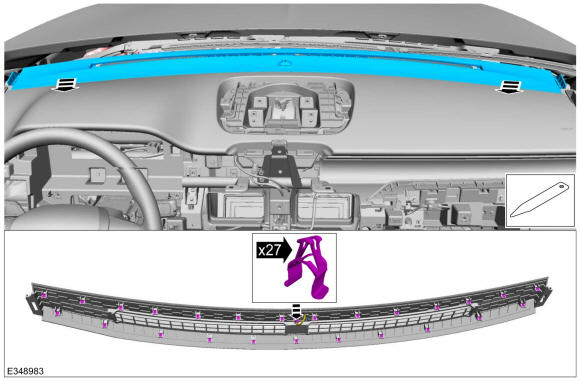

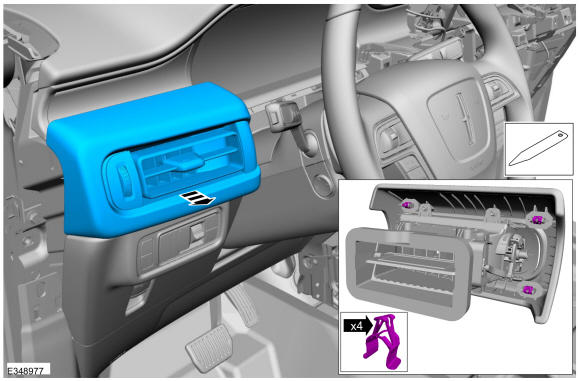

Release the clips and remove the defrost grille trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

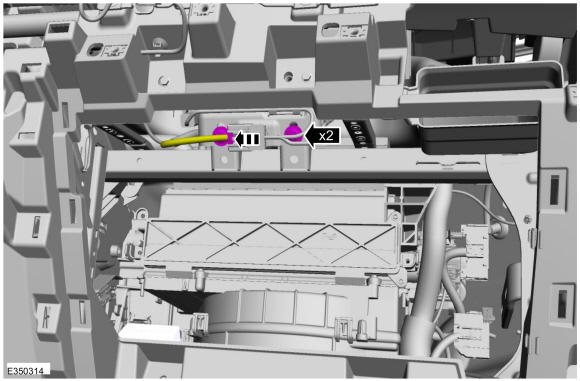

Remove the bolts.
- Disconnect the electrical connector.
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

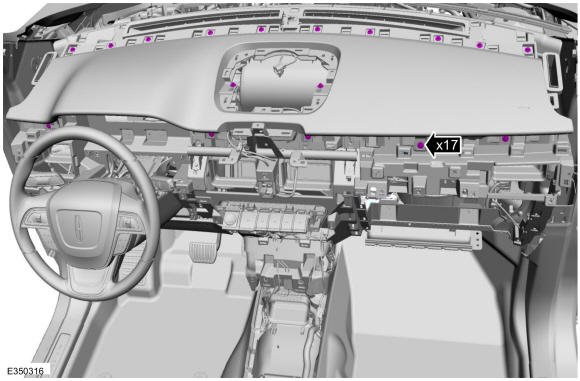

Remove the instrument panel upper section bolts.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

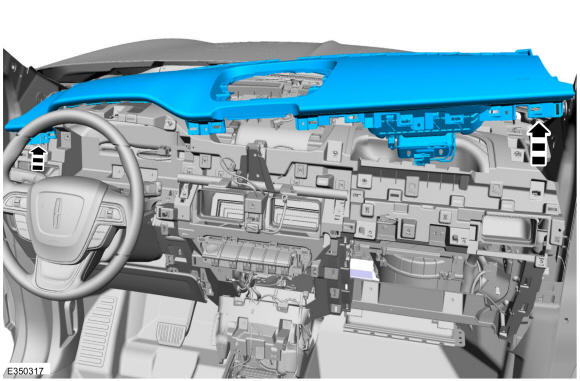

Lift instrument panel upper section enough to clear the passenger side air bag and remove.

GFD622314
