Glove Compartment: Removal

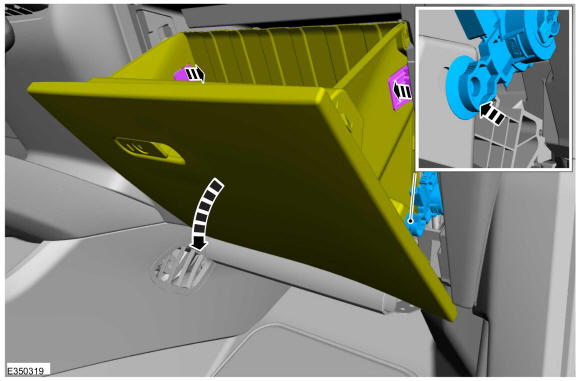

  1. Fully lower the glove compartment.

    • Release the tabs.

    • Disconnect the dampener strap.

    GFD621288Courtesy of FORD MOTOR COMPANY

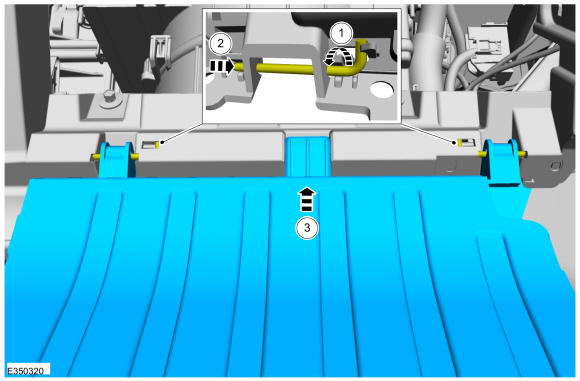

    1. On both sides, rotate the hinge pin counter-clockwise through the opening.
    2. On both sides, push the hinge pins towards the center to clear the hinge.
    3. Lift the glove compartment off the center hinge.
GFD622272Courtesy of FORD MOTOR COMPANY
