Floor Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

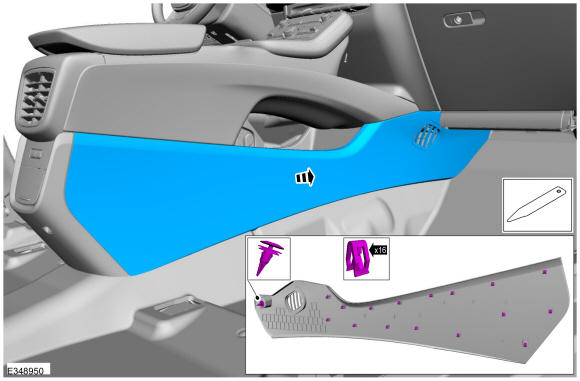

  1. Release the retainers and remove the RH lower floor console trim panel. Use the General Equipment: Interior Trim Remover
    GFD622267Courtesy of FORD MOTOR COMPANY

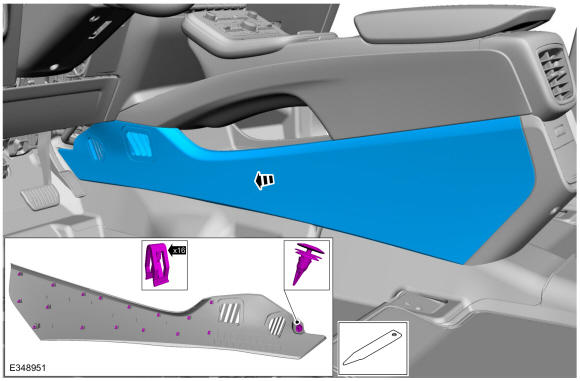

  2. Release the retainers and remove the LH lower floor console trim panel. Use the General Equipment: Interior Trim Remover
    GFD622268Courtesy of FORD MOTOR COMPANY

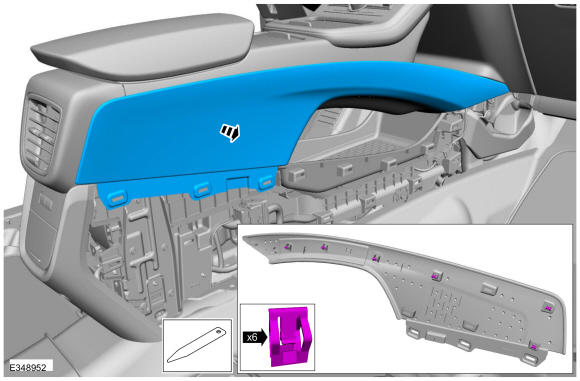

  3. Release the retainers and remove the RH upper floor console trim panel. Use the General Equipment: Interior Trim Remover
    GFD622269Courtesy of FORD MOTOR COMPANY

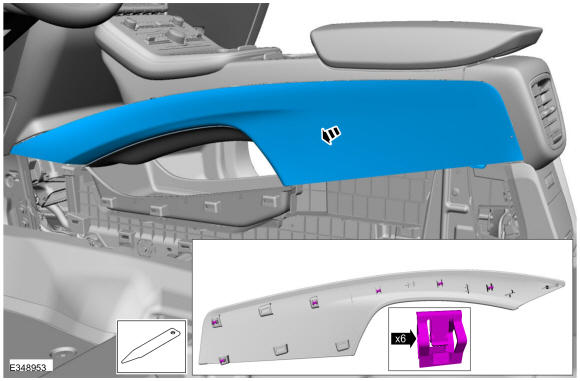

  4. Release the retainers and remove the LH upper floor console trim panel. Use the General Equipment: Interior Trim Remover
    GFD622270Courtesy of FORD MOTOR COMPANY

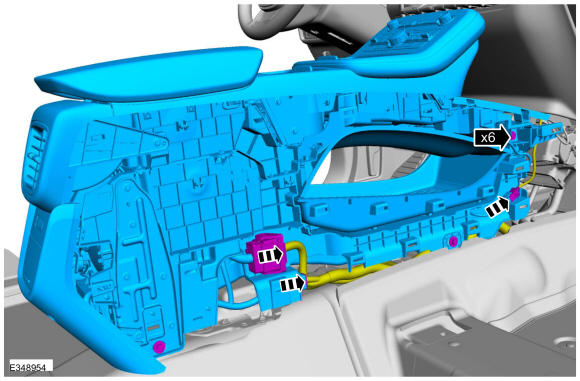

  5. Remove the bolts and the floor console.

    • Disconnect the electrical connectors.

      Torque

      : 71 lb.in (8 Nm)

GFD622271Courtesy of FORD MOTOR COMPANY
