Rear Parking Aid Sensor: Removal

NOTE: This procedure can be used for all locations of the component.
  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .

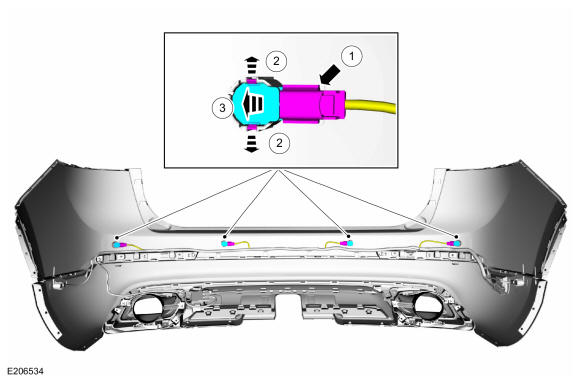

  2. Remove the rear parking aid sensor.

    1. Disconnect the rear parking aid sensor electrical connector.
    2. Release the tabs.
    3. Remove the rear parking aid sensor from the bracket.

GFD621396Courtesy of FORD MOTOR COMPANY
