Front Parking Aid Sensor: Removal

NOTE: This procedure can be used for all locations of the component.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .
  2. Remove the front parking aid sensor.

    1. Disconnect the front parking aid sensor electrical connector.
    2. Release the tabs.
    3. Remove the front parking aid sensor from the bracket.

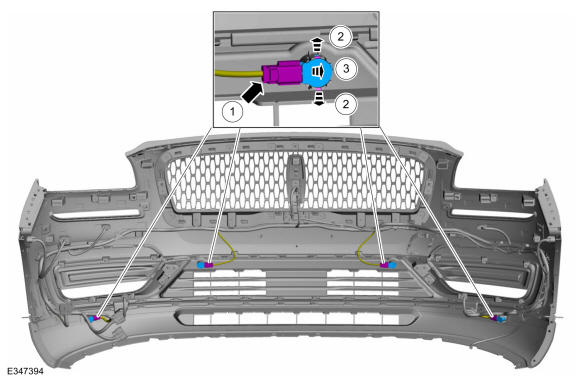

GFD621393Courtesy of FORD MOTOR COMPANY
