Side Parking Aid Camera: Removal

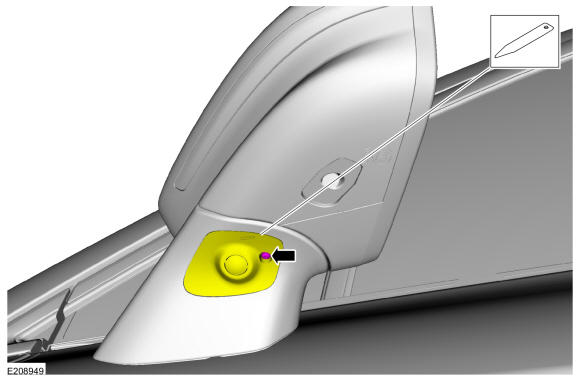

  1. Remove the screw and using the non-marring tool, position the side parking aid camera. Use the General Equipment: Interior Trim Remover
    GFD621417Courtesy of FORD MOTOR COMPANY

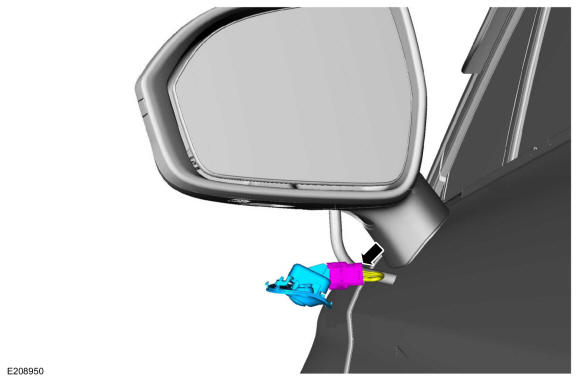

  2. Disconnect the side parking aid camera electrical connector.
    GFD621418Courtesy of FORD MOTOR COMPANY

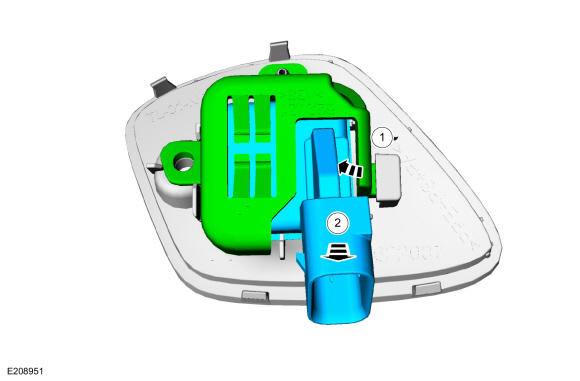

  3. Remove the side parking aid camera.

    1. Remove the side parking aid camera bracket.
    2. Remove the side parking aid camera.

GFD621419Courtesy of FORD MOTOR COMPANY
