Rear Parking Aid Camera: Removal

Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

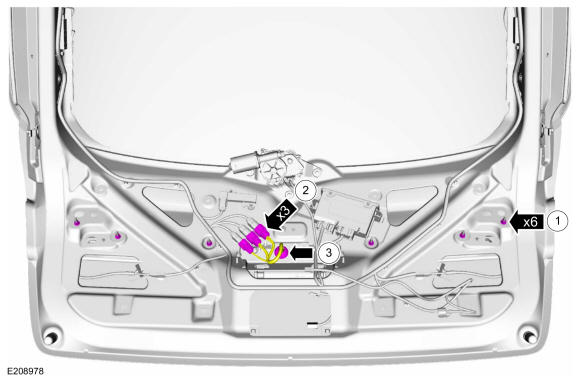

Release the inside connections and nuts from the reversing lamp assembly.
1. Remove the reversing lamp nuts.
  Torque: 28 lb.in (3.2 Nm)
2. Disconnect the electrical connectors.
3. Push the grommet through the liftgate.
Courtesy of FORD MOTOR COMPANY

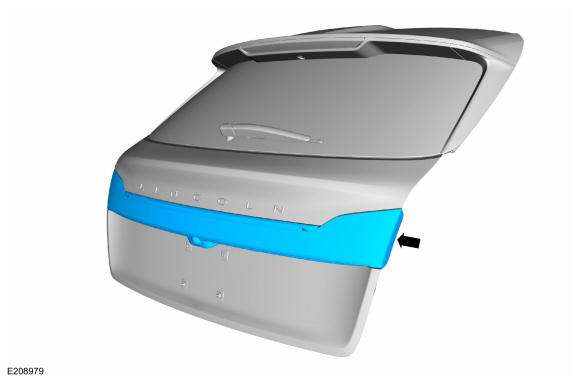

Remove the reversing lamp assembly.

Courtesy of FORD MOTOR COMPANY
Remove the screw covers.

Courtesy of FORD MOTOR COMPANY

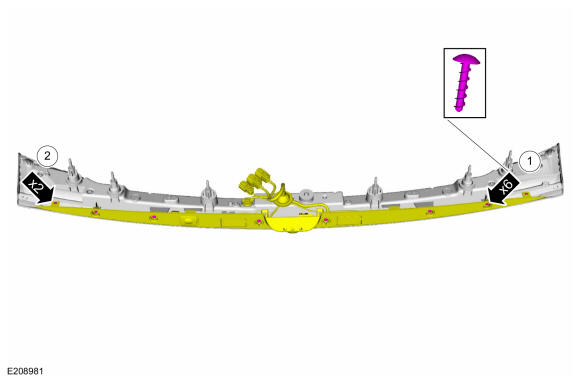

Position the reflector and plate assembly.
1. Remove the screws.
2. Release the tabs and position the reflector and plate assembly.
Courtesy of FORD MOTOR COMPANY

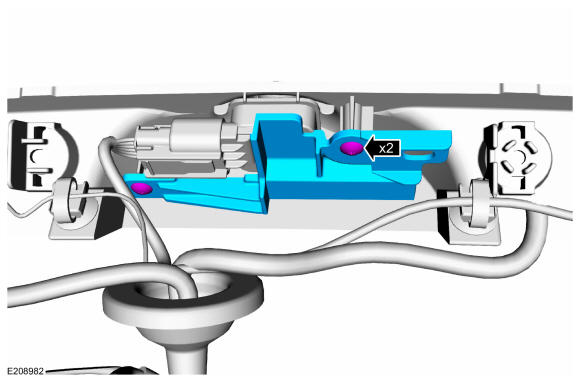

Remove the screws and the rear view camera bracket.

Courtesy of FORD MOTOR COMPANY

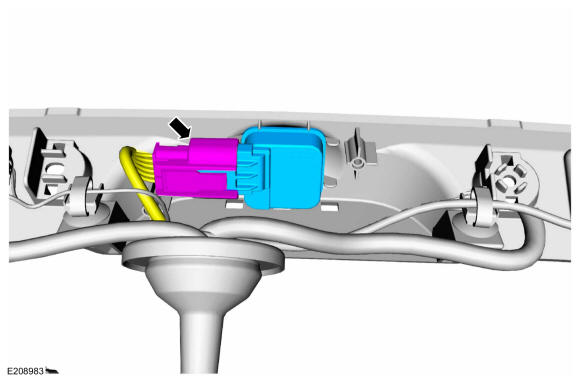

Disconnect and remove the rear view camera.

Courtesy of FORD MOTOR COMPANY
