Front Parking Aid Camera: Removal

  1. Remove the front bumper cover. Refer to: Front Bumper Cover .

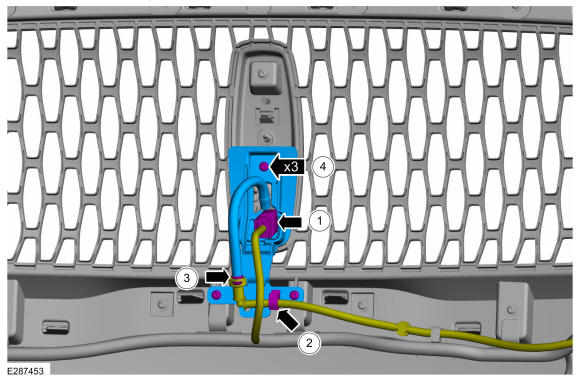

    1. Disconnect the front camera electrical connector.
    2. Separate the washer hose retainer.
    3. Disconnect the front camera washer hose.
    4. Remove the screws, the bracket and the front camera.
    GFD621406Courtesy of FORD MOTOR COMPANY

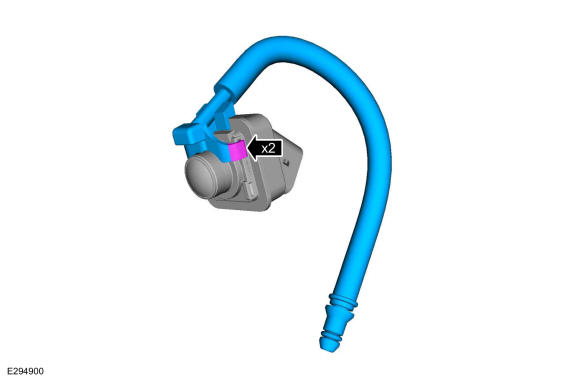

  3. Release the tabs and remove the washer nozzle assembly.
GFD621407Courtesy of FORD MOTOR COMPANY
