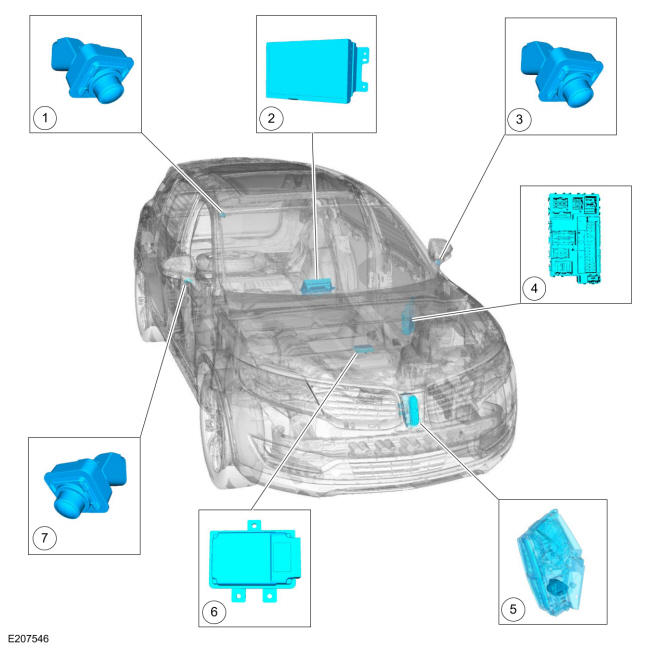

Parking Aid - Component Location
| Item | Description |
|---|---|
| 1 | Rear parking aid camera |
| 2 | FDIM |
| 3 | LH side parking aid camera (360 degree view camera system) |
| 4 | BCM (rear only parking aid camera system) |
| 5 | Front parking aid camera assembly (360 degree view camera system) |
| 6 | IPMB (360 degree view camera system) |
| 7 | RH side parking aid camera (360 degree view camera system) |
