Rear Active Park Assist Sensors: Removal

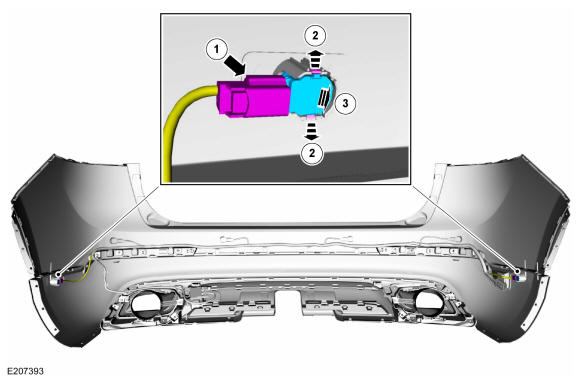

1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .
2. Remove the rear active park assist sensor.
   1. Disconnect the rear active park assist electrical connector.
   2. Release the tabs.
   3. Remove the rear active park assist sensor from the bracket.
