Front Active Park Assist Sensors: Removal

Remove the front wheel and tire assembly. Refer to: Wheel and Tire .
Remove the front fender molding. Refer to: Front Fender Molding .

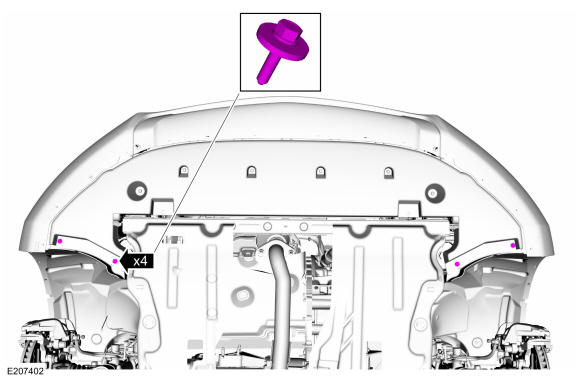

Remove the fender liner to radiator closeout screws.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown, RH side similar.

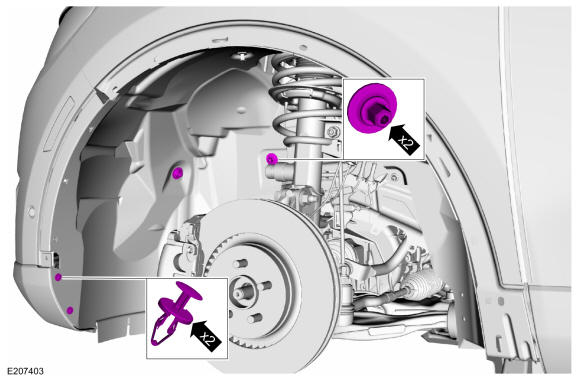

Remove the Pin-type retainers and nuts from the front of the fender liner.

Torque: Fender liner nuts: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

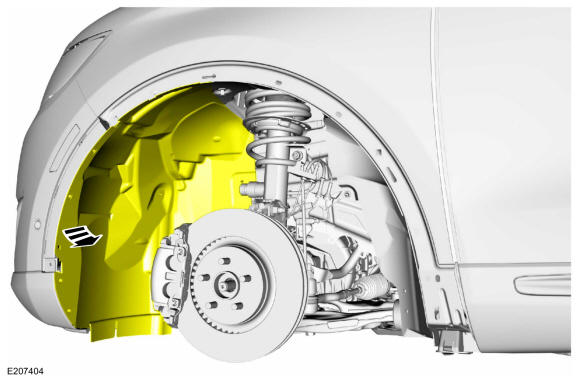

Position the fender liner aside.

Courtesy of FORD MOTOR COMPANY

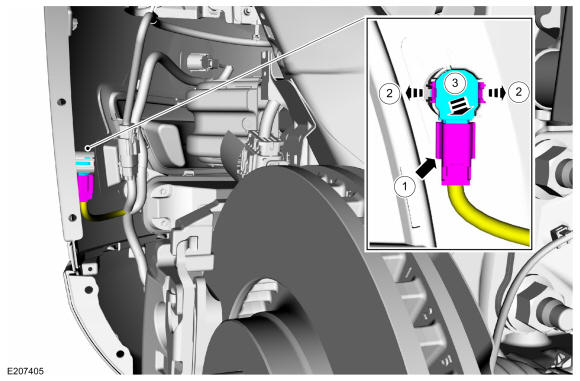

Remove the front active park assist sensor.
1. Disconnect the front active park assist electrical connector.
2. Release the tabs.
3. Remove the front active park assist sensor from the bracket.

Courtesy of FORD MOTOR COMPANY
