Anti-Theft Alarm Horn: Removal

  1. Remove the RH loadspace trim panel. Refer to: Loadspace Trim Panel .
  2. If equipped, remove the subwoofer and amplifier unit.

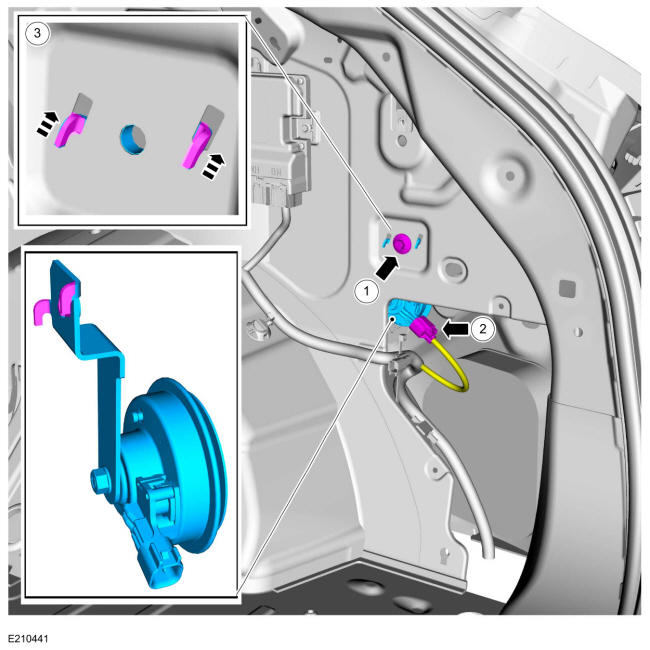

  3. Remove the anti-theft alarm horn.

    1. Remove the bolt.
    2. Disconnect the electrical connector.
    3. Release the hooks and remove the anti-theft alarm horn.

GFD621686Courtesy of FORD MOTOR COMPANY
