Bluetooth Rear Exterior Antenna: Removal

  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .

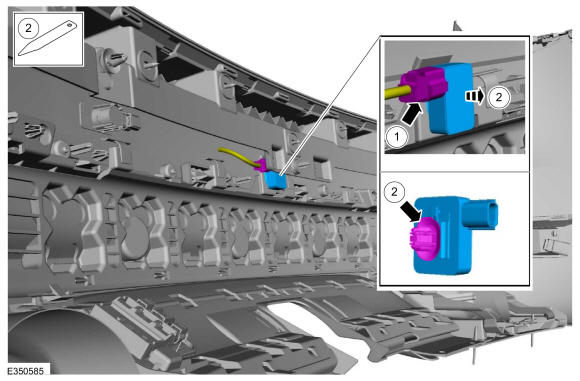

  2. Remove the bluetooth rear exterior antenna.

    1. Disconnect the bluetooth rear exterior antenna electrical connector.
    2. Release the bluetooth rear exterior antenna clip..Use the General Equipment: Interior Trim Remover

GFD621703Courtesy of FORD MOTOR COMPANY
