Parking Aid

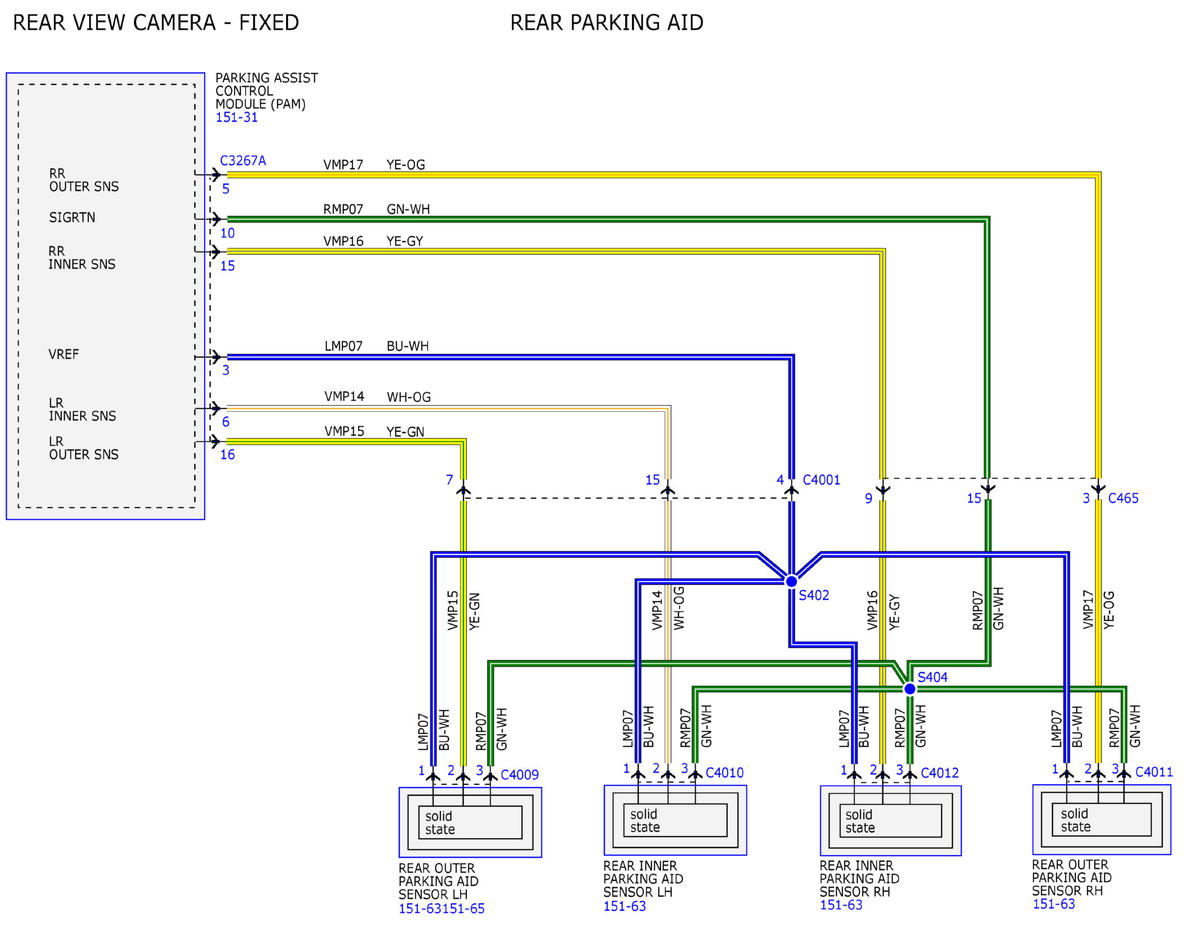

Fig 1: Parking Aid Wiring Diagram (1 Of 12)

GFDWR111035

Courtesy of FORD MOTOR COMPANY

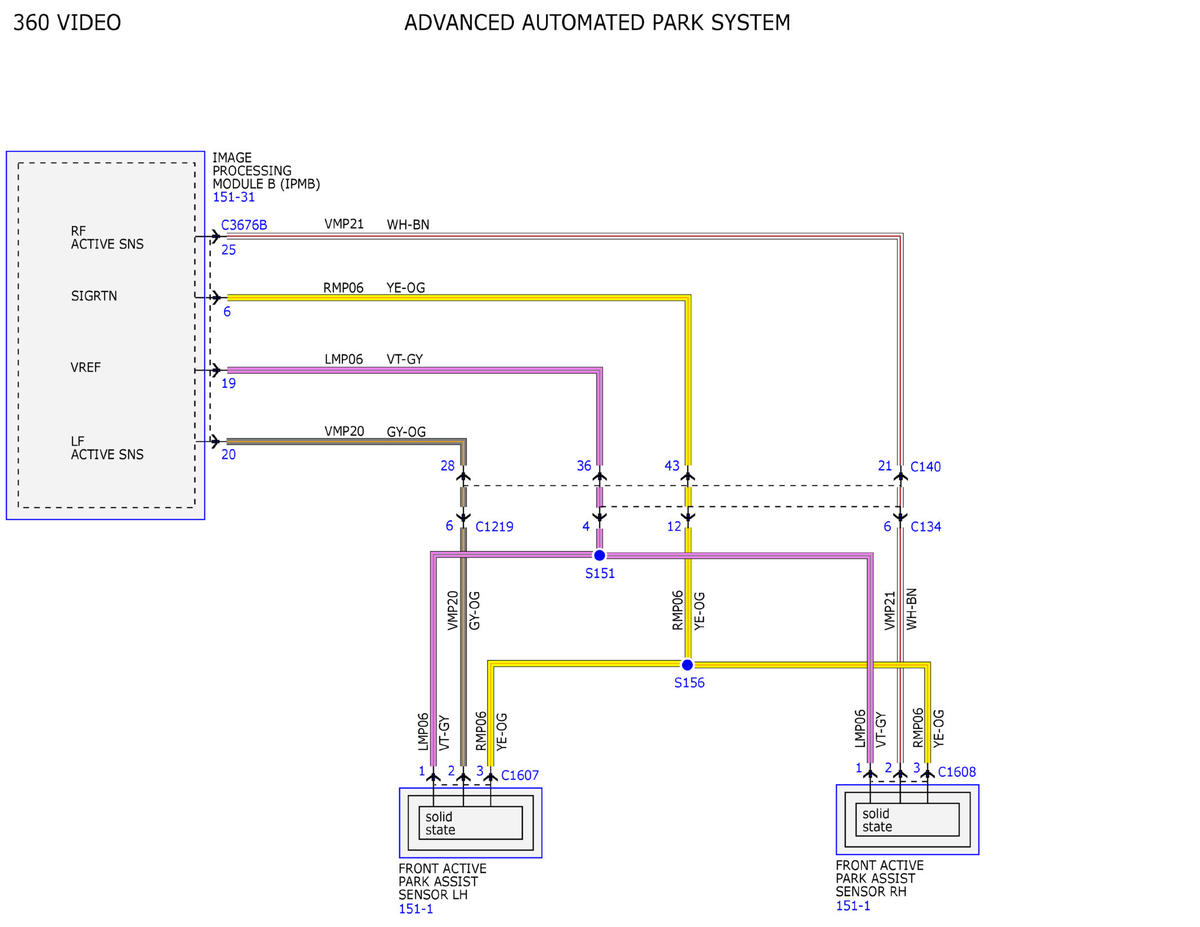

Fig 2: Parking Aid Wiring Diagram (2 Of 12)

GFDWR111036

Courtesy of FORD MOTOR COMPANY

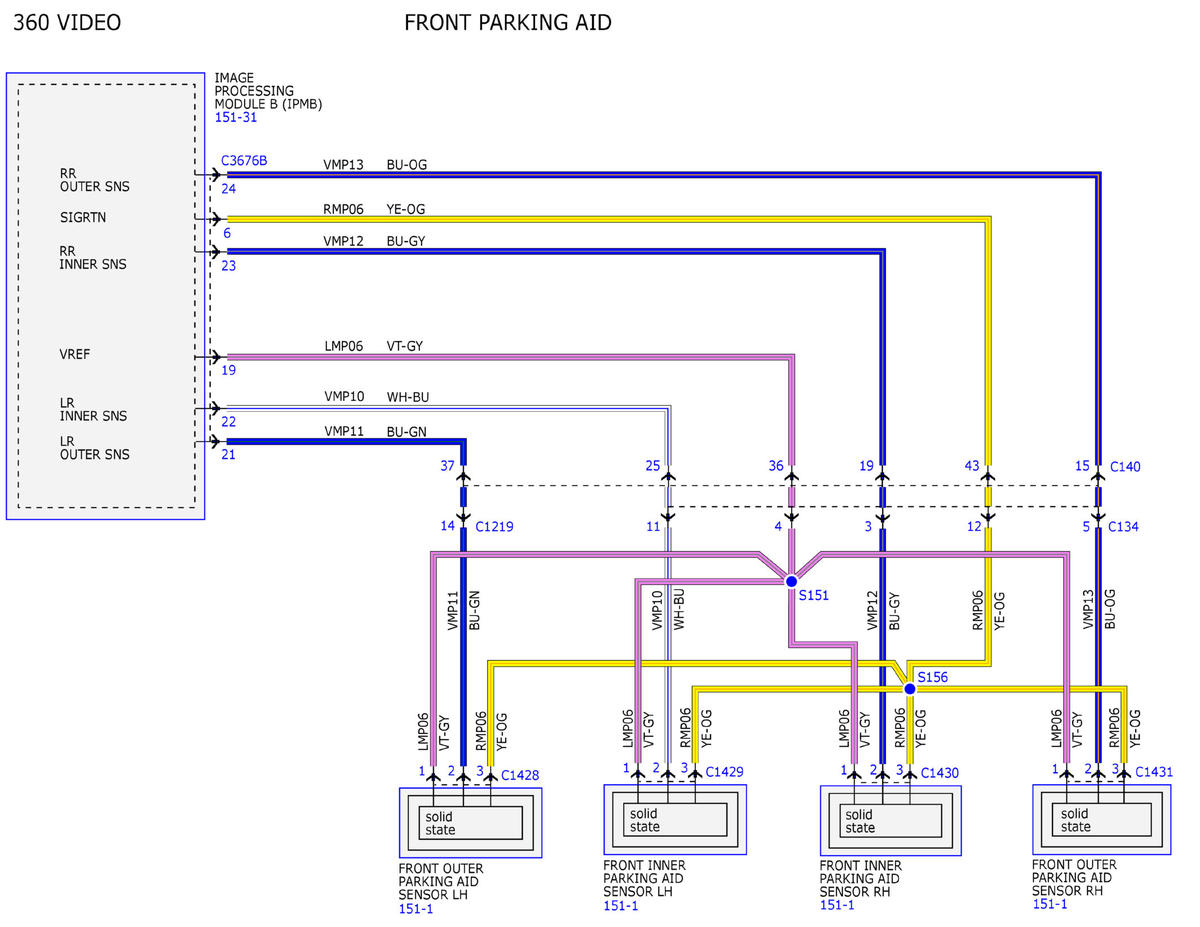

Fig 3: Parking Aid Wiring Diagram (3 Of 12)

GFDWR111037

Courtesy of FORD MOTOR COMPANY

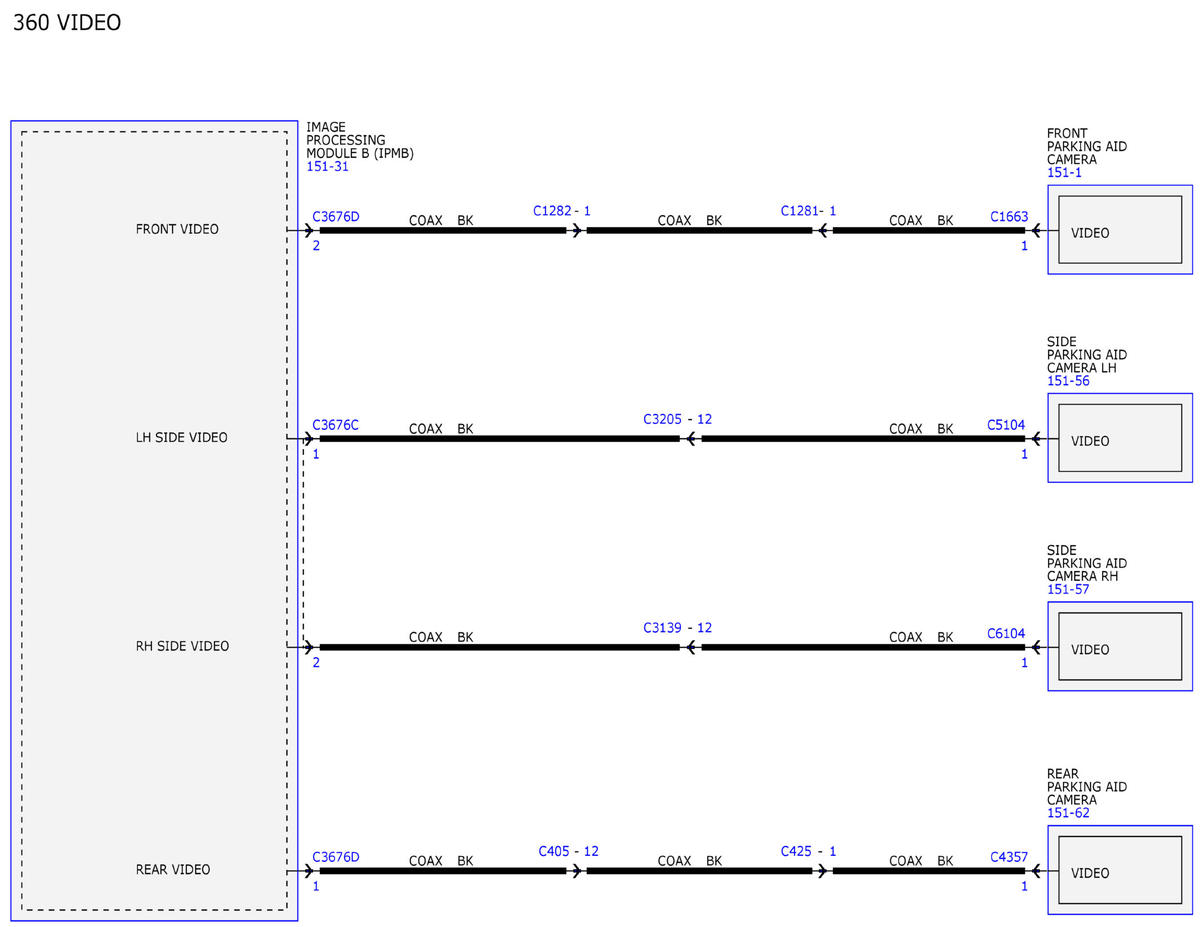

Fig 4: Parking Aid Wiring Diagram (4 Of 12)

GFDWR111038

Courtesy of FORD MOTOR COMPANY

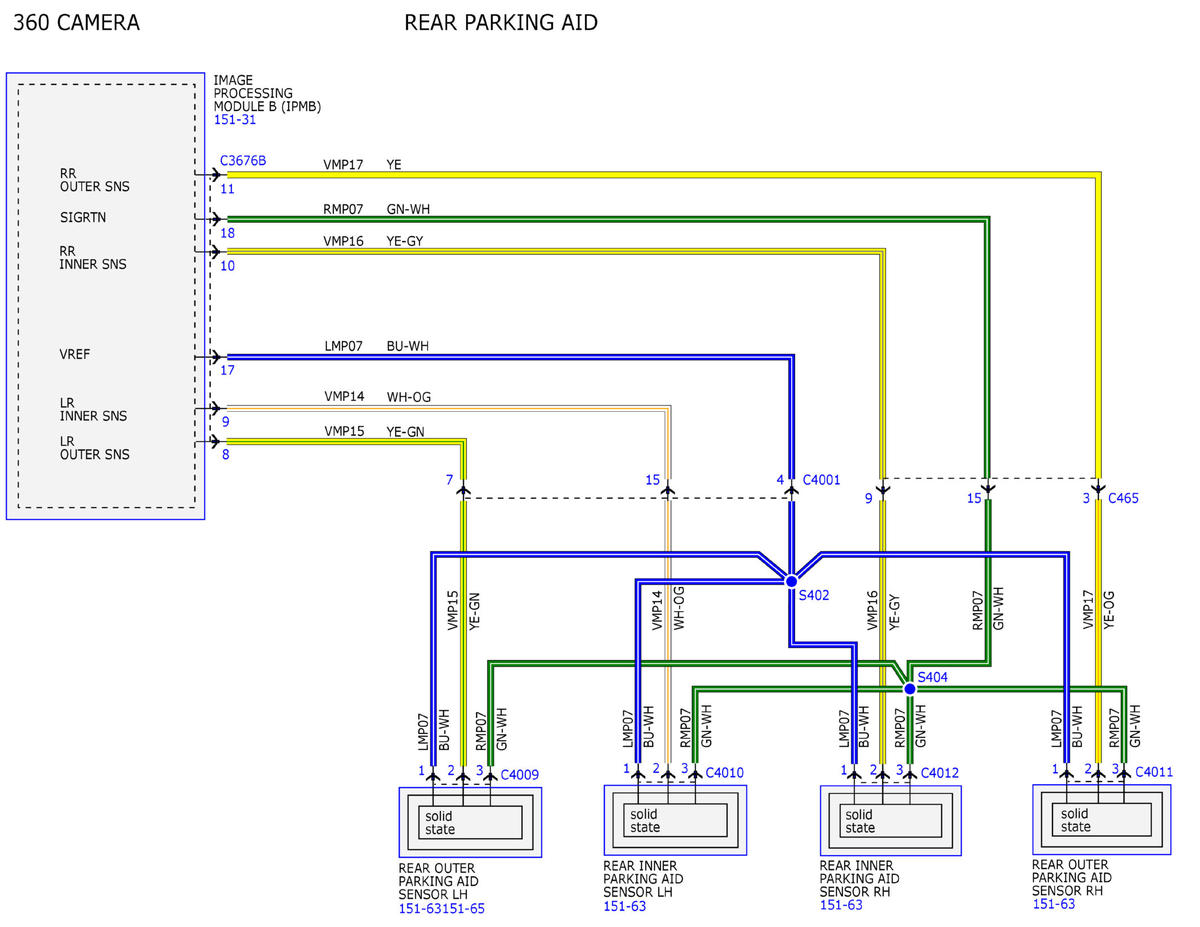

Fig 5: Parking Aid Wiring Diagram (5 Of 12)

GFDWR111039

Courtesy of FORD MOTOR COMPANY

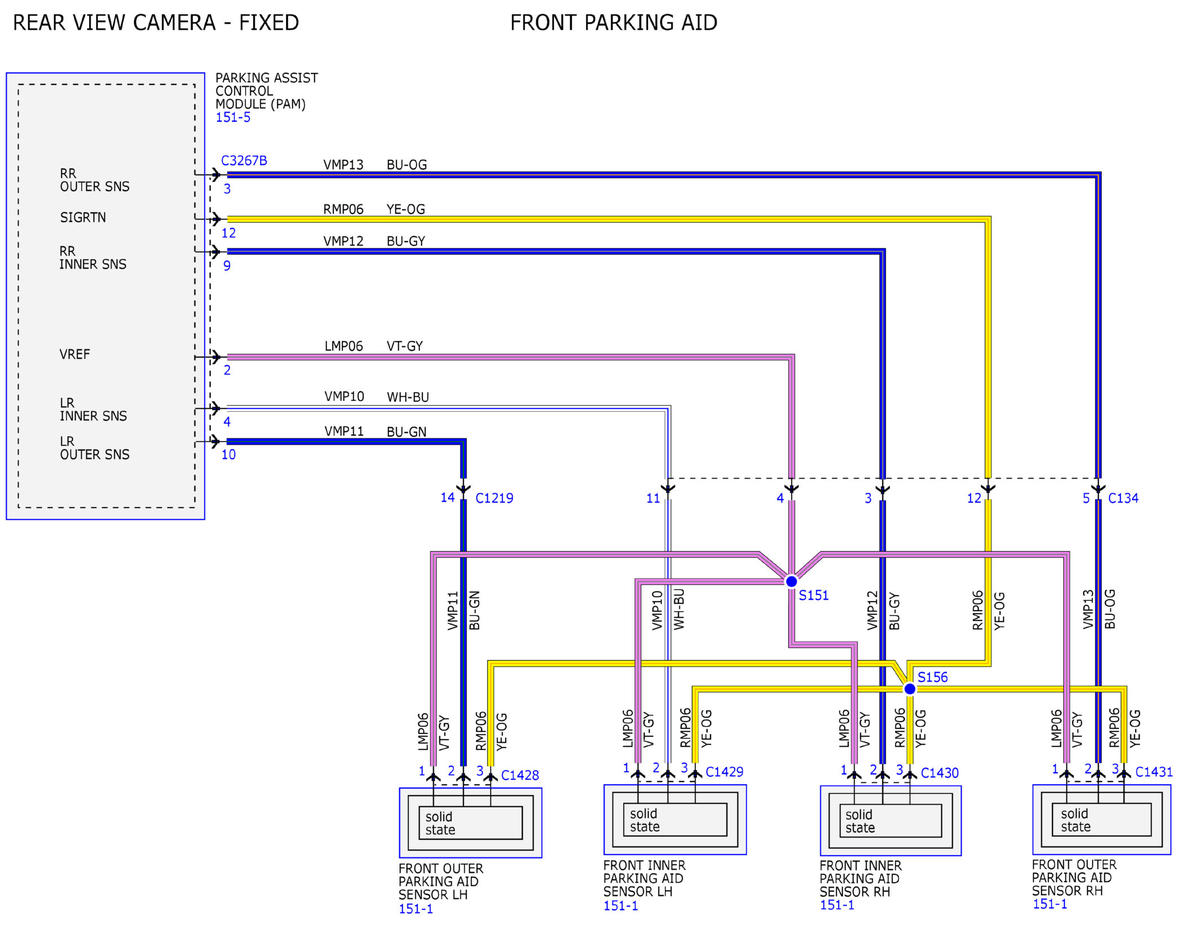

Fig 6: Parking Aid Wiring Diagram (6 Of 12)

GFDWR111040

Courtesy of FORD MOTOR COMPANY

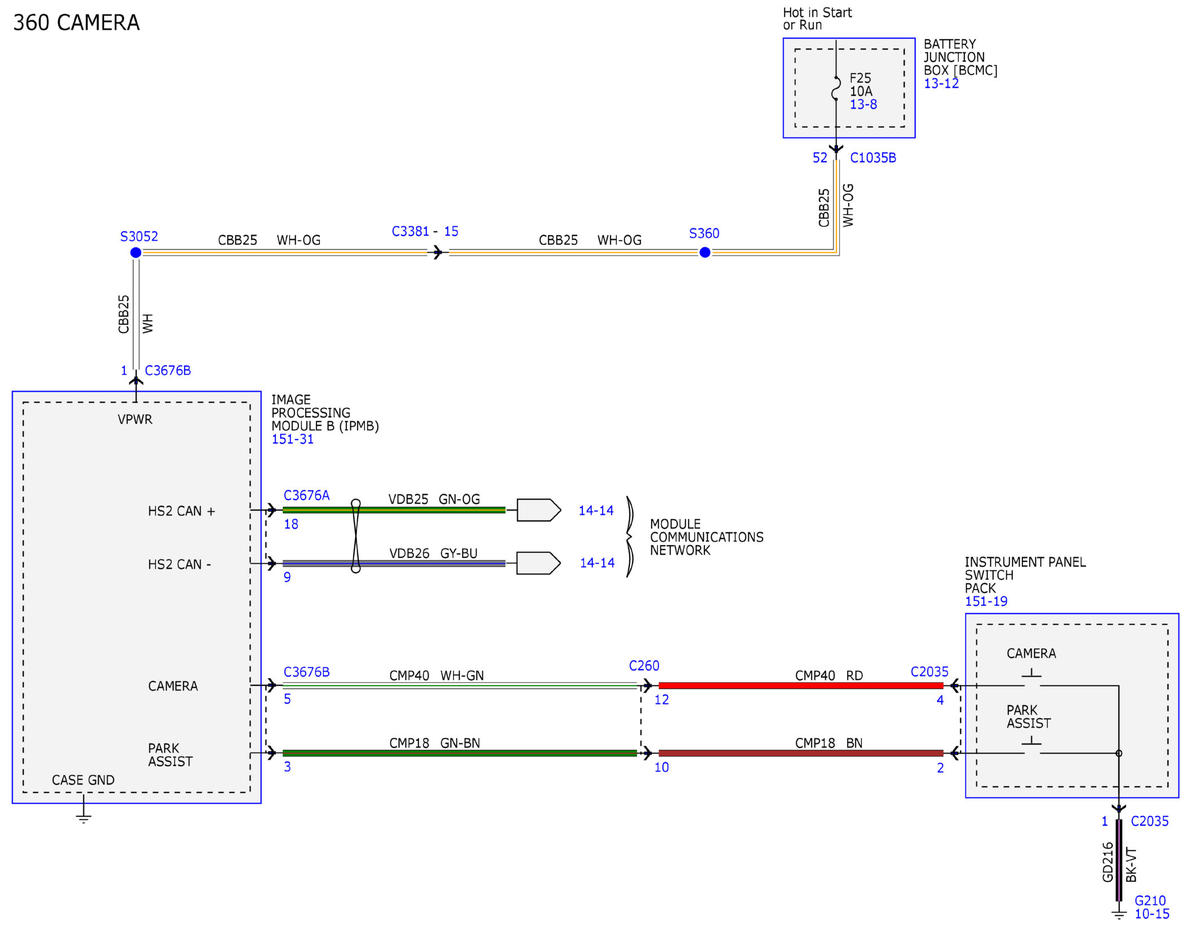

Fig 7: Parking Aid Wiring Diagram (7 Of 12)

GFDWR111041

Courtesy of FORD MOTOR COMPANY

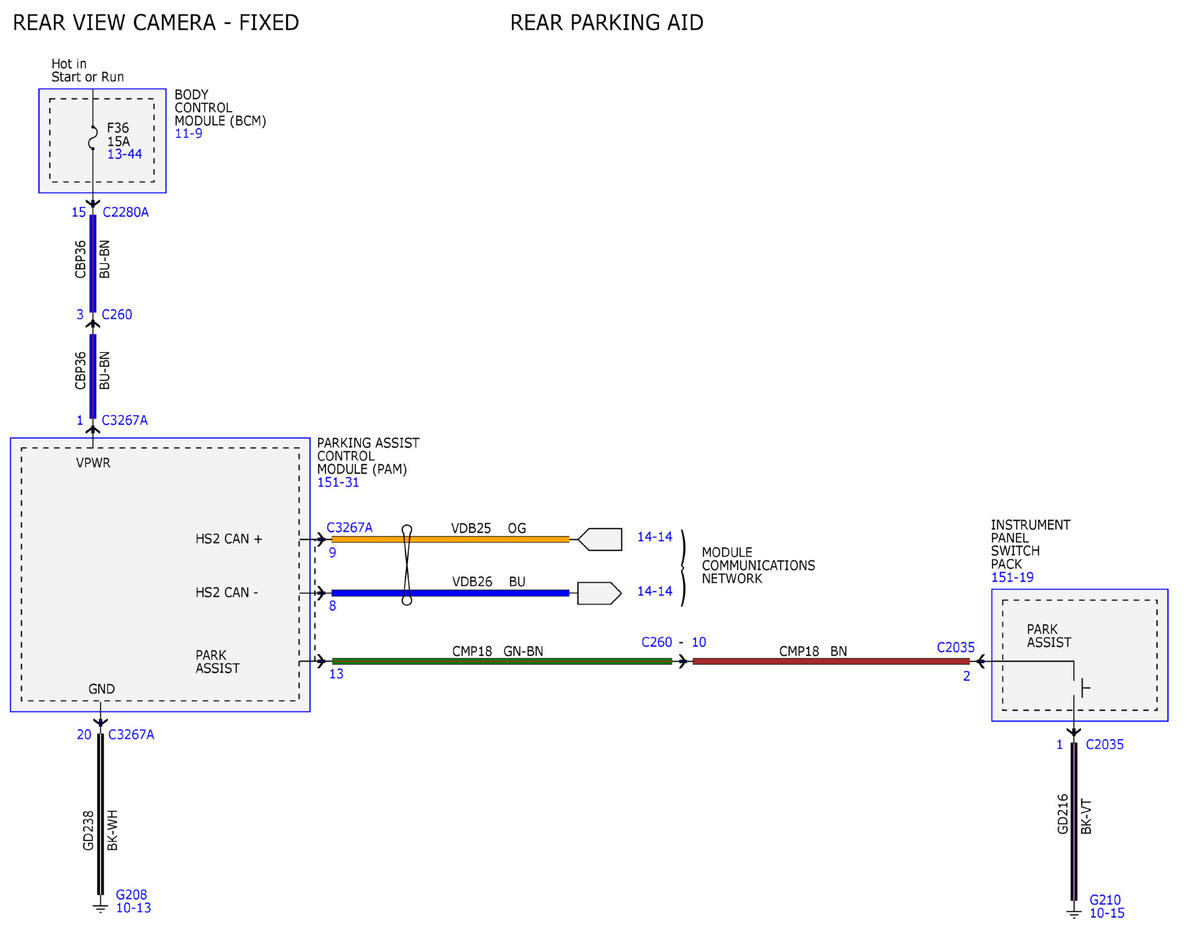

Fig 8: Parking Aid Wiring Diagram (8 Of 12)

GFDWR111042

Courtesy of FORD MOTOR COMPANY

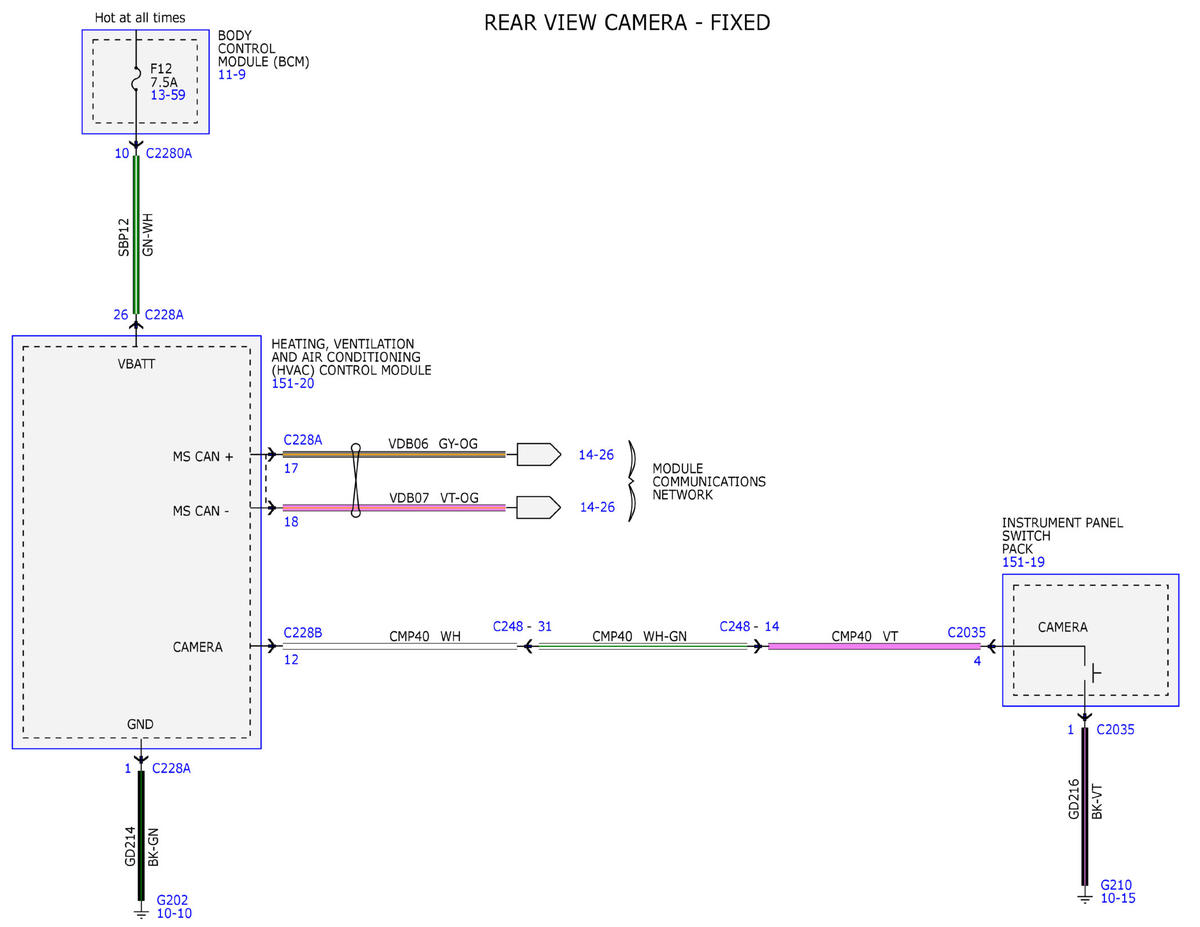

Fig 9: Parking Aid Wiring Diagram (9 Of 12)

GFDWR111043

Courtesy of FORD MOTOR COMPANY

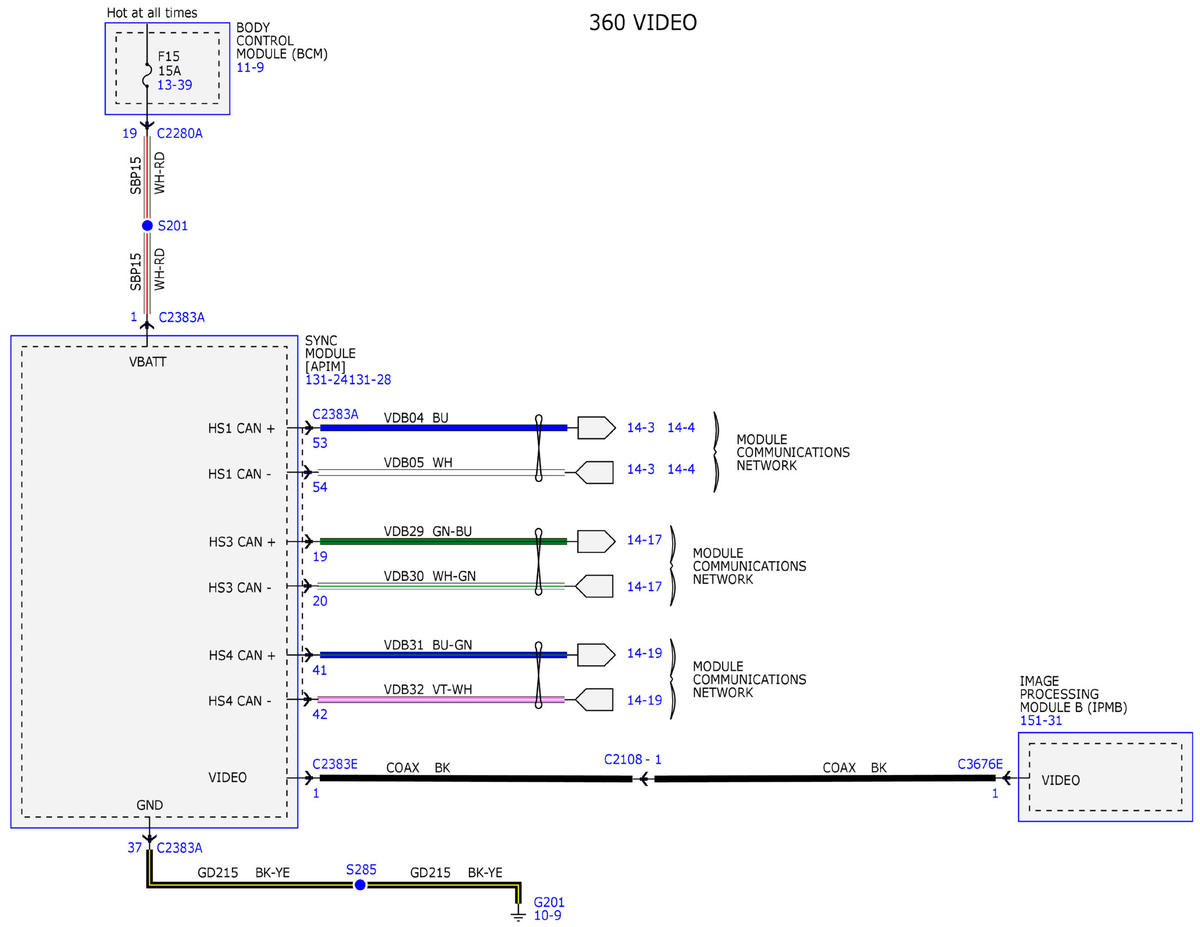

Fig 10: Parking Aid Wiring Diagram (10 Of 12)

GFDWR111044

Courtesy of FORD MOTOR COMPANY

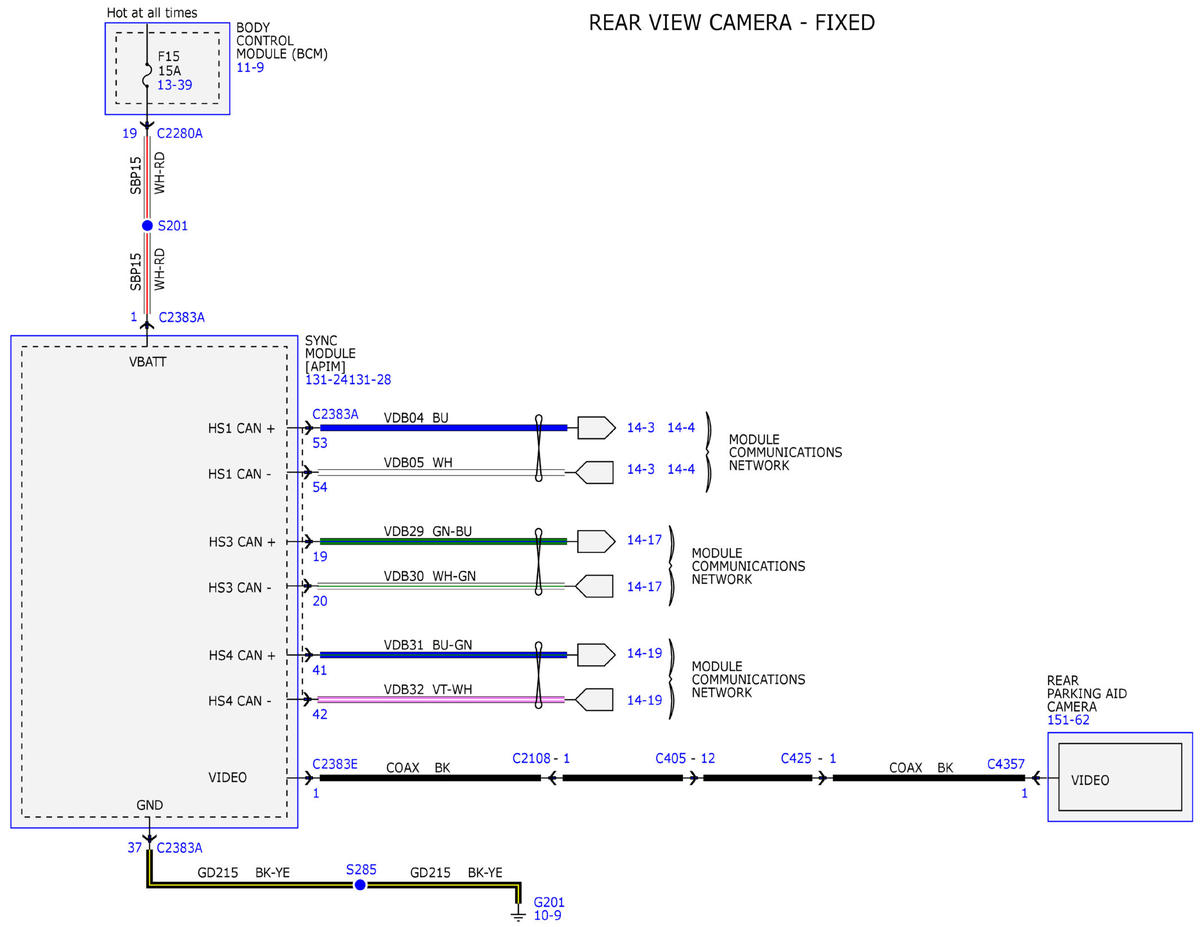

Fig 11: Parking Aid Wiring Diagram (11 Of 12)

GFDWR111045

Courtesy of FORD MOTOR COMPANY

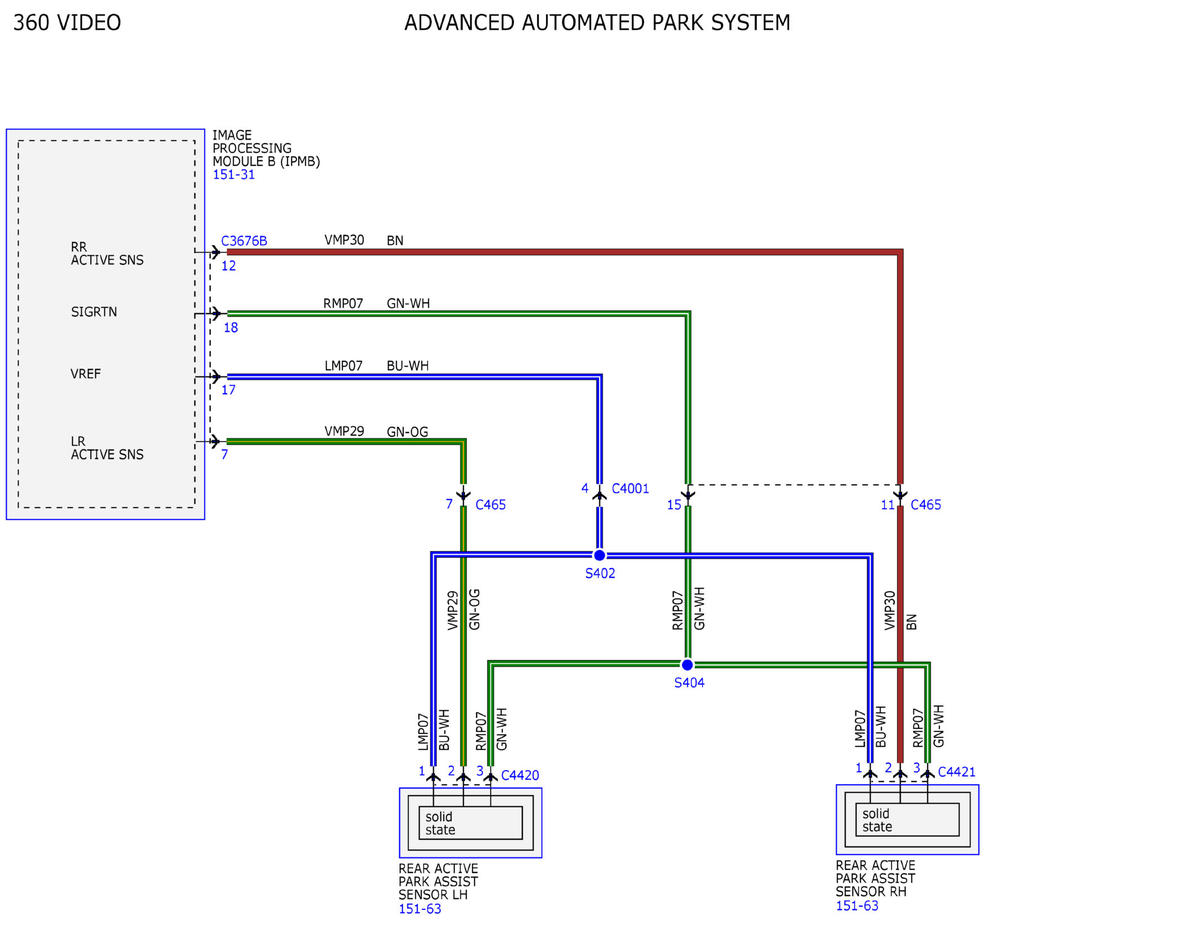

Fig 12: Parking Aid Wiring Diagram (12 Of 12)

GFDWR111046

Courtesy of FORD MOTOR COMPANY
