Parking Aid - Component Location

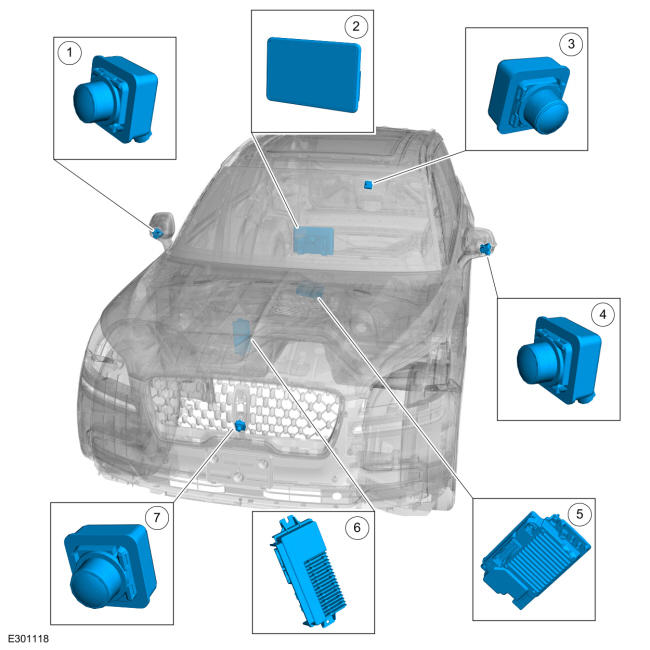

Component Location - Parking Aid Camera
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
RH side parking aid camera |
| 2 |
Audio system display |
| 3 |
Rear parking aid camera |
| 4 |
LH side parking aid camera |
| 5 |
APIM (rear only parking aid camera system) |
| 6 |
IPMB (360 degree view camera system) |
| 7 |
Front parking aid camera |
