Parking Assist Control Module (PAM): Removal

NOTE: If installing a new PAM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new PAM after installation.

Using a diagnostic scan tool, begin the PMI process for the PAM following the onscreen instructions.
Remove the front scuff plate trim panel. Refer to: Front Scuff Plate Trim Panel .

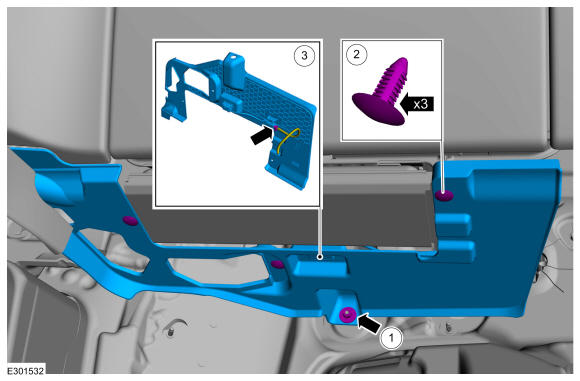

- Remove the nut, the pin-type retainers and the RH (right-hand) insulation panel.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

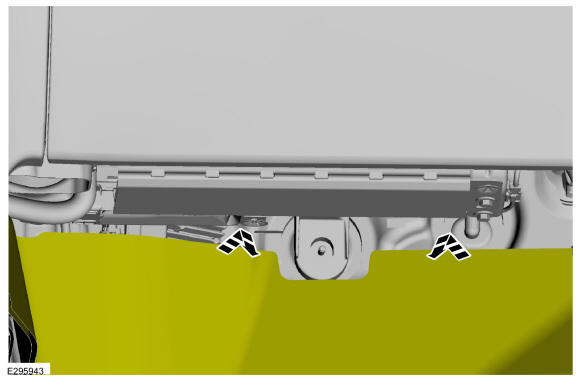

Position the carpet for access.

Courtesy of FORD MOTOR COMPANY

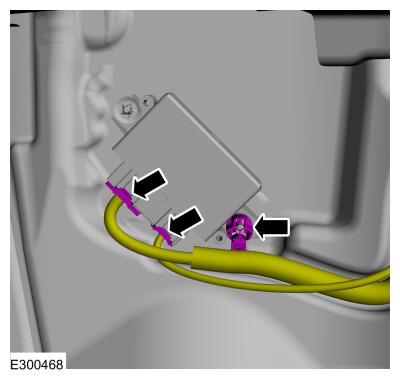

Disconnect the electrical connectors and position aside it.

Courtesy of FORD MOTOR COMPANY

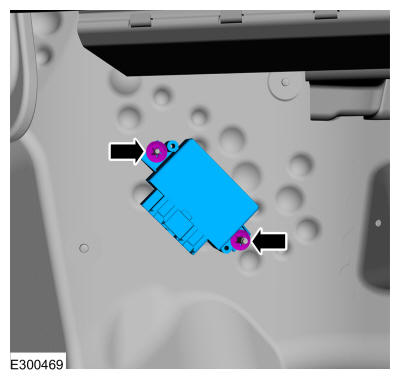

Remove the fasteners and the PAM.
Torque: 7 lb.in (0.8 Nm)

Courtesy of FORD MOTOR COMPANY
