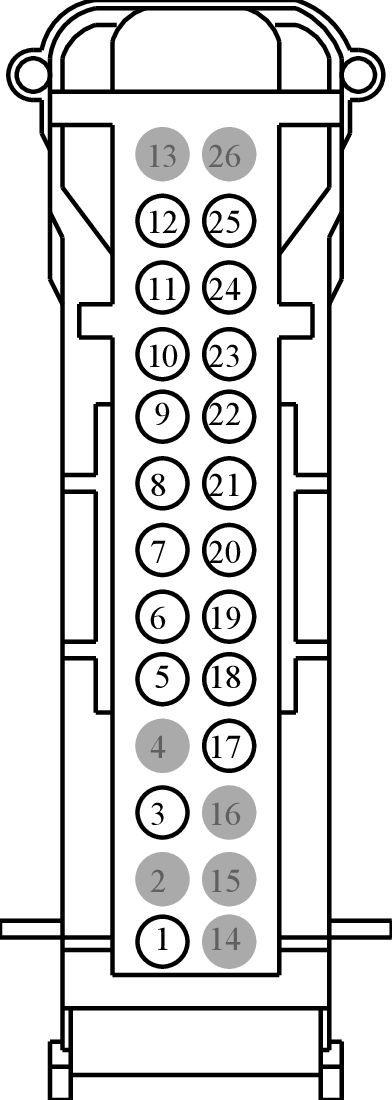

Connector End View C3676B - IMAGE PROCESSING MODULE B (IPMB)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3676B | IMAGE PROCESSING MODULE B (IPMB) | BK | 14A005 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB25 (WH) | 18 | FUSE - 25 OR CIRCUIT BREAKER | 2L1T-14474-LA | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | CMP18 (GN-BN) | 22 | SWITCH - PARKING AID | 2L1T-14474-AA | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | CMP40 (WH-GN) | 22 | SWITCH - CAMERA ENABLE | 2L1T-14474-AA | ||||
| 6 | RMP06 (YE-OG) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT - | 2L1T-14474-AA | ||||
| 7 | VMP29 (GN-OG) | 22 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR LEFT SIDE | 2L1T-14474-AA | ||||
| 8 | VMP15 (YE-GN) | 22 | SENSOR - PARKING AID # REAR # (LEFT OUTER) | 2L1T-14474-AA | ||||
| 9 | VMP14 (WH-OG) | 22 | SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE) | 2L1T-14474-AA | ||||
| 10 | VMP16 (YE-GY) | 22 | SENSOR - PARKING AID # REAR # (RIGHT INNER) | 2L1T-14474-AA | ||||
| 11 | VMP17 (YE) | 22 | SENSOR - PARKING AID # REAR # (RIGHT OUTER) | 2L1T-14474-AA | ||||
| 12 | VMP30 (BN) | 22 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR RIGHT SIDE | 2L1T-14474-AA | ||||
| 13 | * | * | Not Used | N/A | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | * | * | Not Used | N/A | ||||
| 16 | * | * | Not Used | N/A | ||||
| 17 | LMP07 (BU-WH) | 22 | CTRL MOD. - PARKING AID # SENSORS REAR + | 2L1T-14474-AA | ||||
| 18 | RMP07 (GN-WH) | 22 | CTRL MOD. - PARKING AID # SENSORS REAR - | 2L1T-14474-AA | ||||
| 19 | LMP06 (VT-GY) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT + | 2L1T-14474-AA | ||||
| 20 | VMP20 (GY-OG) | 22 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE | 2L1T-14474-AA | ||||
| 21 | VMP11 (BU-GN) | 22 | SENSOR - PARKING AID # FRONT # (LEFT OUTER) | 2L1T-14474-AA | ||||
| 22 | VMP10 (WH-BU) | 22 | SENSOR - PARKING AID # FRONT # (LEFT INNER) | 2L1T-14474-AA | ||||
| 23 | VMP12 (BU-GY) | 22 | SENSOR - PARKING AID # FRONT # (RIGHT INNER) | 2L1T-14474-AA | ||||
| 24 | VMP13 (BU-OG) | 22 | SENSOR - PARKING AID # FRONT # (RIGHT OUTER) | 2L1T-14474-AA | ||||
| 25 | VMP21 (WH-BN) | 22 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE | 2L1T-14474-AA | ||||
| 26 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1161
Service Part Number:
AU2Z-14S411-BCA
Gauge:
18
Pin material:
Tin (greased)
Cavities:
26
Vehicle Uses:
- Control Head - Electronic Automatic Temperature (EATC)
- Instrument Cluster
- Module - Driver Door
- Module - Liftgate
