Side Parking Aid Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.

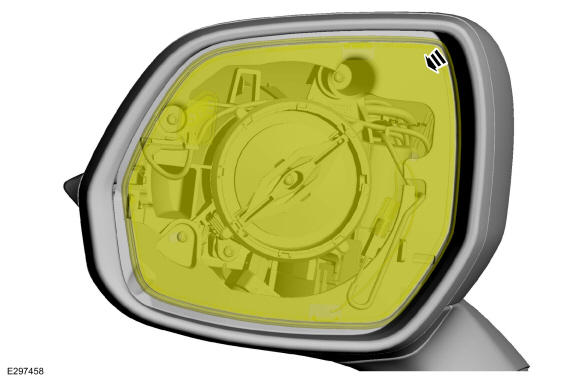

  1. Position the upper inner corner of the exterior mirror glass in.
    GFD533706Courtesy of FORD MOTOR COMPANY

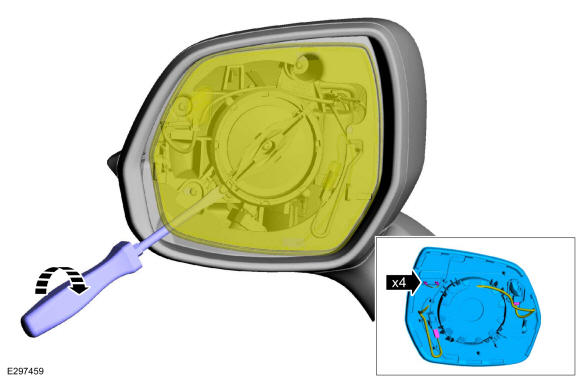

  2. Separate the exterior mirror glass, disconnect the electrical connectors and remove the exterior mirror glass.
    GFD533707Courtesy of FORD MOTOR COMPANY

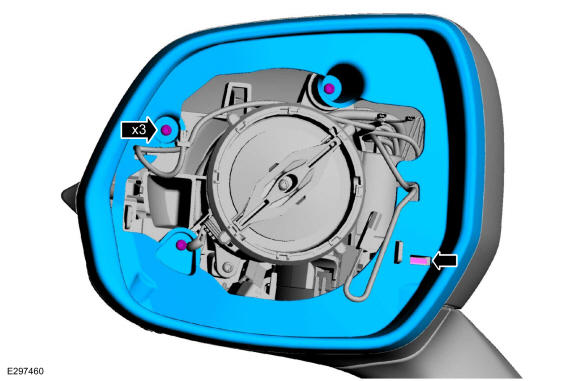

  3. Remove the screws, release the tab and remove the exterior mirror bezel.
    GFD533708Courtesy of FORD MOTOR COMPANY

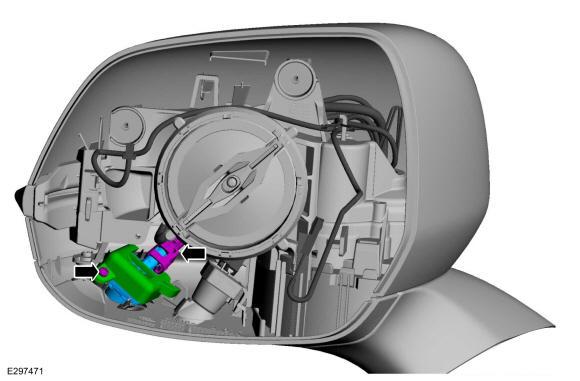

  4. Remove the screw, the bracket, disconnect the connector and remove the camera.
GFD533709Courtesy of FORD MOTOR COMPANY
