Rear Parking Aid Camera: Removal
- Remove the reversing lamp. Refer to: Reversing Lamp .

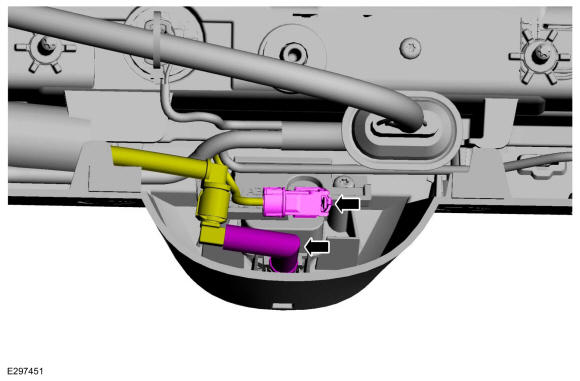

- Disconnect the rear view camera washer hose and the rear view camera electrical connector.

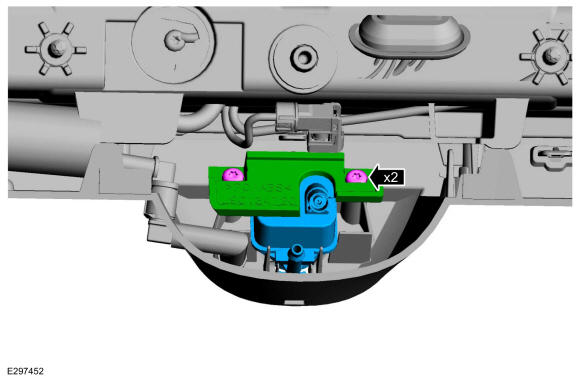

- Remove the screw, the rear view camera bracket and the rear view camera/washer as an assembly.

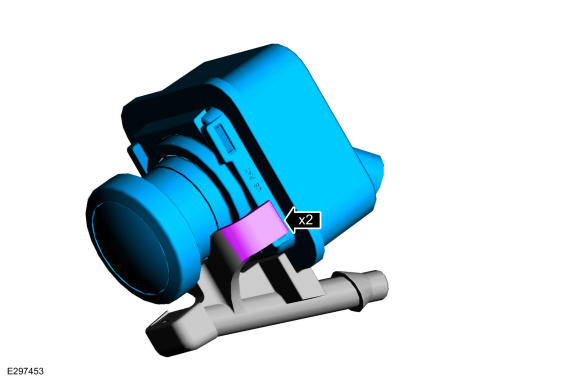

- Release the tabs and remove the rear view camera from the washer nozzle.
