Front Parking Aid Camera: Removal
- Remove the front bumper cover. Refer to: Front Bumper Cover .

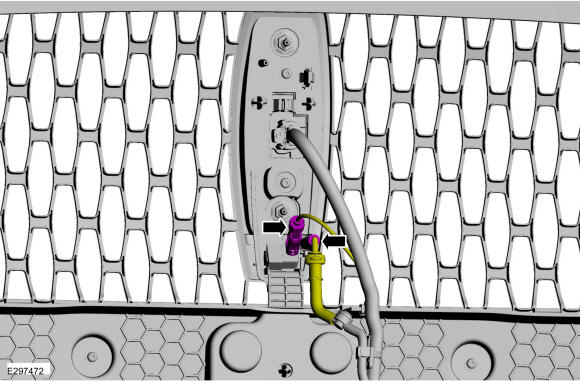

- Disconnect the front camera coaxial cable connector and the front camera washer hose.

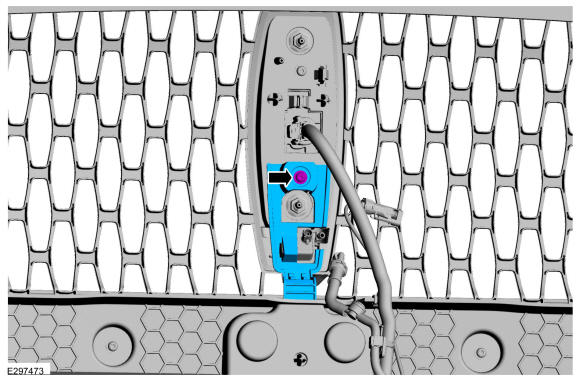

- Remove the screw and the camera bracket.

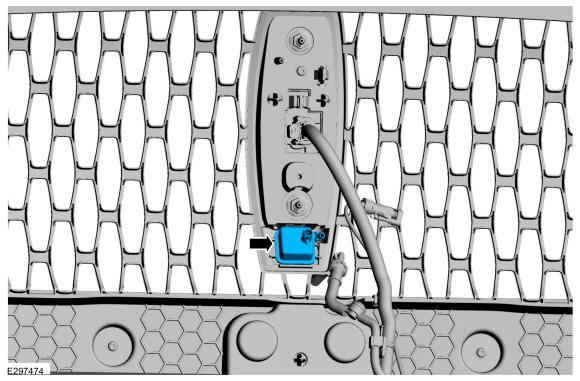

- Remove the camera and washer nozzle as an assembly.

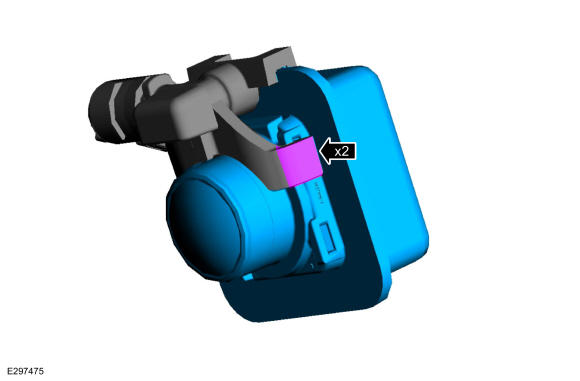

- Release the tabs and remove the camera washer nozzle.
