Cluster And Panel Illumination

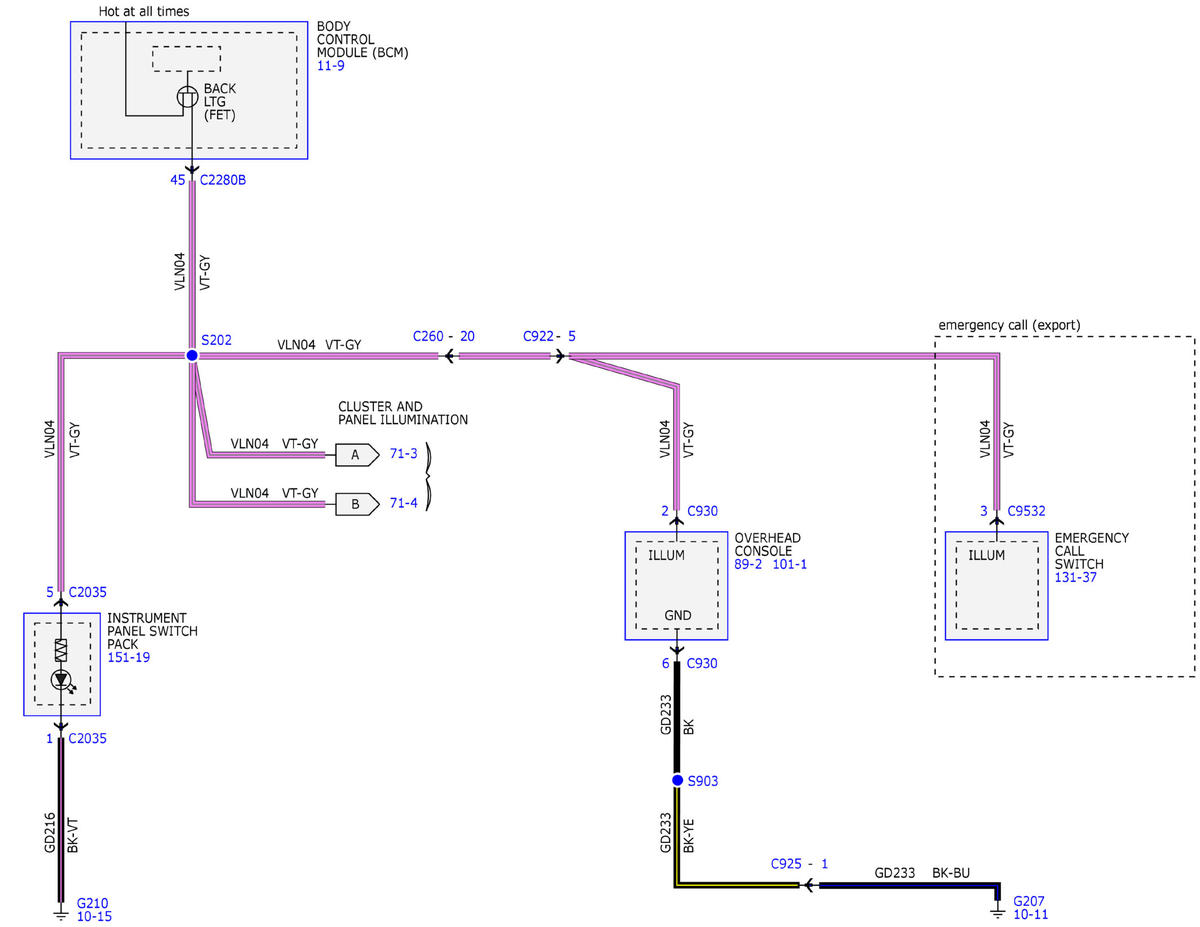

Fig 1: Cluster And Panel Illumination Wiring Diagram (1 Of 11)
GFDWR110881Courtesy of FORD MOTOR COMPANY

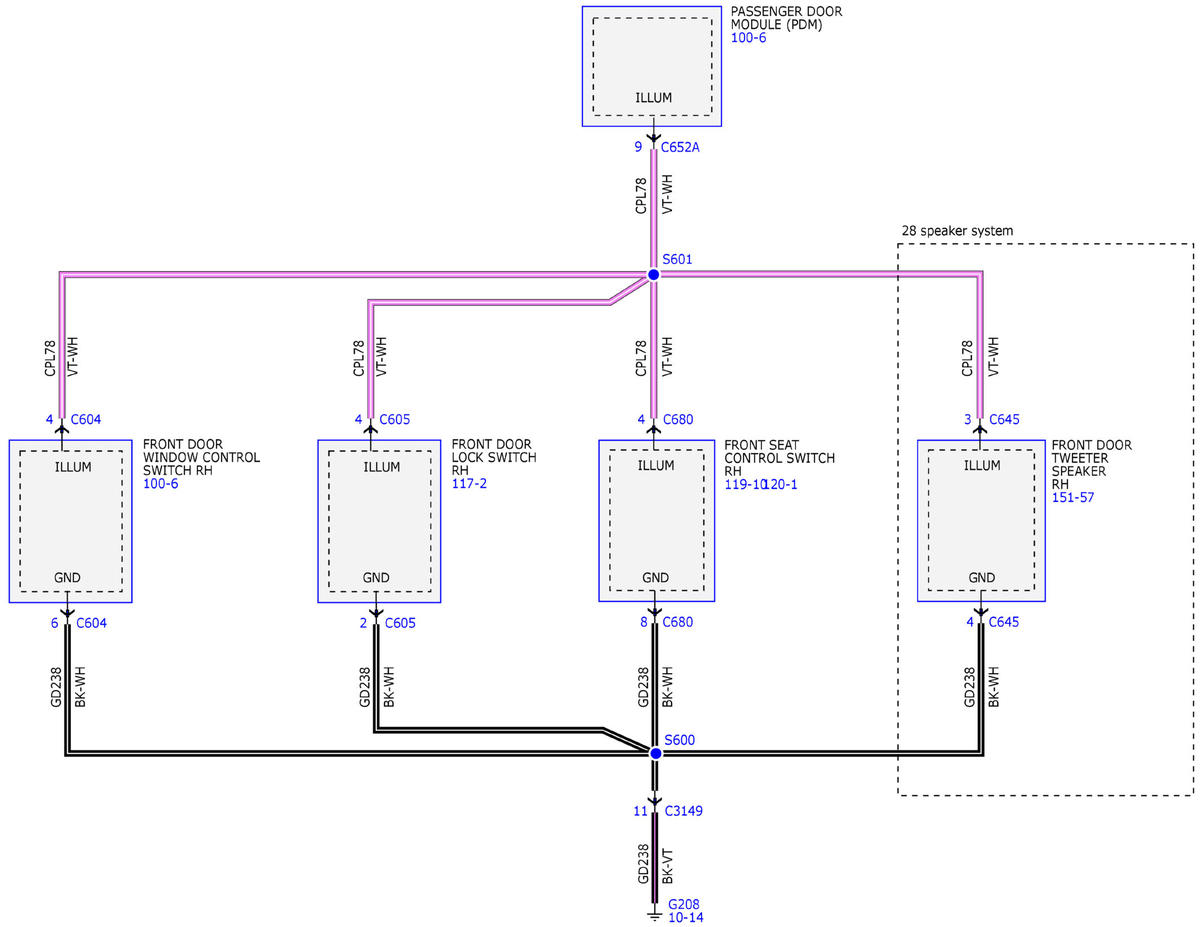

Fig 2: Cluster And Panel Illumination Wiring Diagram (2 Of 11)
GFDWR110882Courtesy of FORD MOTOR COMPANY

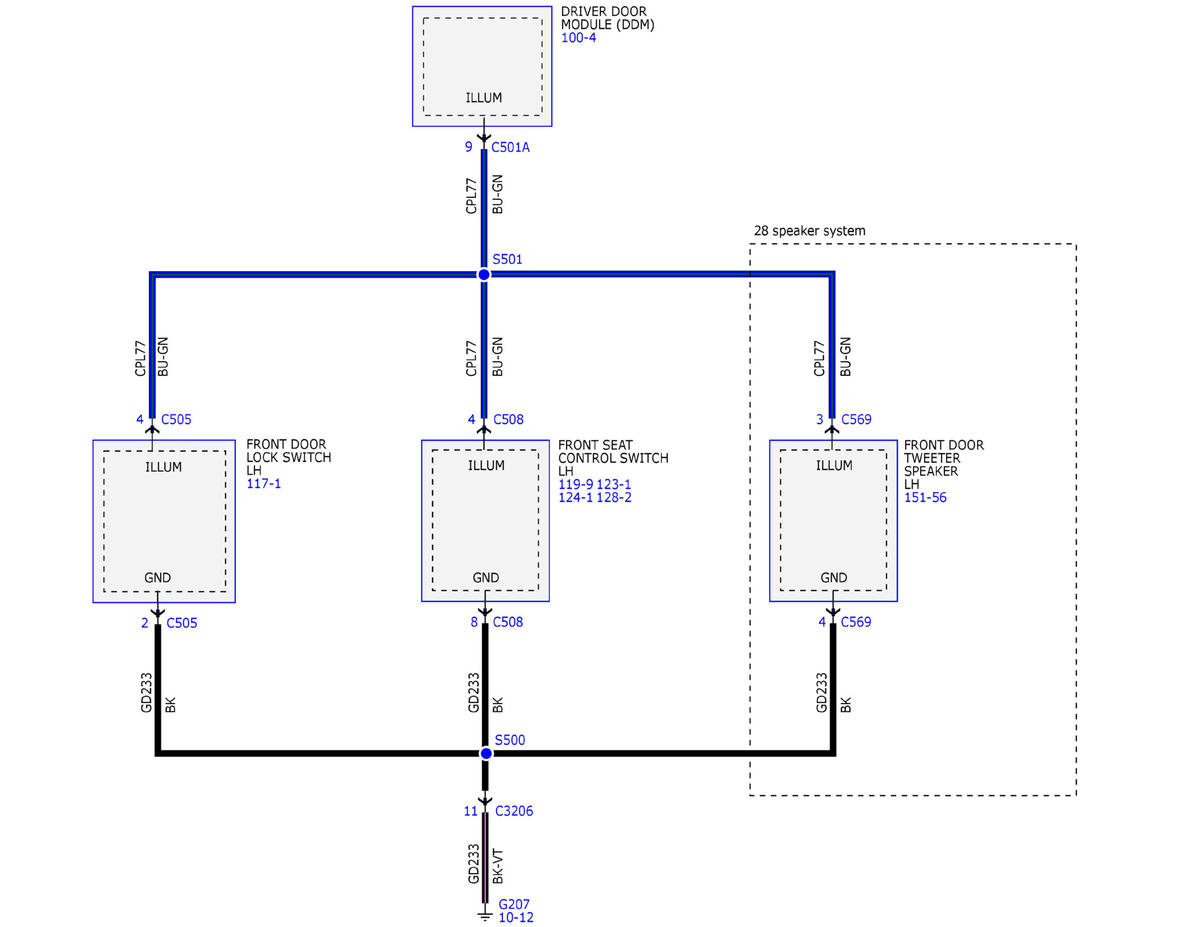

Fig 3: Cluster And Panel Illumination Wiring Diagram (3 Of 11)
GFDWR110883Courtesy of FORD MOTOR COMPANY

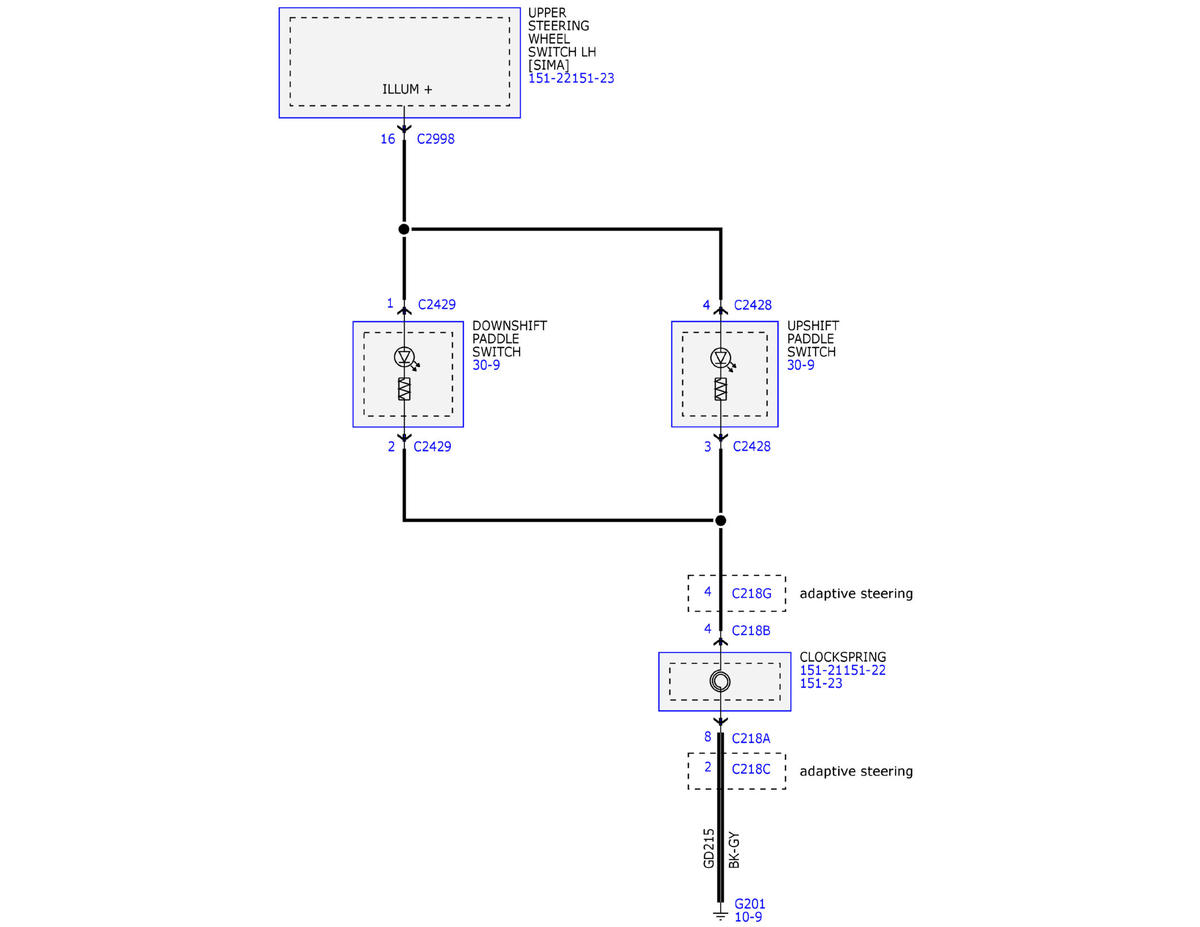

Fig 4: Cluster And Panel Illumination Wiring Diagram (4 Of 11)
GFDWR110884Courtesy of FORD MOTOR COMPANY

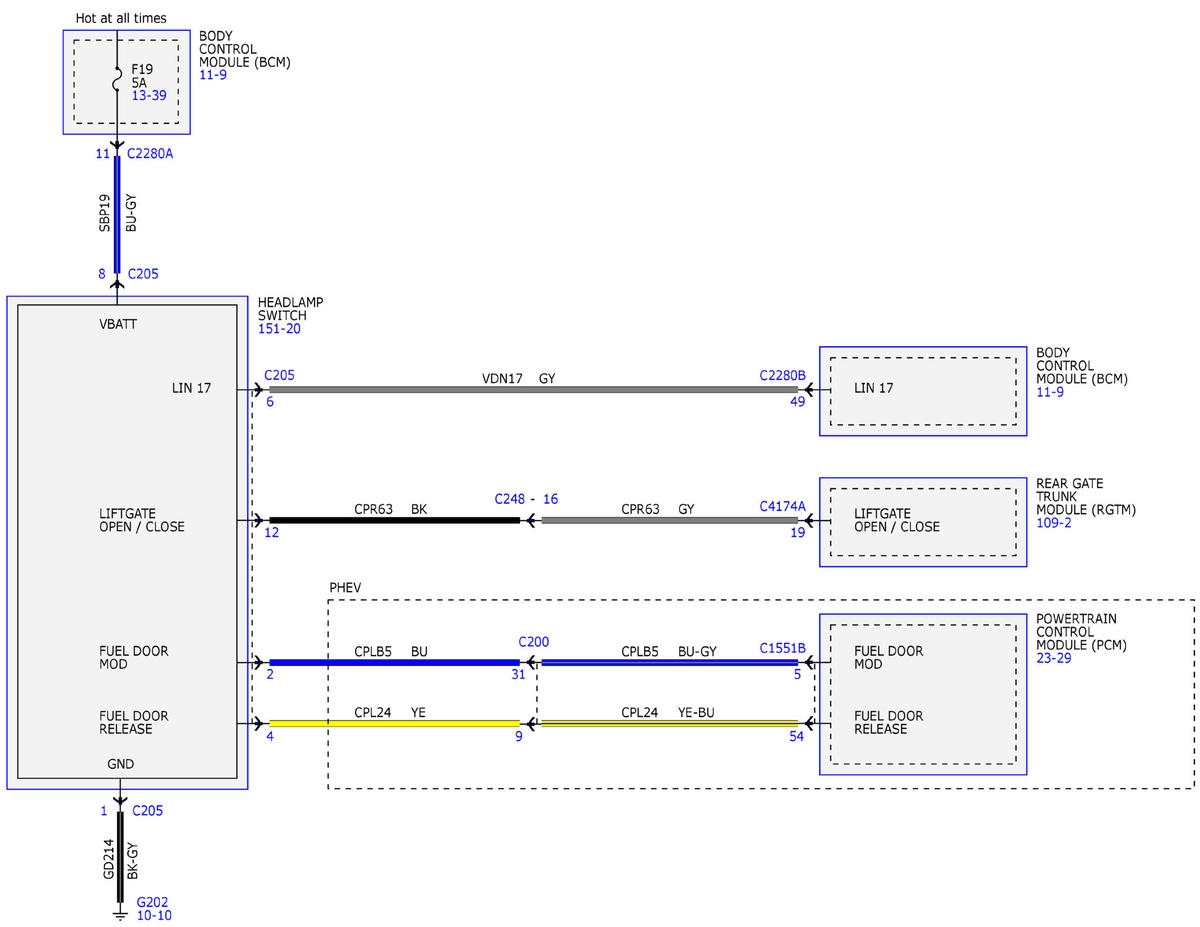

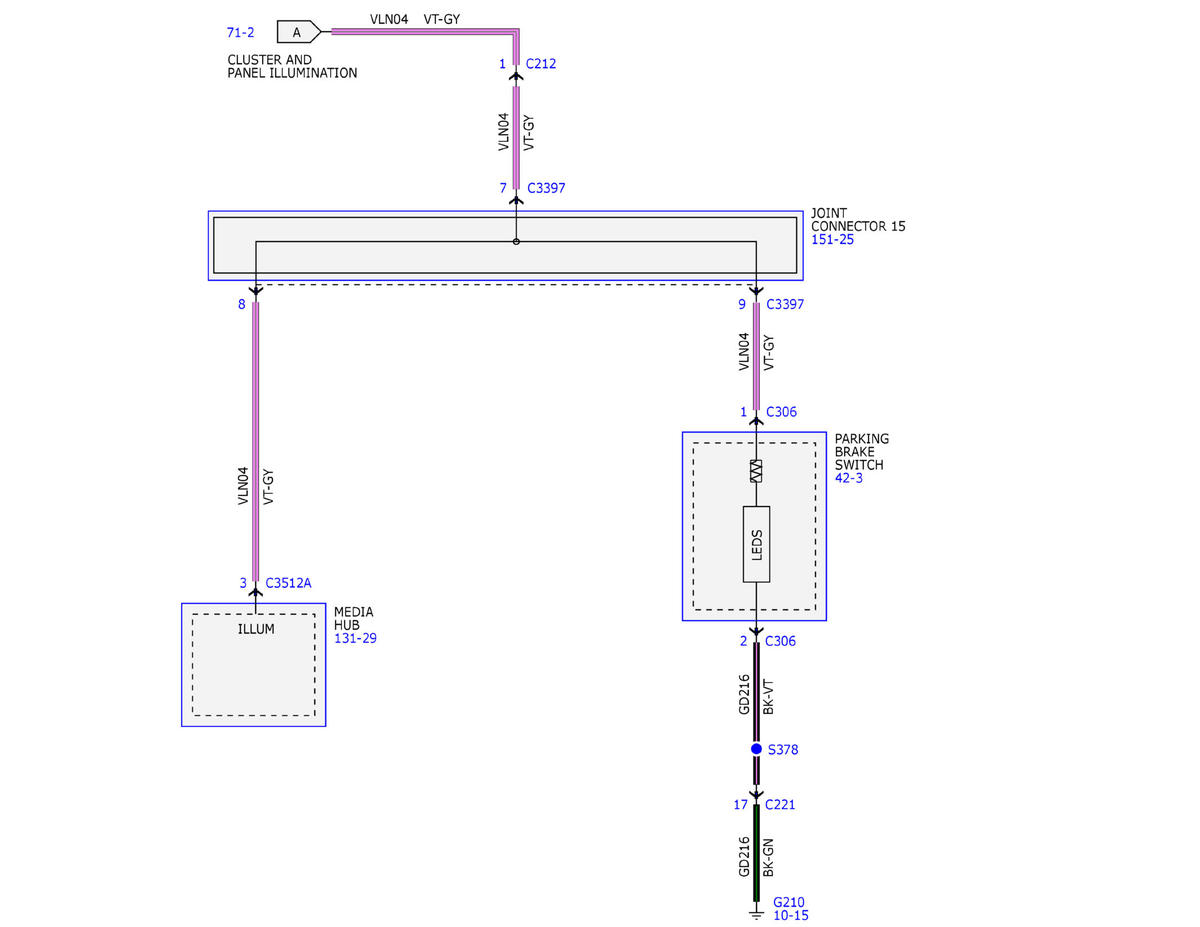

Fig 5: Cluster And Panel Illumination Wiring Diagram (5 Of 11)
GFDWR110885Courtesy of FORD MOTOR COMPANY

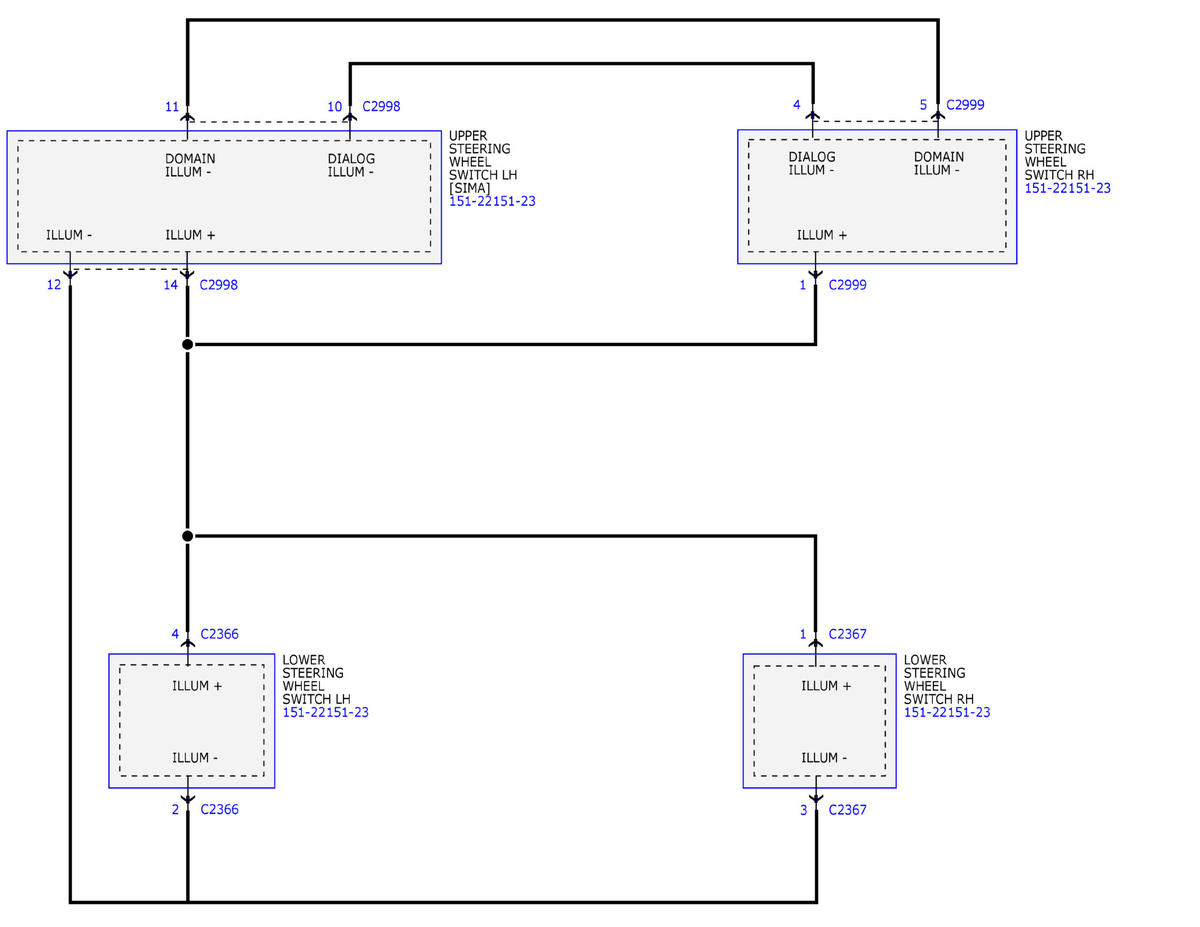

Fig 6: Cluster And Panel Illumination Wiring Diagram (6 Of 11)
GFDWR110886Courtesy of FORD MOTOR COMPANY
Fig 7: Cluster And Panel Illumination Wiring Diagram (7 Of 11)
GFDWR110887Courtesy of FORD MOTOR COMPANY

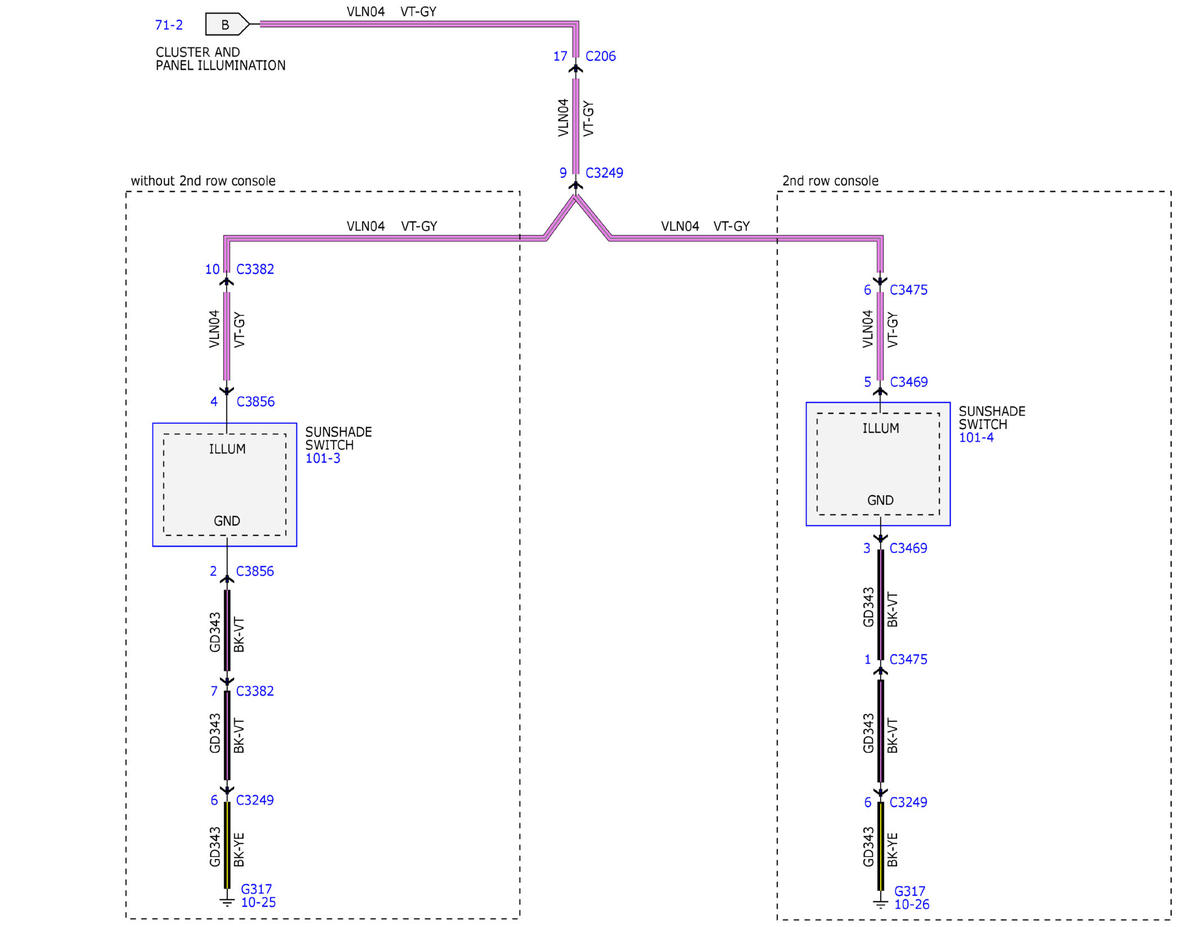

Fig 8: Cluster And Panel Illumination Wiring Diagram (8 Of 11)
GFDWR110888Courtesy of FORD MOTOR COMPANY

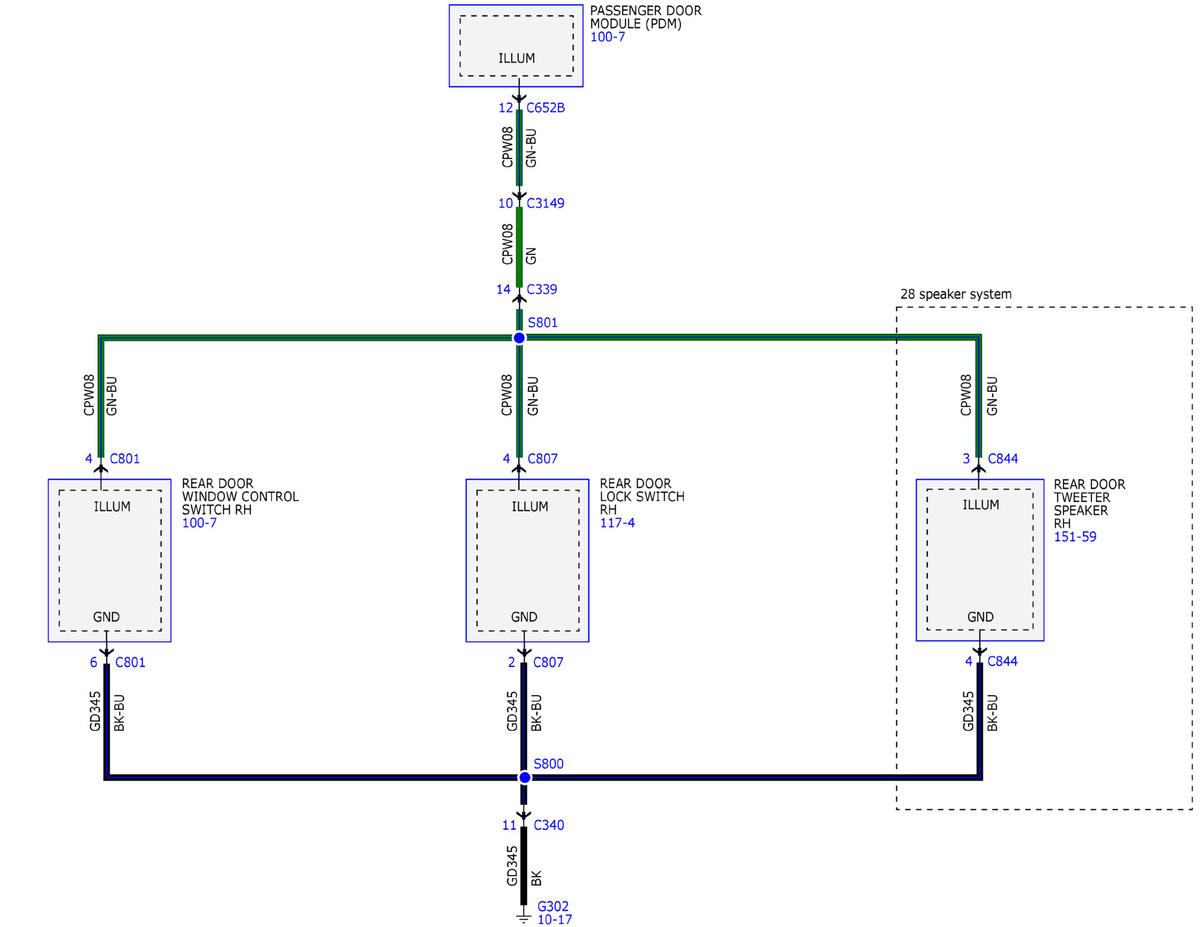

Fig 9: Cluster And Panel Illumination Wiring Diagram (9 Of 11)
GFDWR110889Courtesy of FORD MOTOR COMPANY

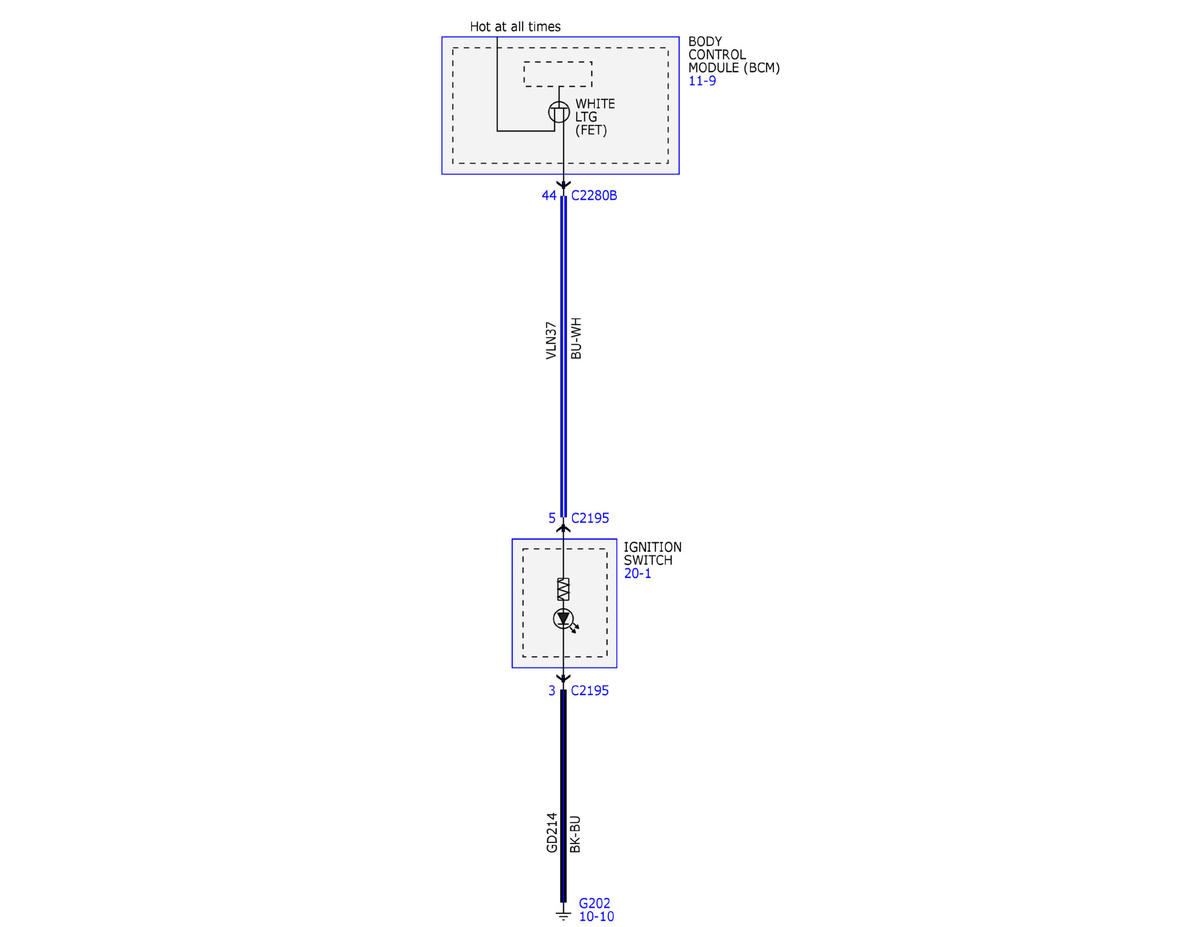

Fig 10: Cluster And Panel Illumination Wiring Diagram (10 Of 11)
GFDWR110890Courtesy of FORD MOTOR COMPANY

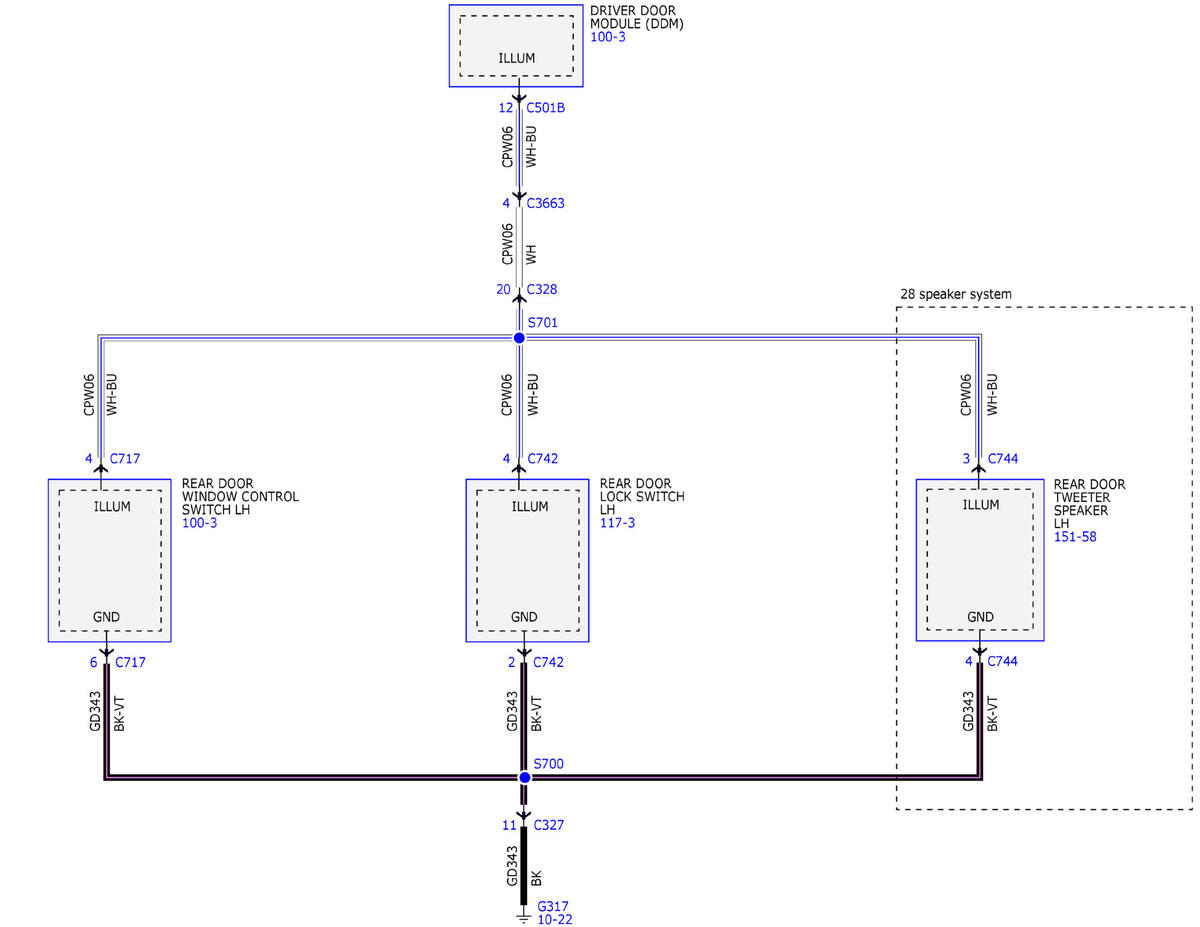

Fig 11: Cluster And Panel Illumination Wiring Diagram (11 Of 11)
GFDWR110891Courtesy of FORD MOTOR COMPANY
