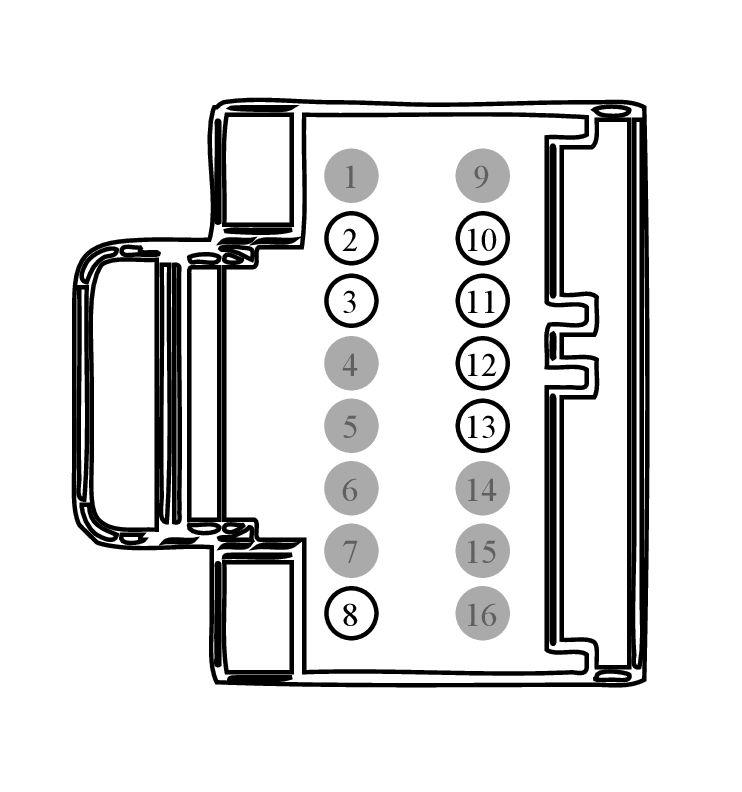

Connector End View C220 - INSTRUMENT PANEL CLUSTER (IPC)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C220	INSTRUMENT PANEL CLUSTER (IPC)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64
9U5T-14474-EB	DU2Z-14474-AA	0.64
9U5T-14474-YB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	RMC32 (GN-BU)	22	CTRL MOD. - SENSOR FUEL LEVEL	9U5T-14474-DB
3	GD214 (BK-GN)	18	GROUND - INSTRUMENT PANEL STRUCTURE	9U5T-14474-EB
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	SBP13 (GY-RD)	18	FUSE - 13 OR CIRCUIT BREAKER	9U5T-14474-EB
9	*	*	Not Used	N/A
10	VMC11 (YE-VT)	22	SENSOR - FUEL LEVEL (FLI)	9U5T-14474-DB
11	CMC20 (GY)	26	SWITCH - LOW LEVEL WASHER FLUID	9U5T-14474-YB
12	VDB29 (GN)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	9U5T-14474-YB
13	VDB30 (WH)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	9U5T-14474-YB
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1560

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-APA

Gauge:

20

Pin material:

Tin

Cavities:

16

Vehicle Uses:

• Instrument Cluster
• Module - Seat Memory
• Module - Upfitter Interface
• Radio - Amplifier
