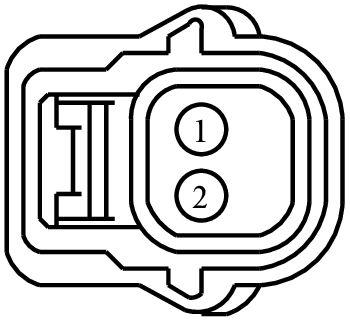

Connector End View C138 - WINDSHIELD WASHER FLUID LEVEL SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C138	WINDSHIELD WASHER FLUID LEVEL SENSOR	BK	13A840	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-RA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CMC20 (GY)	20	SWITCH - LOW LEVEL WASHER FLUID	3F2T-14474-RA
2	GD123 (BK-YE)	20	GROUND - FENDER FRONT LEFT # 5TH POINT	3F2T-14474-RA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1314

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-AAC

Gauge:

20

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Crash (Engine Compartment)
• Sensor - Seat Track Position
• Sensor - Side Impact
• Solenoid - Down Shift
• Solenoid - Torque Control Coupling
• Valve - Heated PCV
• Valve - Heater Core Shut Off
• Valve - Transmission Fluid Warmer
