Head Up Display (HUD) - Overview: HUD

Courtesy of FORD MOTOR COMPANY

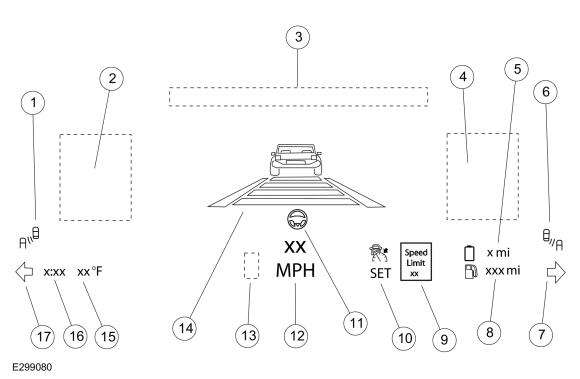

Item	Description
1	NOTE: The LHBLIS indication only appears when the turn signal is activated. LHBLIS indicator
2	Navigation display area
3	Phone and audio information display area
4	HUD adjustments Stop and go indication
5	Electric Vehicle (EV) drive range
6	NOTE: The RHBLIS indication only appears when the turn signal is activated. RHBLIS indication
7	RH turn signal indication
8	DTE and low fuel indication
9	Speed limit sign display
10	Cruise control/ACC indicator and set speed display
11	Lane centering assist indication
12	Digital speedometer
13	Transmission range indication
14	ACC follow and gap setting display Lane keep assist and lane departure display Distance alert indication display
15	Outside air temperature display
16	Clock display
17	LH turn signal indication

The following items displayed in the HUD can be turned on or off using the setup menu.

Fuel information, time and outside air temperature.
Cruise control and lane keeping system
- cruise control only
- cruise control and lane keeping system

The HUD setup menu allows the driver to set up the following:

HUD brightness (level 1-13)

HUD position
- vertical
- image rotation

When an item that is displayed in the IPC is selected on in the HUD, the selected item is turned off in the IPC, except for the speedometer, which is reduced to a minimized display format. For all details about the HUD functionality and the display setup, refer to the Owner's Literature.

The HUD displays the following information:

Active driver assist system
- ACC
- Lane keeping
- Distance alert
- Lane centering assist
- Speed sign
- Stop and go
Audio information
BLIS
Clock
Digital speedometer
DTE
Electric Vehicle (EV) drive range
Forward collision warning
Low fuel indication
Navigation
Outside air temperature
Phone call information
Set speed limit
Speed sign
Transmission range selection indication
LH and RH turn
