Supplemental Restraint System

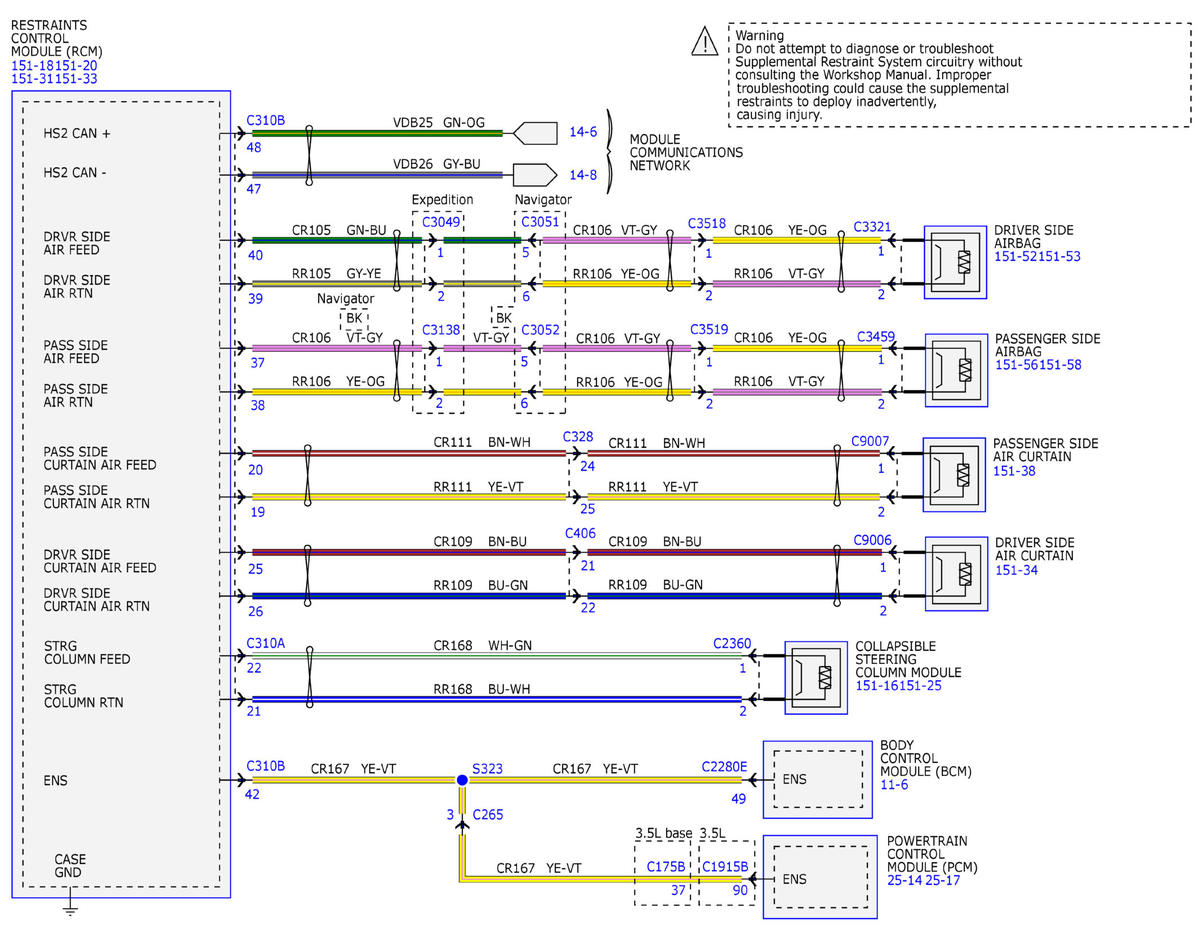

Fig 1: Supplemental Restraint System Wiring Diagram (1 Of 11)
GFDWR115870Courtesy of FORD MOTOR COMPANY

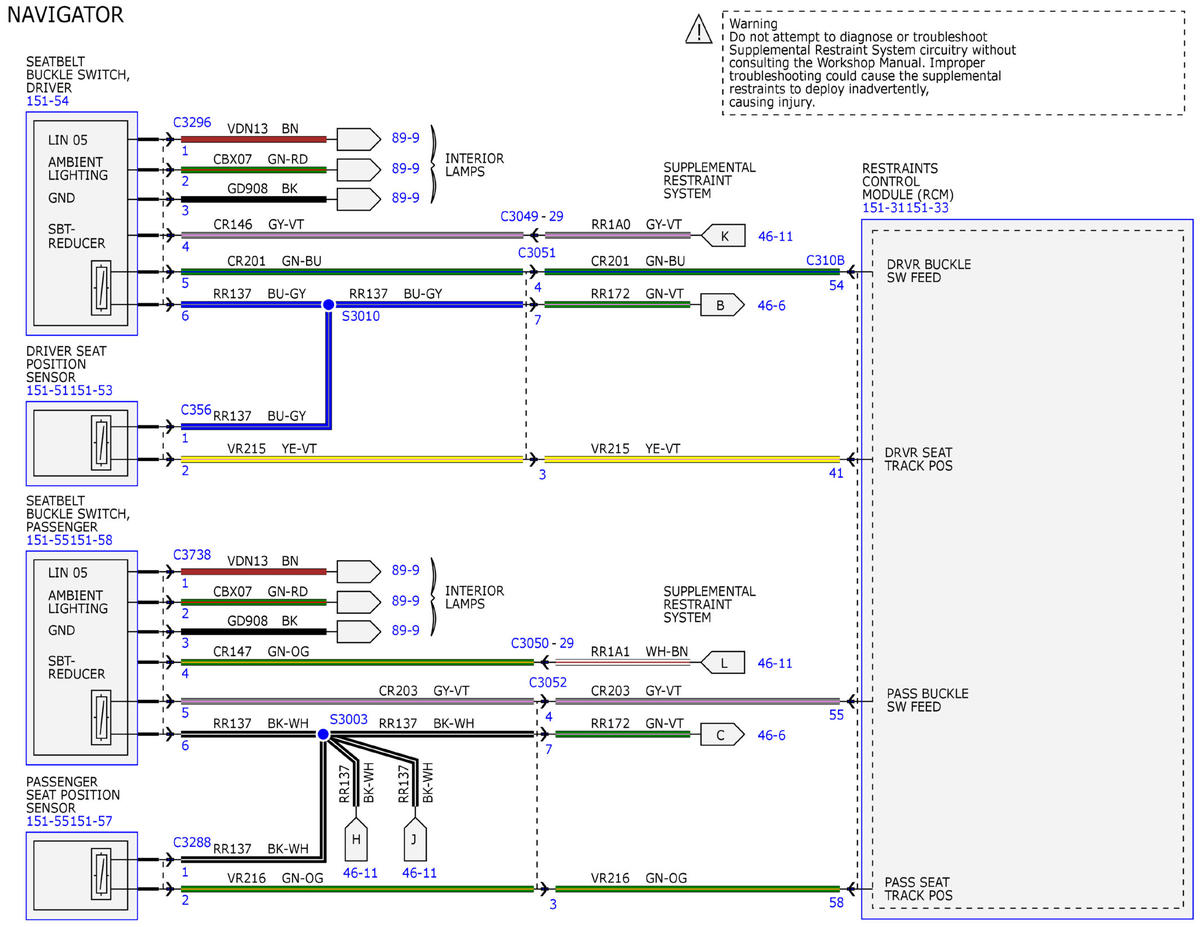

Fig 2: Supplemental Restraint System Wiring Diagram (2 Of 11)
GFDWR115871Courtesy of FORD MOTOR COMPANY

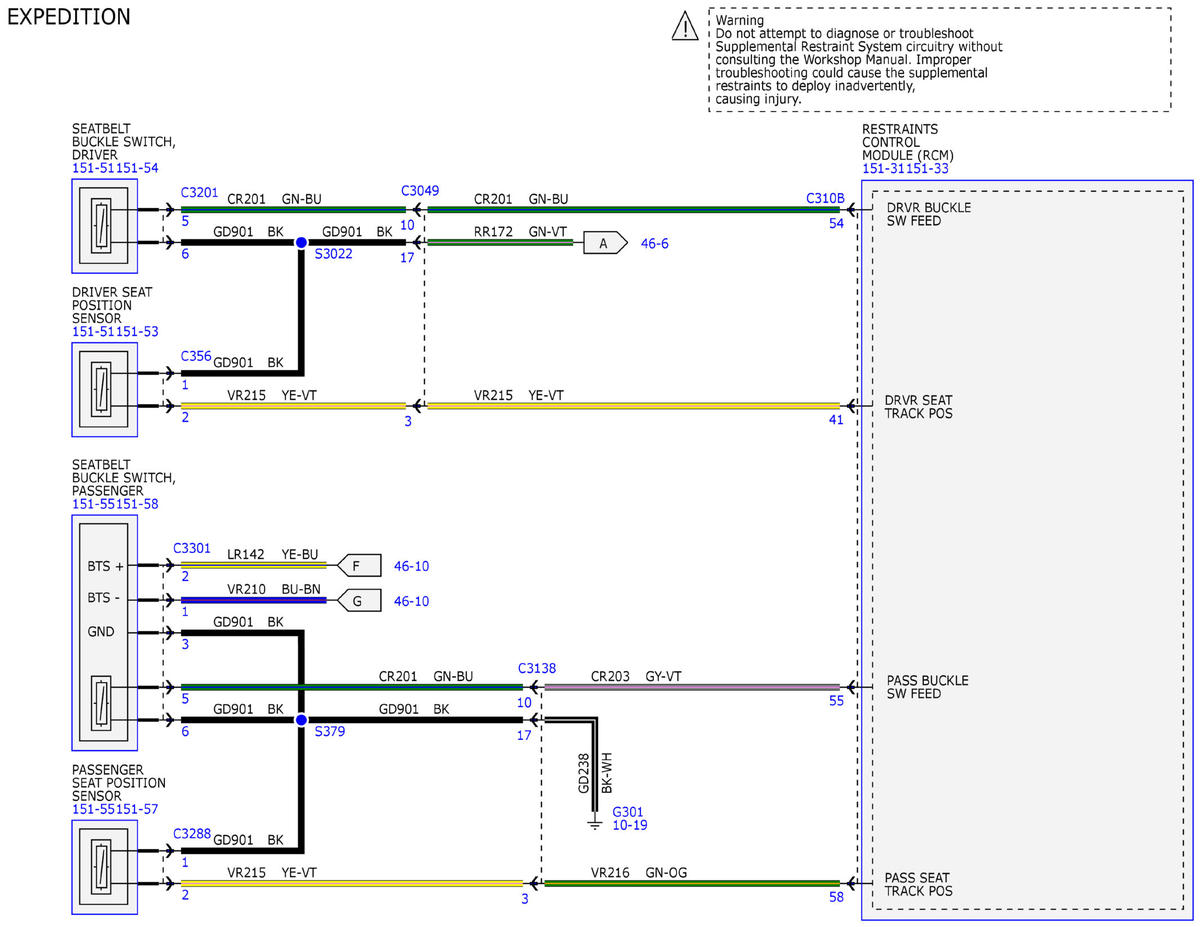

Fig 3: Supplemental Restraint System Wiring Diagram (3 Of 11)
GFDWR115872Courtesy of FORD MOTOR COMPANY

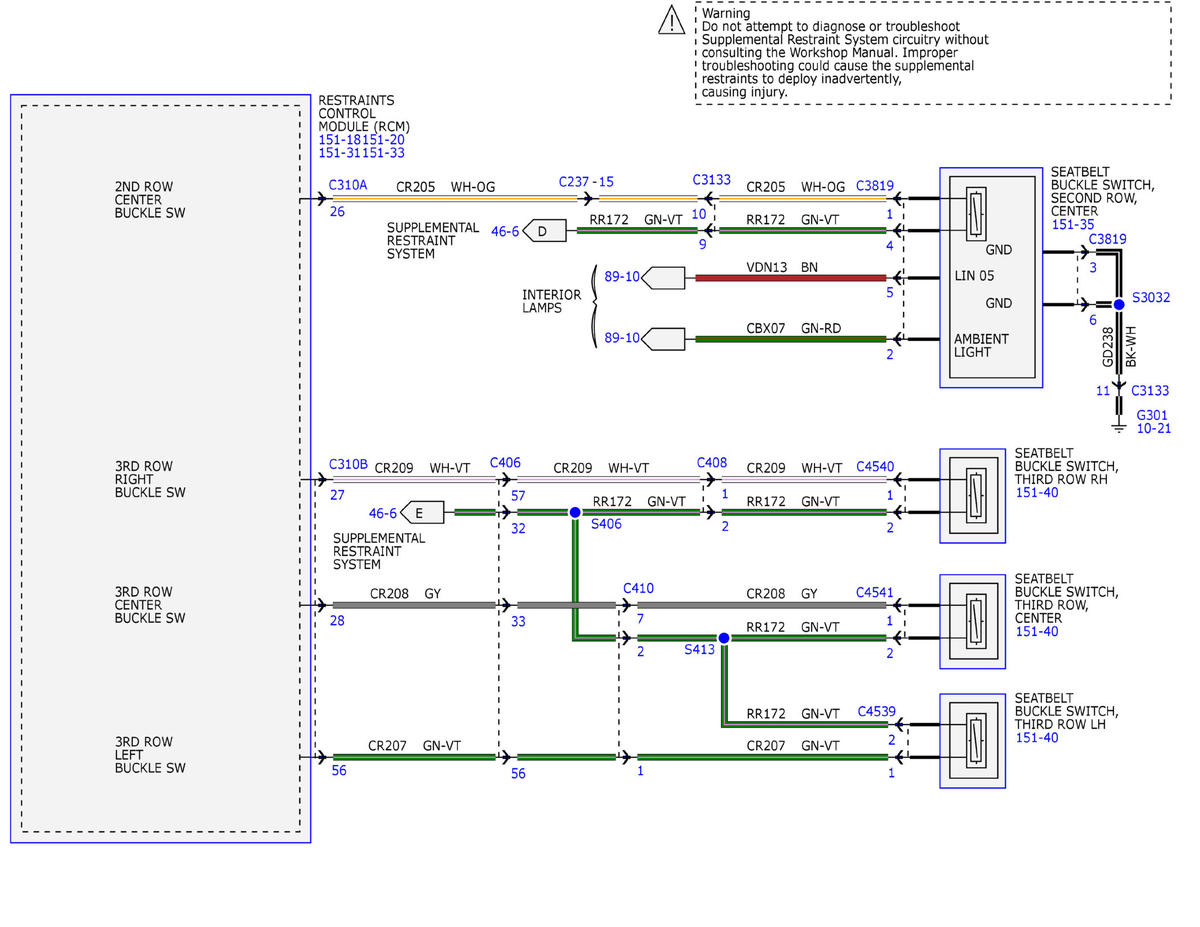

Fig 4: Supplemental Restraint System Wiring Diagram (4 Of 11)
GFDWR115873Courtesy of FORD MOTOR COMPANY

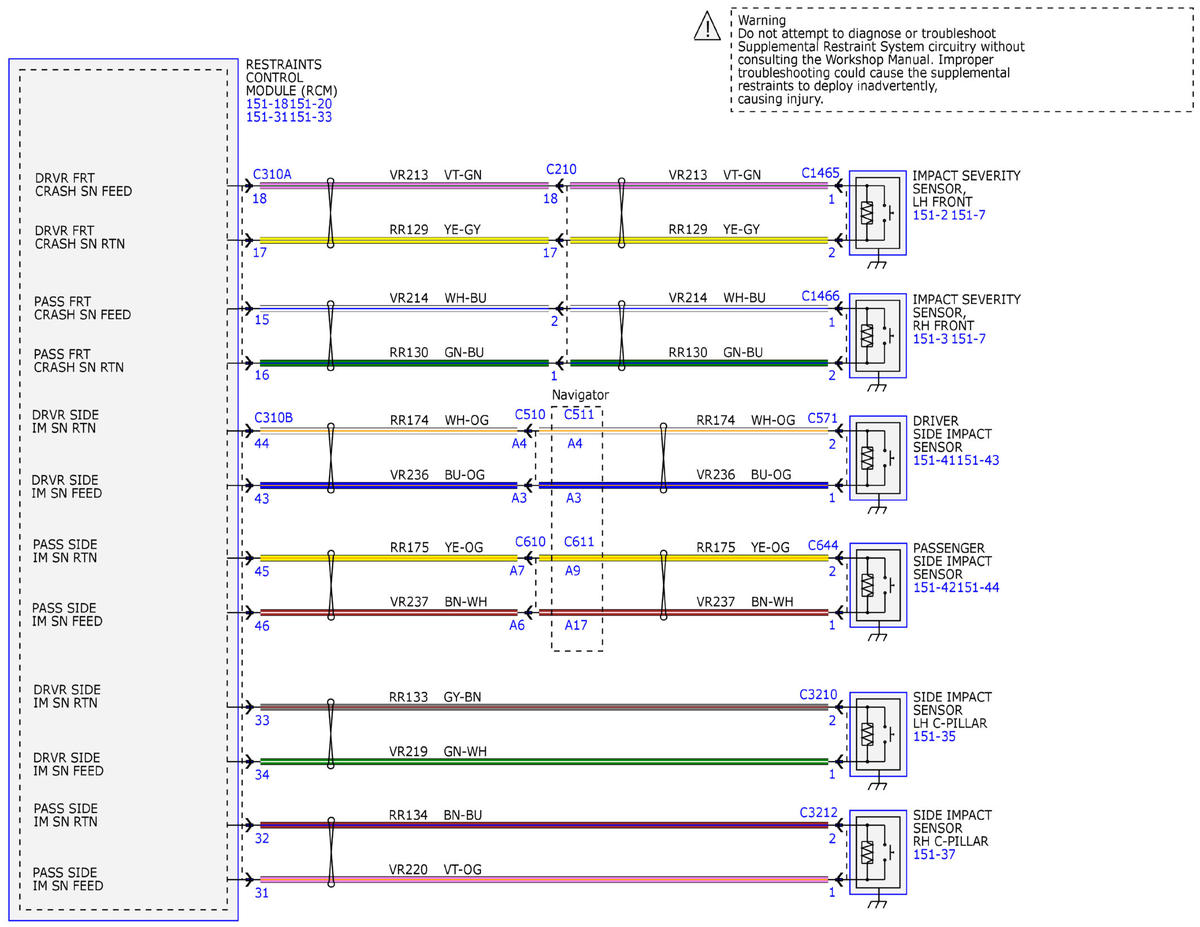

Fig 5: Supplemental Restraint System Wiring Diagram (5 Of 11)
GFDWR115874Courtesy of FORD MOTOR COMPANY
Fig 6: Supplemental Restraint System Wiring Diagram (6 Of 11)
GFDWR115875Courtesy of FORD MOTOR COMPANY

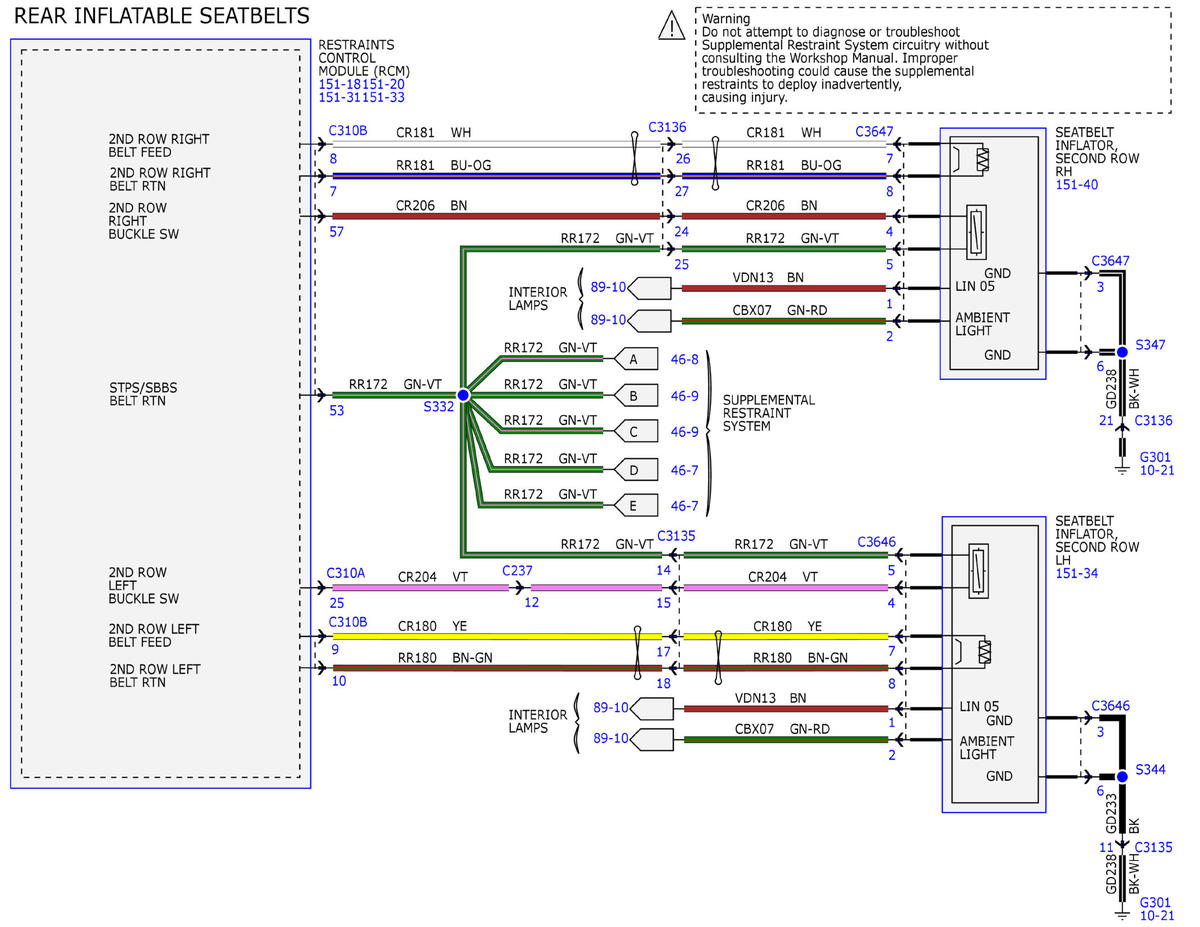

Fig 7: Supplemental Restraint System Wiring Diagram (7 Of 11)
GFDWR115876Courtesy of FORD MOTOR COMPANY

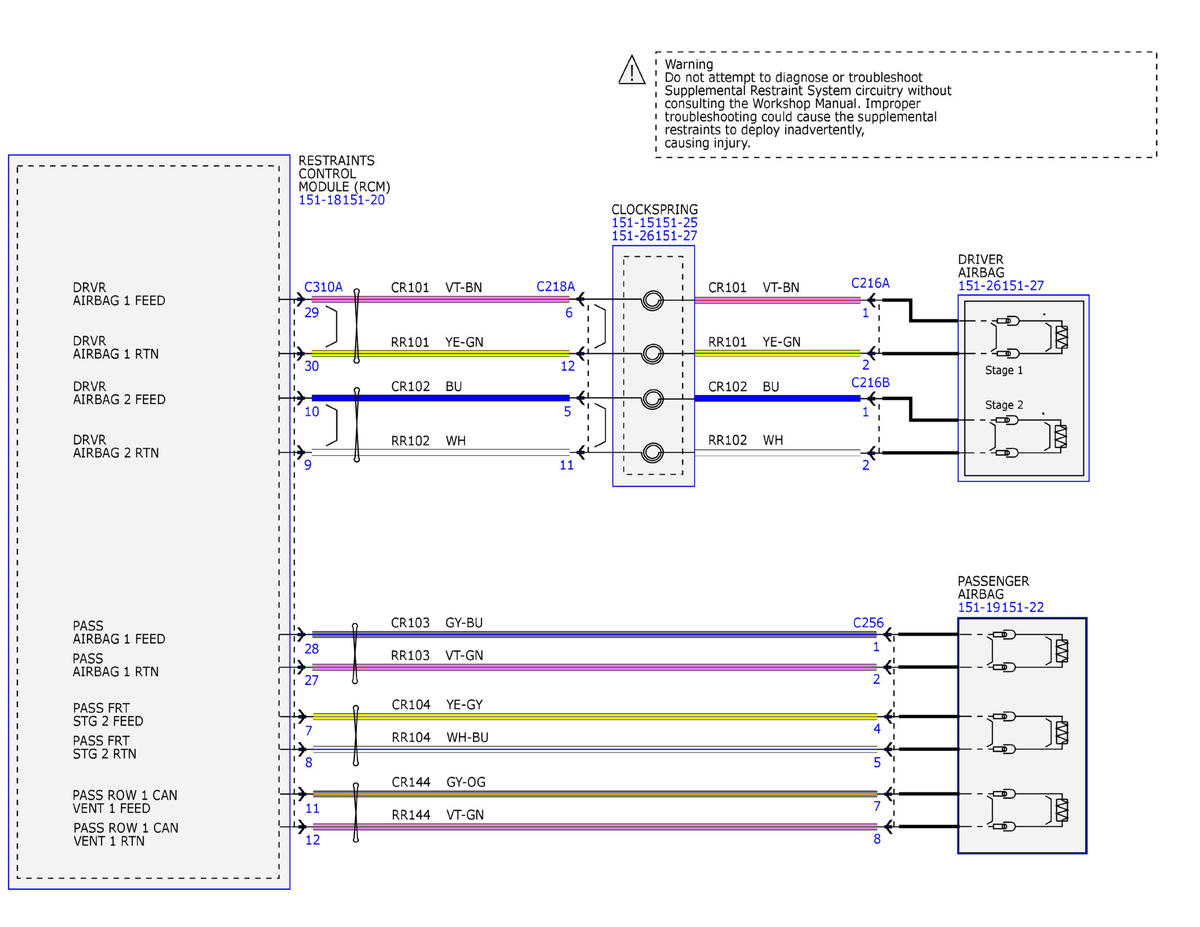

Fig 8: Supplemental Restraint System Wiring Diagram (8 Of 11)
GFDWR115877Courtesy of FORD MOTOR COMPANY

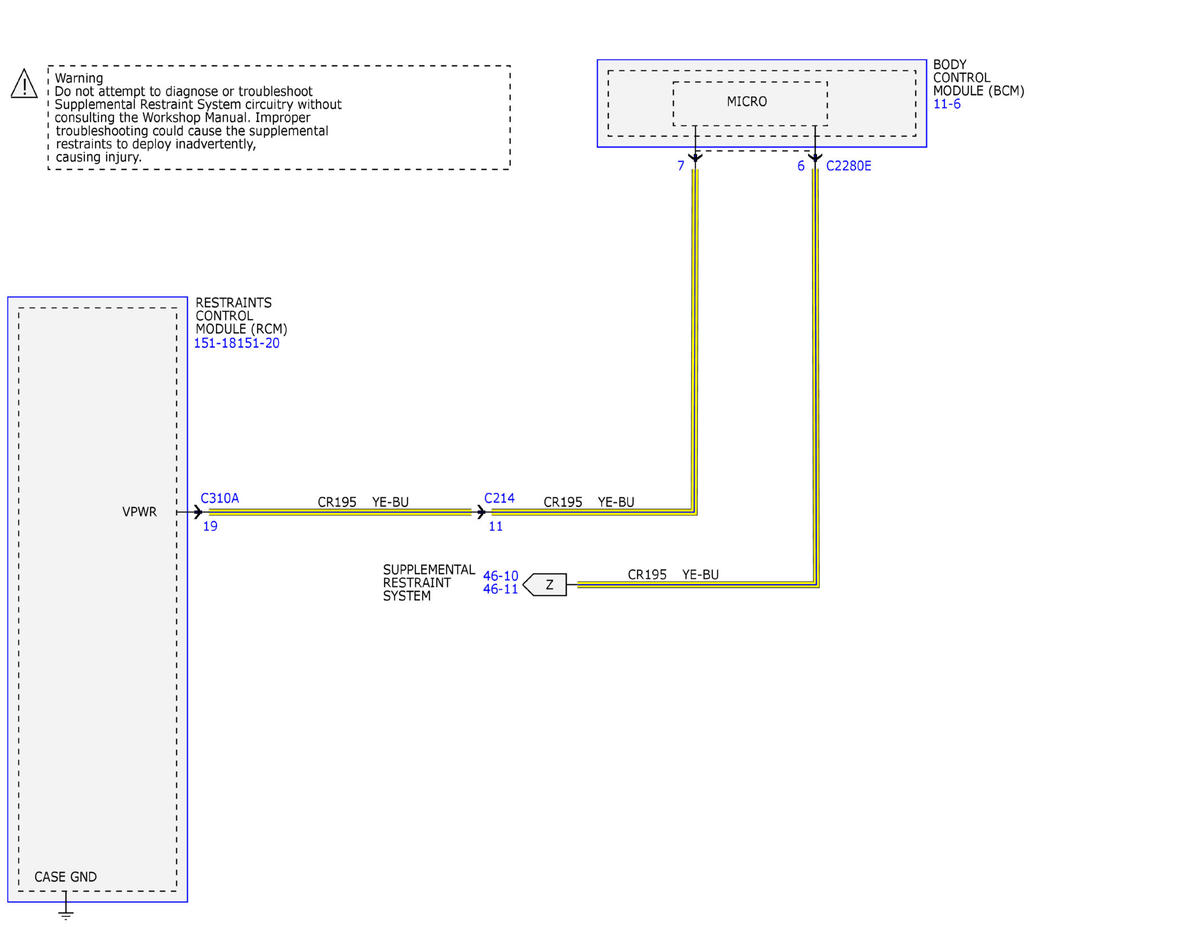

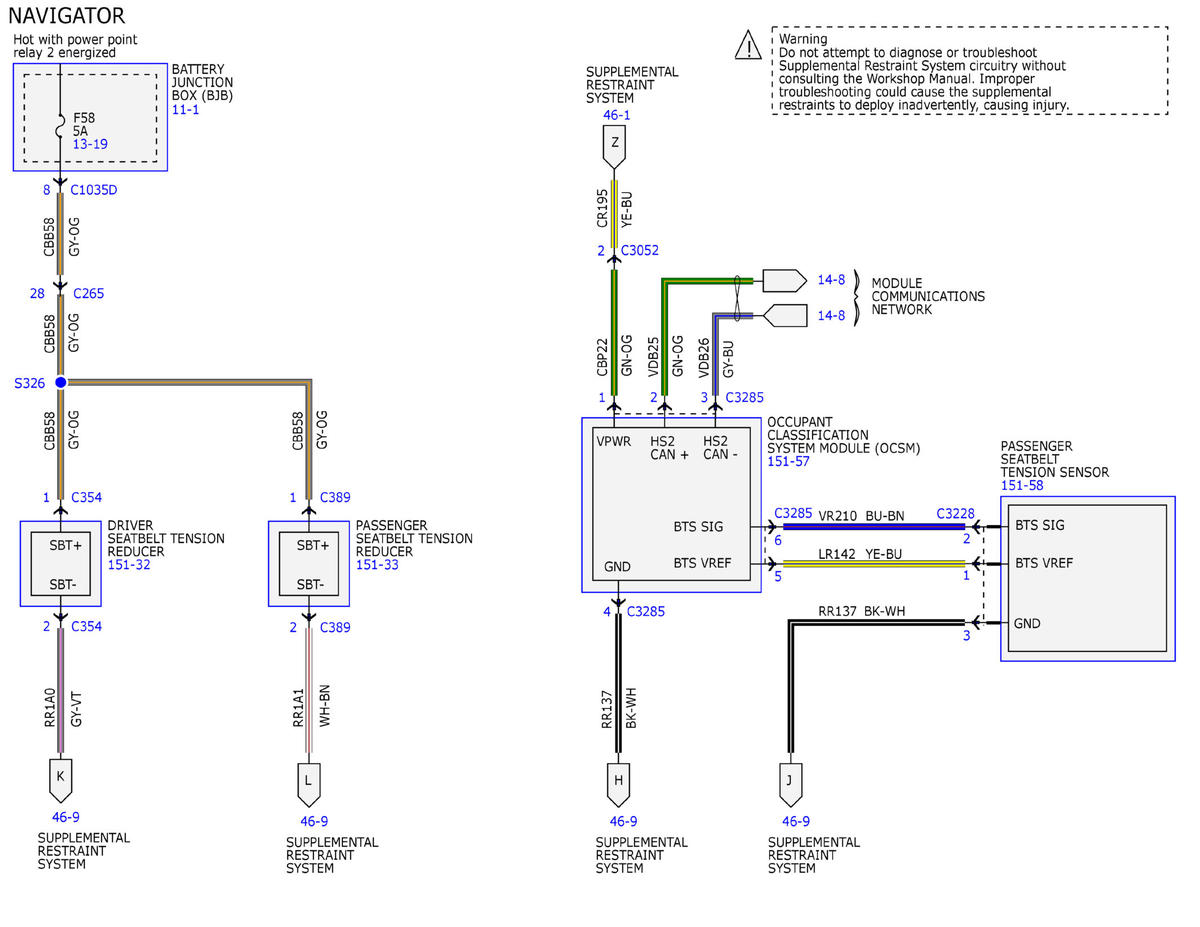

Fig 9: Supplemental Restraint System Wiring Diagram (9 Of 11)
GFDWR115878Courtesy of FORD MOTOR COMPANY

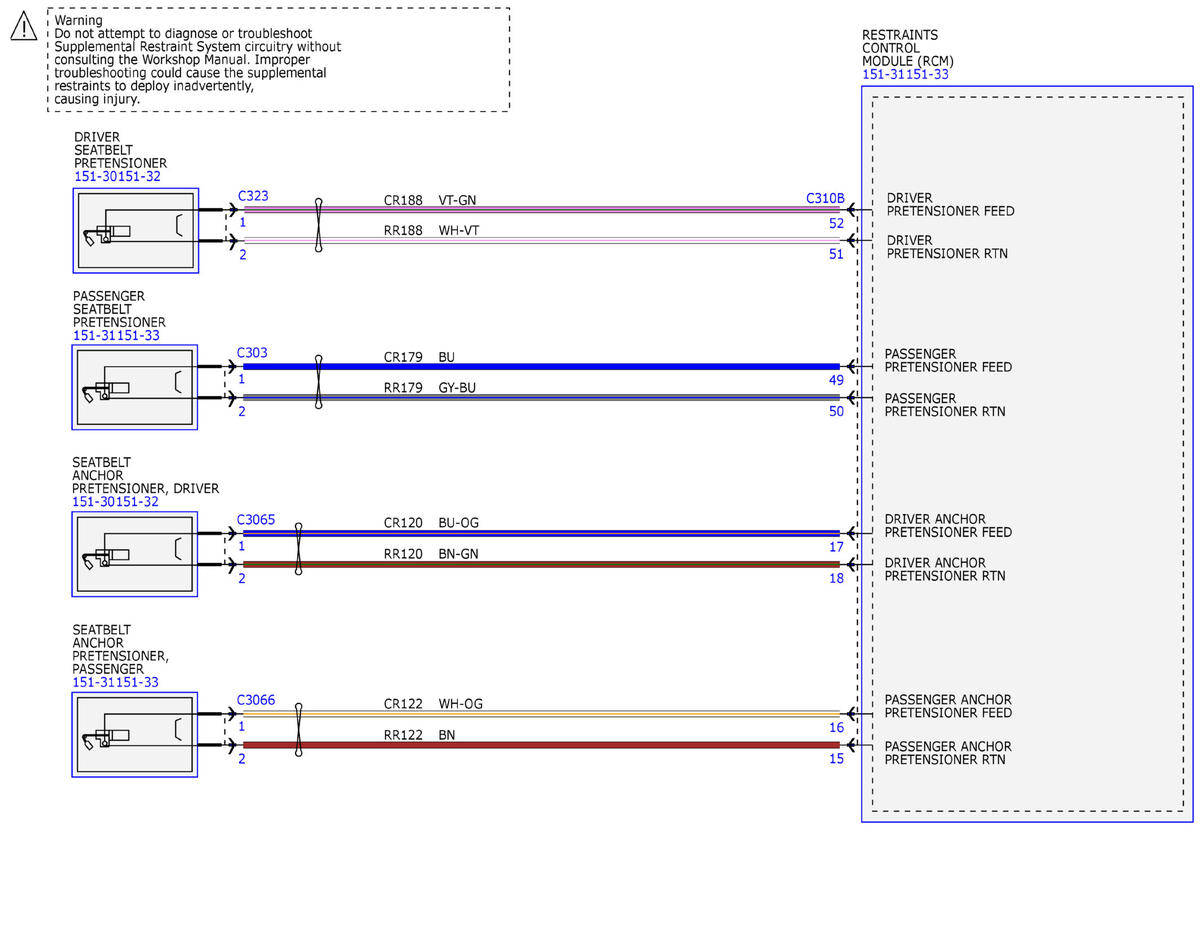

Fig 10: Supplemental Restraint System Wiring Diagram (10 Of 11)
GFDWR115879Courtesy of FORD MOTOR COMPANY

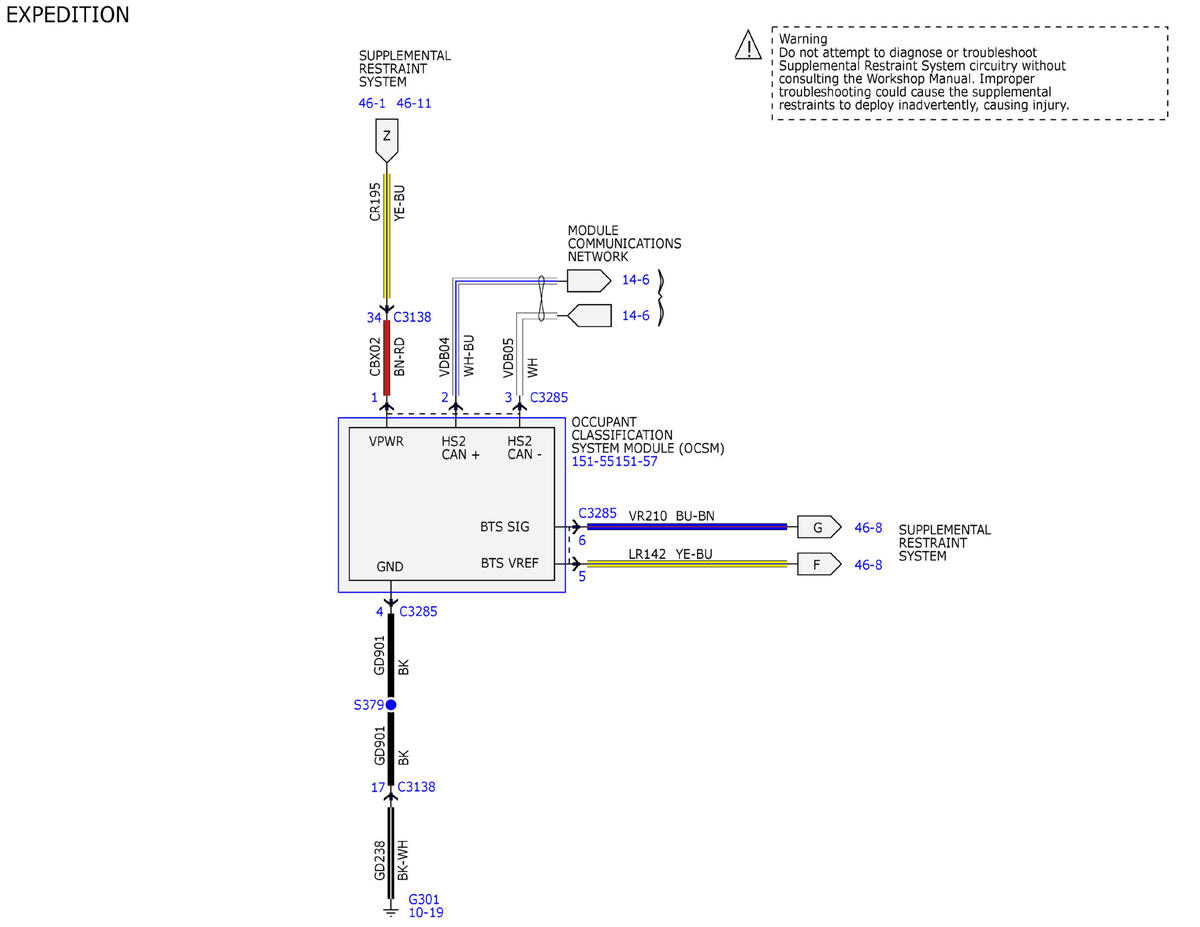

Fig 11: Supplemental Restraint System Wiring Diagram (11 Of 11)
GFDWR115880Courtesy of FORD MOTOR COMPANY
