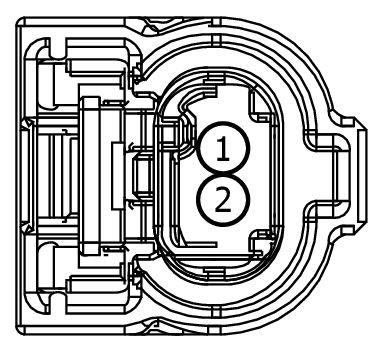

Connector End View C1465 - IMPACT SEVERITY SENSOR, LH FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1465	IMPACT SEVERITY SENSOR, LH FRONT	14290			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-DAB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VR213 (VT-GN)	20	SENSOR - IMPACT FRONT 1ST	EU5T-14474-DAB
2	RR129 (YE-GY)	20	CTRL MOD. - SENSOR IMPACT FRONT 1ST -	EU5T-14474-DAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1469

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-KA

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Side Impact
• Sensor - Transfer Case Temperature
• Sensor - Transmission Fluid Temperature
• Solenoid - Variable Oil Pump Control
