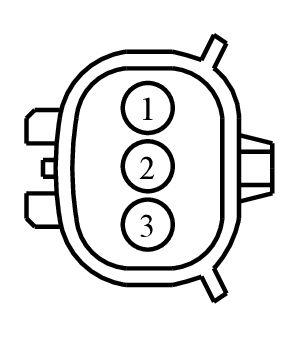

Connector End View C3228 - PASSENGER SEATBELT TENSION SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3228	PASSENGER SEATBELT TENSION SENSOR	14D230			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LR142 (YE-BU)	20	CTRL MOD. - SENSOR SEATBELT TENSION FRONT PASSENGER OUTBOARD +	N/A
2	VR210 (BU-BN)	20	SENSOR - SEATBELT TENSION FRONT PASSENGER OUTBOARD	N/A
3	RR137 (BK-WH)	20	CTRL MOD. - SENSOR SEAT TRACK POSITION DRIVER -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1180

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-ASA

Gauge:

16

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Speaker - Tweeter - RH - Rear
