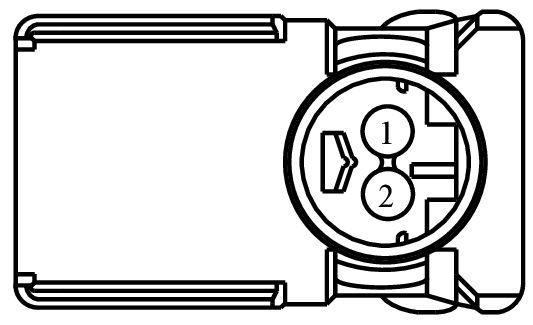

Connector End View C3066 - SEATBELT ANCHOR PRETENSIONER, PASSENGER
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C3066 | SEATBELT ANCHOR PRETENSIONER, PASSENGER | 14A005 | part# N/A | Not Available | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR122 (WH-OG) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD + | N/A | ||||
| 2 | RR122 (BN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD - | N/A | ||||
