Connector End View C2280E - BODY CONTROL MODULE (BCM)

Connector: Description Color Harness Base Part # Service Pigtail
C2280E BODY CONTROL MODULE (BCM) 14A005 part# N/A Not Available

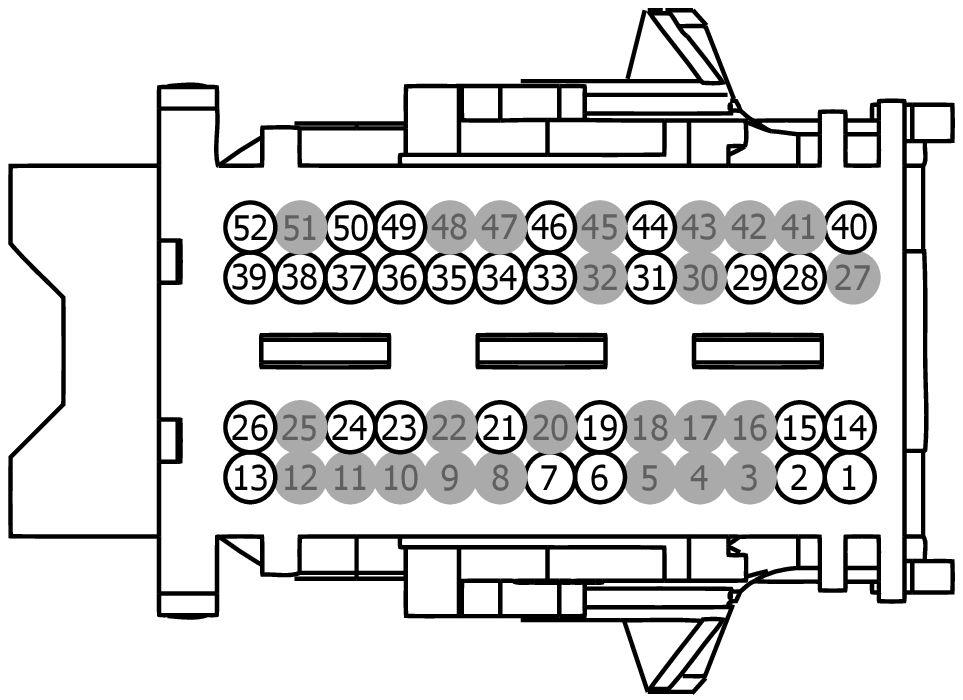

GFDWR117893Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-DB DU2Z-14474-AA 0.64
9U5T-14474-EB DU2Z-14474-AA 0.64
9U5T-14474-DA DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CPL45 (BN) 22 SWITCH - LIFTGATE/DECKLID RELEASE 9U5T-14474-DB
2 CPK30 (VT) 22 SWITCH - KEYLESS KEYPAD LINE B 9U5T-14474-DB
3 * * Not Used N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 CR195 (YE-BU) 22 CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER 9U5T-14474-DA
6 CR195 (YE-BU) 20 CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER 9U5T-14474-DA
7 CR195 (YE-BU) 20 CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER 9U5T-14474-DA
8 * * Not Used N/A
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 * * Not Used N/A
13 CLS17 (YE-GY) 18 CTRL MOD. - STOP HIGH MOUNT 9U5T-14474-EB
14 CPL60 (BN-YE) 22 SWITCH - LIFTGATE GLASS RELEASE 9U5T-14474-DB
15 CPK31 (GN) 22 SWITCH - KEYLESS KEYPAD LINE C 9U5T-14474-DB
16 * * Not Used N/A
17 * * Not Used N/A
18 * * Not Used N/A
19 CPL39 (YE) 22 SWITCH - LATCH REAR PASSENGER SIDE OR RIGHT REAR # AJAR (INCL. SLIDING DOOR) 9U5T-14474-DB
20 * * Not Used N/A
21 CPL31 (WH) 22 SWITCH - LATCH PASSENGER OR RIGHT FRONT # AJAR 9U5T-14474-DB
22 * * Not Used N/A
23 CLS09 (WH-OG) 18 CTRL MOD. - PARK REAR RIGHT 9U5T-14474-EB
24 CLS08 (VT-GN) 18 CTRL MOD. - PARK REAR LEFT 9U5T-14474-EB
25 * * Not Used N/A
26 CLS23 (GY-OG) 18 CTRL MOD. - TURN LAMP LEFT REAR 9U5T-14474-EB
26 CLS51 (WH-GN) 18 CTRL MOD. - STOP/TURN LEFT OUTBOARD 9U5T-14474-EB
27 * * Not Used N/A
28 CPK29 (GY) 22 SWITCH - KEYLESS KEYPAD LINE A 9U5T-14474-DB
29 CPK52 (VT-WH) 20 CTRL MOD. - LIFTGATE/TAILGATE HANDS-FREE # OUTPUT 9U5T-14474-DB
30 * * Not Used N/A
31 CLS55 (GN-BU) 18 LAMP - TURN REAR LEFT # SIGNAL OUT 9U5T-14474-EB
32 * * Not Used N/A
33 CPL26 (GN-VT) 22 SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR 9U5T-14474-EB
34 CPL58 (GY-OG) 22 SWITCH - LIFTGATE/DECKLID # GLASS AJAR 9U5T-14474-DB
35 CPK28 (WH) 22 CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION 9U5T-14474-DB
36 VDN03 (GY-VT) 22 CTRL MOD. - LIN BUS # BCM 3 9U5T-14474-DB
37 VDN04 (VT-WH) 22 CTRL MOD. - LIN BUS # BCM 4 9U5T-14474-DB
38 VDN13 (BN) 22 CTRL MOD. - LIN BUS # BCM 13 9U5T-14474-DB
39 VPL89 (GY-YE) 20 #N/A 9U5T-14474-DB
40 CAT13 (GN-OG) 22 CTRL MOD. - TRAILER TOW # PARK LAMPS 9U5T-14474-DB
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 CLS54 (BU-OG) 18 LAMP - TURN REAR RIGHT # SIGNAL OUT 9U5T-14474-EB
45 * * Not Used N/A
46 CPL36 (GN) 20 SWITCH - LATCH REAR DRIVER SIDE OR LEFT REAR # AJAR (INCL. SLIDING DOOR) 9U5T-14474-DB
47 * * Not Used N/A
48 * * Not Used N/A
49 CR167 (YE-VT) 22 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) 9U5T-14474-DB
50 VDN14 (YE-VT) 22 CTRL MOD. - LIN BUS # BCM 6 9U5T-14474-DB
51 * * Not Used N/A
52 CLS53 (GY-VT) 18 CTRL MOD. - STOP/TURN RIGHT OUTBOARD 9U5T-14474-EB
52 CLS27 (GN-OG) 18 CTRL MOD. - TURN LAMP RIGHT REAR 9U5T-14474-EB
