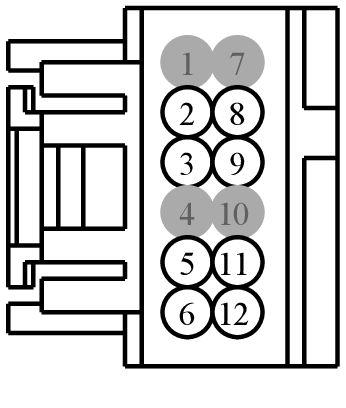

Connector End View C218A - Clockspring
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C218A | CLOCKSPRING | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| 1L2T-14474-CA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | RHS81 (VT-WH) | 22 | THERMISTOR - HEATED STEERING WHEEL - | 9U5T-14474-LA | ||||
| 3 | VHS81 (GN-WH) | 22 | THERMISTOR - HEATED STEERING WHEEL + | 9U5T-14474-LA | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | CR102 (BU) | 18 | CTRL MOD. - AIR BAG DRIVER 2 + | 1L2T-14474-CA | ||||
| 6 | CR101 (VT-BN) | 18 | CTRL MOD. - AIR BAG DRIVER 1 + | 1L2T-14474-CA | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | GD214 (BK-BU) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE | 9U5T-14474-LA | ||||
| 9 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | 9U5T-14474-LA | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | RR102 (WH) | 18 | CTRL MOD. - AIR BAG DRIVER 2 - | 1L2T-14474-CA | ||||
| 12 | RR101 (YE-GN) | 18 | CTRL MOD. - AIR BAG DRIVER 1 - | 1L2T-14474-CA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-949
Service Part Number:
3U2Z-14S411-BMAB
Gauge:
18
Pin material:
Silver
Cavities:
12
Vehicle Uses:
- Control - Navigation Display
- Module - Driver Door
- Module - Front Interface
- Monitor - Video/DVD
- Switch - Gear Shift Select/Neutral Safety
