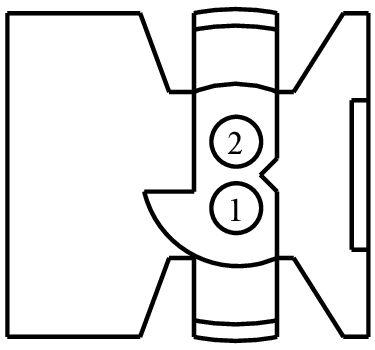

Connector End View C216A - Driver Airbag

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C216A	DRIVER AIRBAG	PIA			74043B13	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR101 (VT-BN)	20	CTRL MOD. - AIRBAG DRIVER 1 +	N/A
2	RR101 (YE-GN)	20	CTRL MOD. - AIRBAG DRIVER 1 -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1223

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BFA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Squib - Airbag (Passenger)
