Brake Pedal Control Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

Detach the clips and remove the lower steering column opening cover.

Courtesy of FORD MOTOR COMPANY
Detach the clips and remove the instrument panel lower side trim panel.

Courtesy of FORD MOTOR COMPANY
Detach the clips and remove the instrument panel upper side trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the bolts, disconnect the electrical connectors and remove the register and switch panel assembly.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

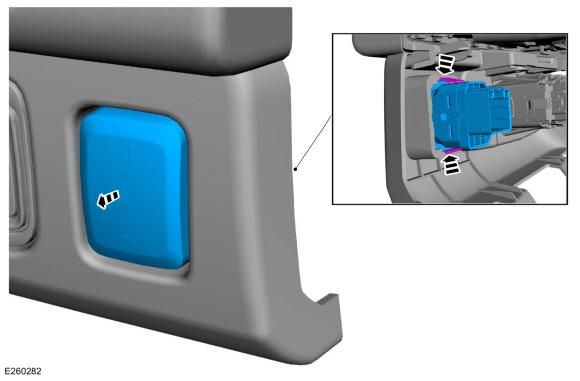

Press inward on the tabs and remove the adjustable pedal control switch.

Courtesy of FORD MOTOR COMPANY
