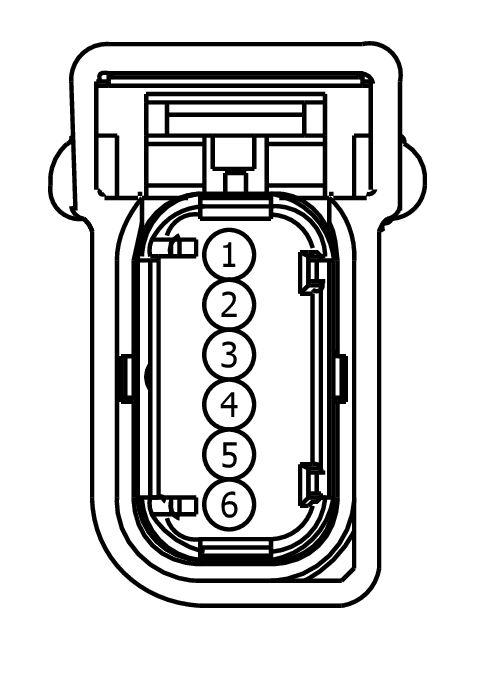

Connector End View C3296 - SEATBELT BUCKLE SWITCH, DRIVER

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3296	SEATBELT BUCKLE SWITCH, DRIVER	14D231			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VDN13 (BN)	20	CTRL MOD. - LIN BUS # BCM 5	N/A
2	CBX07 (GN-RD)	20	POWER - CTRL MOD. AMBIENT LIGHTING	N/A
3	GD908 (BK)	20	GROUND - CTRL MOD. AMBIENT LIGHTING	N/A
4	CR146 (GY-VT)	20	CTRL MOD. - SEATBELT SHOULDER ADAPTIVE LOAD LIMITING DRIVER +	N/A
5	CR201 (GN-BU)	20	SENSOR - SEATBELT BUCKLE (SEATBELT REMINDER) FRONT DRIVER SIDE	N/A
6	RR137 (BU-GY)	20	CTRL MOD. - SENSOR SEAT TRACK POSITION DRIVER -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1329

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-EA

Gauge:

20

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Antenna - Keyless Entry
• Handle - Decklid
• Switch - Keyless Entry
• Switch - Seatbelt
