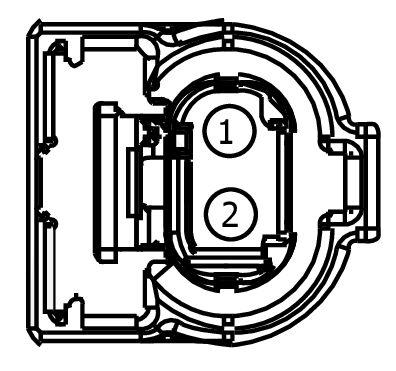

Connector End View C3212 - SIDE IMPACT SENSOR RH C-PILLAR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3212	SIDE IMPACT SENSOR RH C-PILLAR	14A005			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VR220 (VT-OG)	18	SENSOR - SIDE IMPACT ROW 2 PASSENGER SIDE	EU5T-14474-EAB
2	RR134 (BN-BU)	18	CTRL MOD. - SENSOR SIDE IMPACT ROW 2 PASSENGER SIDE -	EU5T-14474-EAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1469

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-KA

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Side Impact
• Sensor - Transfer Case Temperature
• Sensor - Transmission Fluid Temperature
• Solenoid - Variable Oil Pump Control
