Power Transfer Unit - Vehicles With: Power Transfer Unit Oil-To-Coolant Cooler

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

1. Remove the front subframe. Refer to: Front Subframe .
2. NOTE: The installation step requires the aid of another technician.

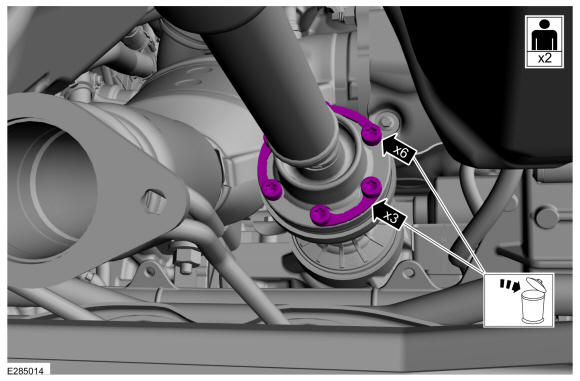

   Remove and discard the driveshaft to PTU bolts and retaining straps.

   Torque: 26 lb.ft (35 Nm)

   Courtesy of FORD MOTOR COMPANY

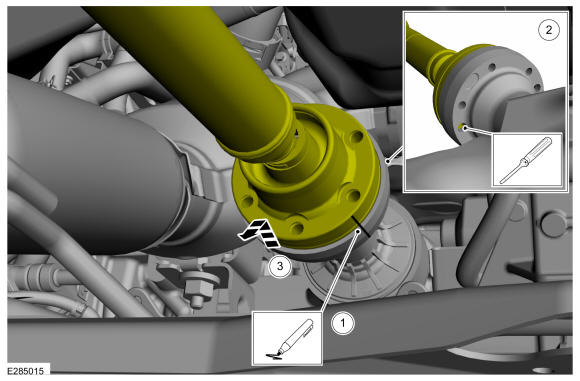

3. Separate the driveshaft from the PTU flange.
   1. NOTE: Make sure that the component aligns with the installation mark.

      Index-mark the driveshaft and PTU flange.

   2. NOTE: Do not remove driveshaft from the PTU flange by pulling on the driveshaft tube. Damage to the CV-joint can result.

      Using general equipment, separate the driveshaft from the PTU flange. Use the General Equipment: Punch Use the General Equipment: Copper Hammer

   3. Remove the driveshaft from the PTU flange.

   Courtesy of FORD MOTOR COMPANY

4. NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.

   Drain the PTU. Refer to: Power Transfer Unit Draining and Filling  .

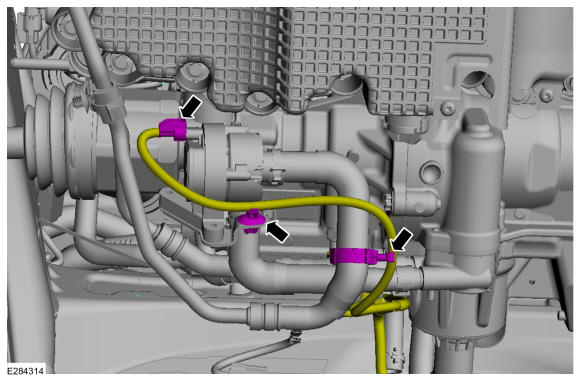

5. Disconnect the auxiliary pump connector and retainers.

   Courtesy of FORD MOTOR COMPANY

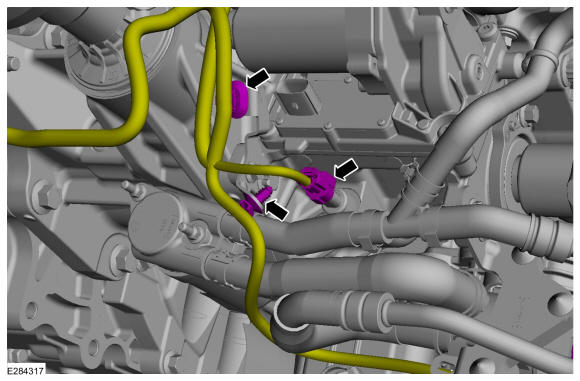

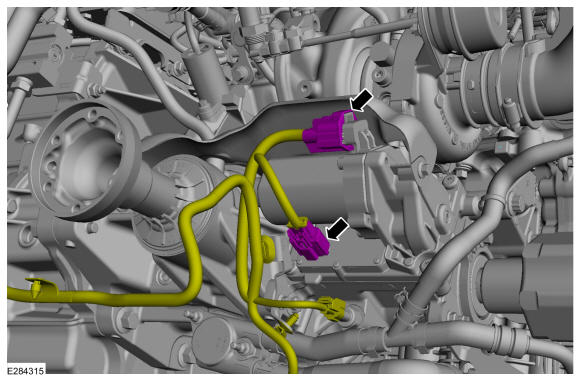

6. Disconnect the PTU motor connectors.

   Courtesy of FORD MOTOR COMPANY

7. If equipped, disconnect the PTU temperature sensor and retainers.

   Courtesy of FORD MOTOR COMPANY

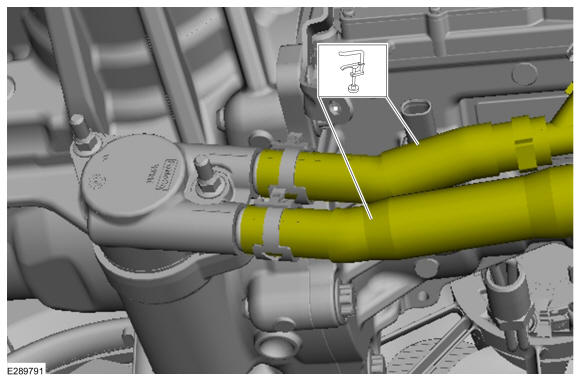

8. Clamp the hoses.

   Courtesy of FORD MOTOR COMPANY

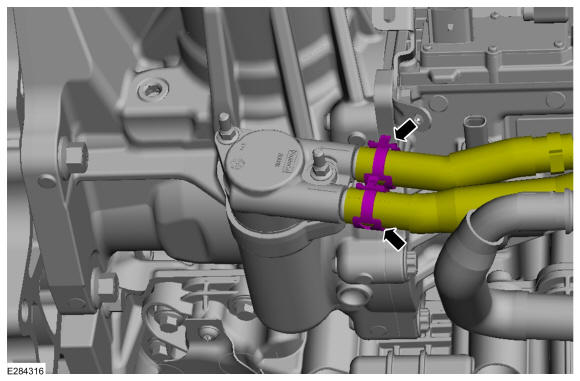

9. Release the hose clamps and position aside the PTU cooling system hoses.

   Courtesy of FORD MOTOR COMPANY

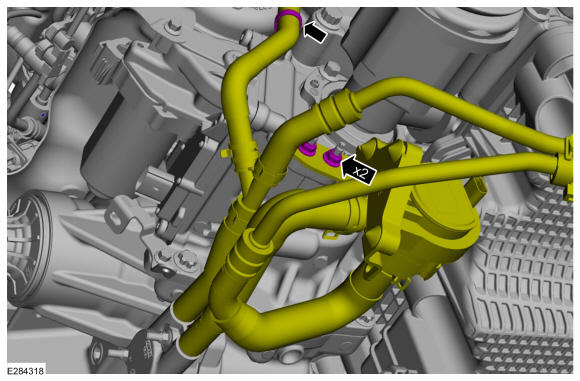

10. Remove the pump mounting nuts and position aside coolant pump along with hoses.

    Courtesy of FORD MOTOR COMPANY

11. Remove the intermediate shaft. Refer to: Intermediate Shaft .
12. Disconnect and position aside the PTU vent hose.

    Courtesy of FORD MOTOR COMPANY

13. Remove the vent hose retainer.

    Courtesy of FORD MOTOR COMPANY

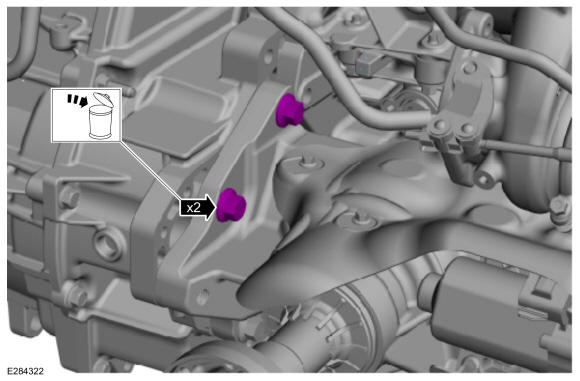

14. Remove the PTU support bracket bolts and the PTU support bracket.

    Courtesy of FORD MOTOR COMPANY

15. Remove the PTU bolts.

    Courtesy of FORD MOTOR COMPANY

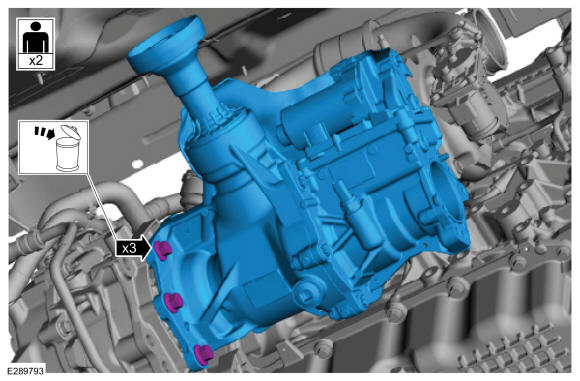

16. NOTE: This is a tight fit, use care to not damage the transmission and PTU mating surfaces.

    Remove the PTU bolts and the PTU.

    Courtesy of FORD MOTOR COMPANY

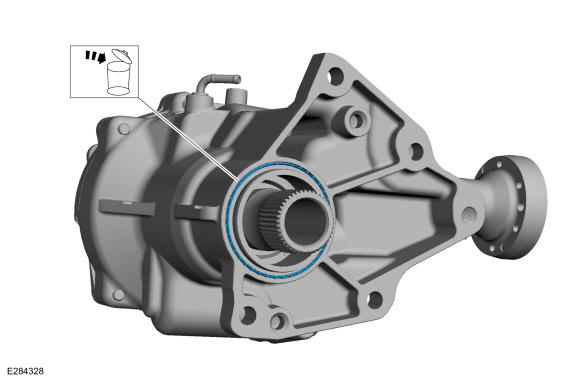

17. Remove and discard the PTU to transmission compression seal.

    Courtesy of FORD MOTOR COMPANY

18. NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.

    Remove the PTU heat shield bolts and PTU heat shield.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

19. NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.

    If equipped remove the PTU temperature sensor harness bracket.

    Courtesy of FORD MOTOR COMPANY

20. NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.

    If equipped remove the PTU oil temperature sensor.

Courtesy of FORD MOTOR COMPANY
