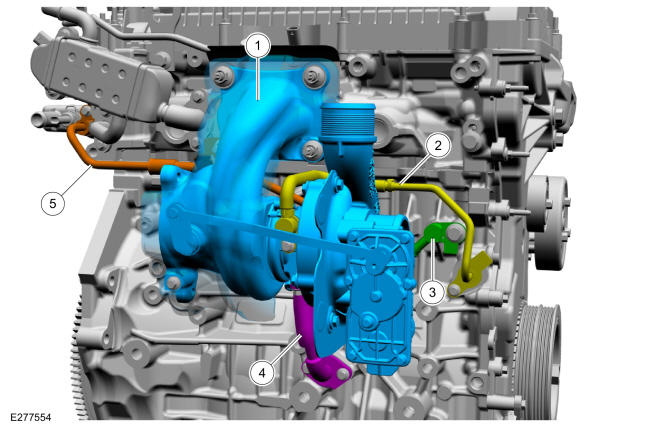

Turbocharger - Component Location
2.0L EcoBoost
| Item | Description |
|---|---|
| 1 | Turbocharger. Refer to: Turbocharger . |
| 2 | Turbocharger oil supply tube. Refer to: Turbocharger Oil Supply Tube . |
| 3 | Turbocharger coolant supply tube. Refer to: Turbocharger Coolant Supply Tube . |
| 4 | Turbocharger oil return tube. Refer to: Turbocharger Oil Return Tube . |
| 5 | Turbocharger coolant return tube. Refer to: Turbocharger Coolant Return Tube . |
