Parking Aid - Component Location

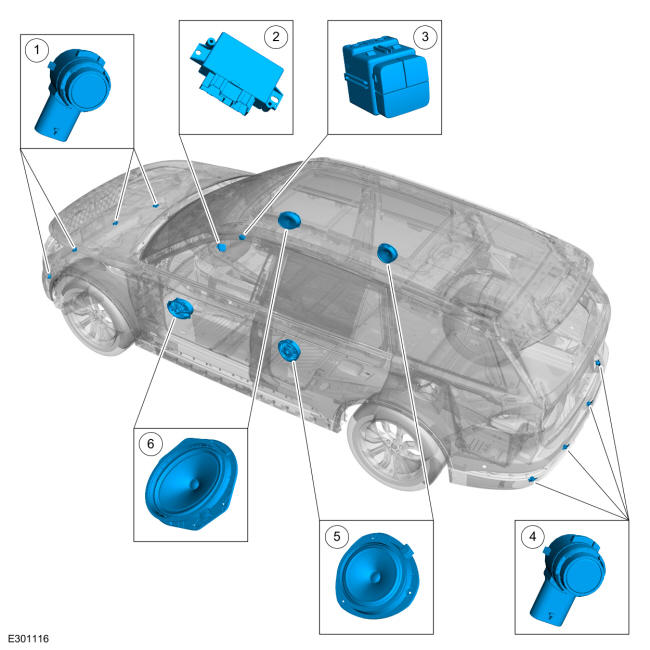

Component Location, Parking Aid - Audible without 360 Degree View Camera
| Item | Description |
|---|---|
| 1 | Front parking aid sensors |
| 2 | PAM |
| 3 | Parking aid switch |
| 4 | Rear parking aid sensors |
| 5 | Rear speakers (part of audio system) |
| 6 | Front speakers (part of audio system) |

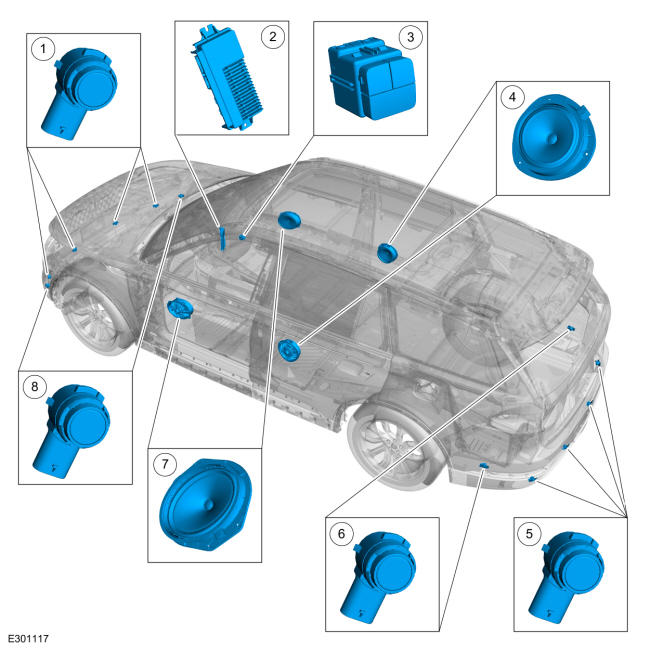

Component Location, Parking Aid - Audible with 360 Degree View Camera
| Item | Description |
|---|---|
| 1 | Front parking aid sensors |
| 2 | IPMB |
| 3 | Parking aid switch |
| 4 | Rear speakers (part of audio system) |
| 5 | Rear parking aid sensors |
| 6 | Rear active park assist sensor |
| 7 | Front speakers (part of audio system) |
| 8 | Front active park assist sensor |
