Fuse and Relay Information

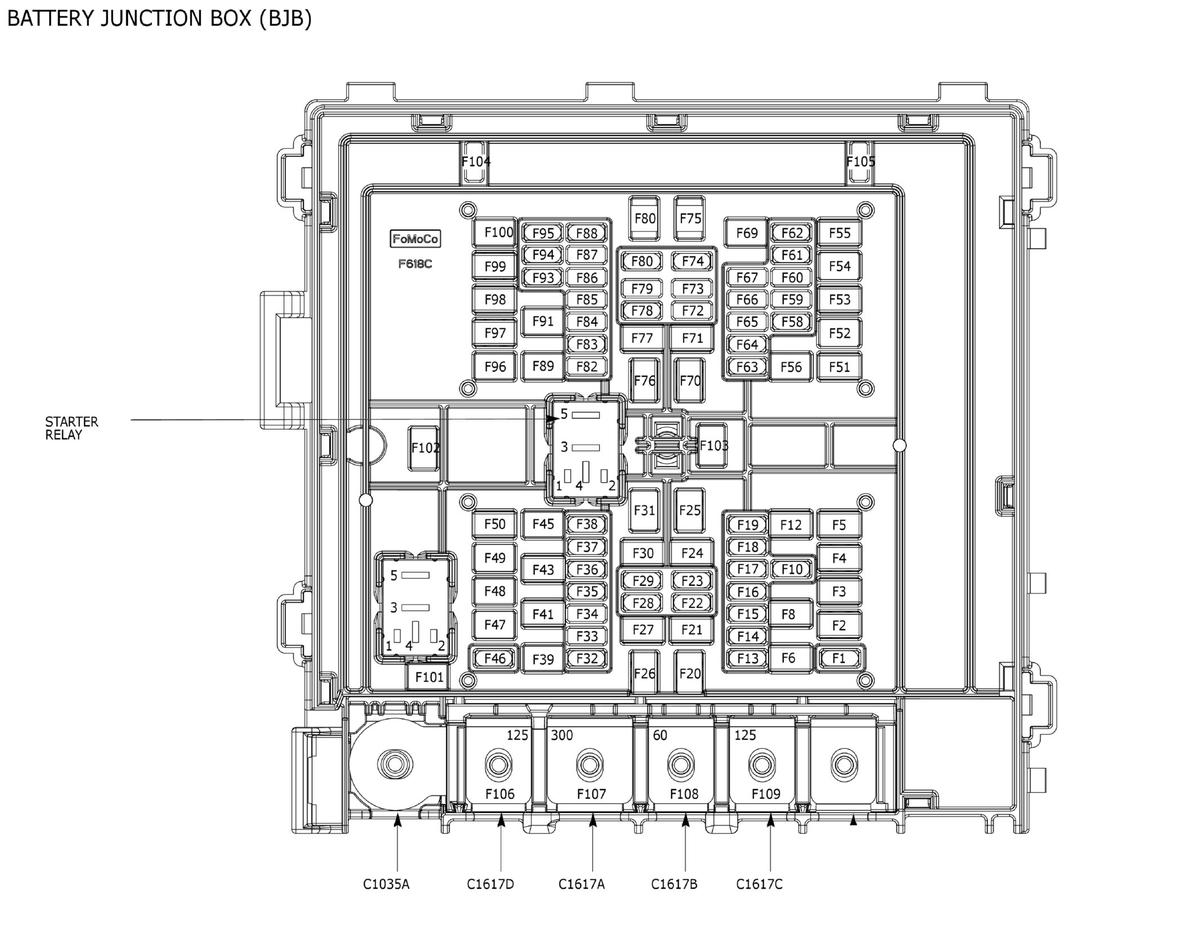

Fig 1: Battery Junction Box Component Location (1 Of 2)
GFDW101988Courtesy of FORD MOTOR COMPANY

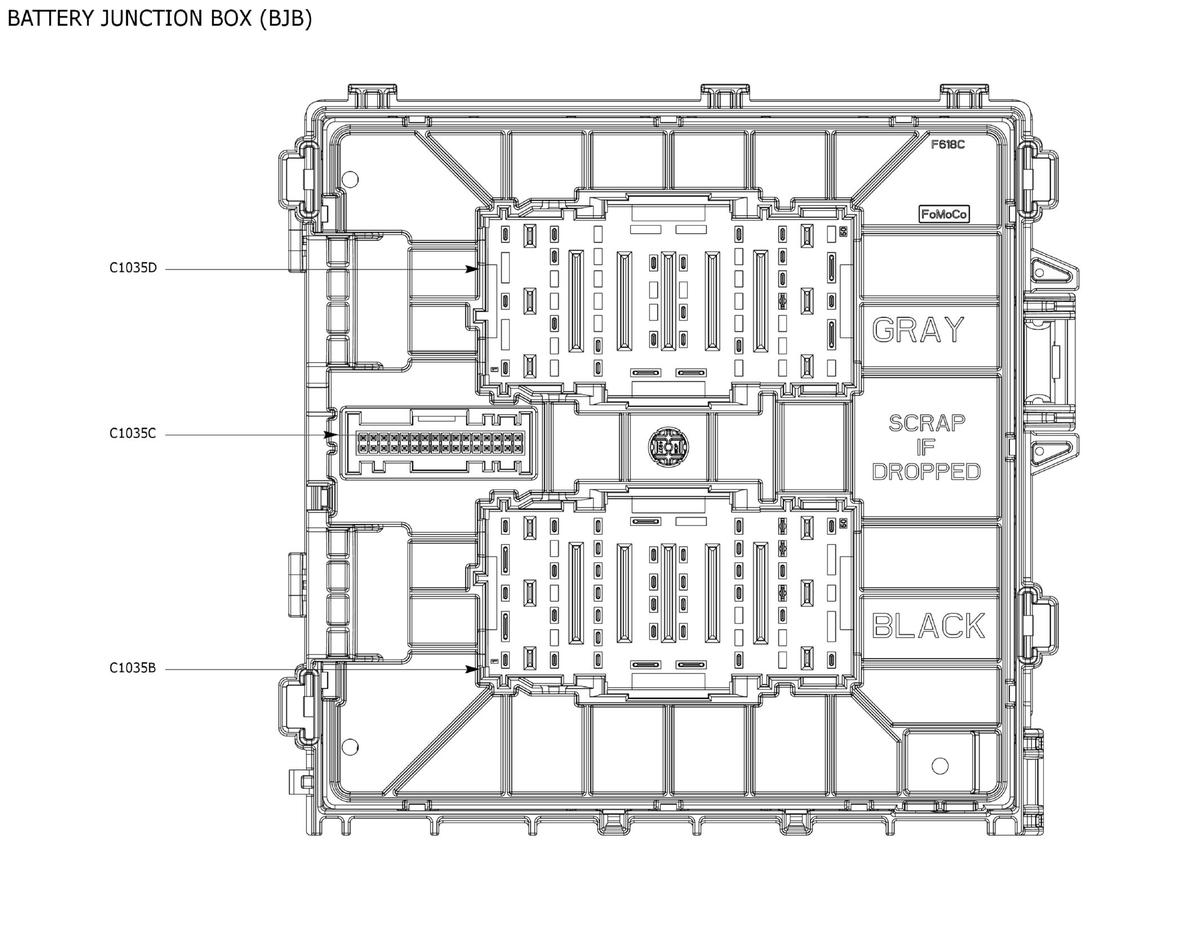

Fig 2: Battery Junction Box Component Location (2 Of 2)
GFDW101989Courtesy of FORD MOTOR COMPANY

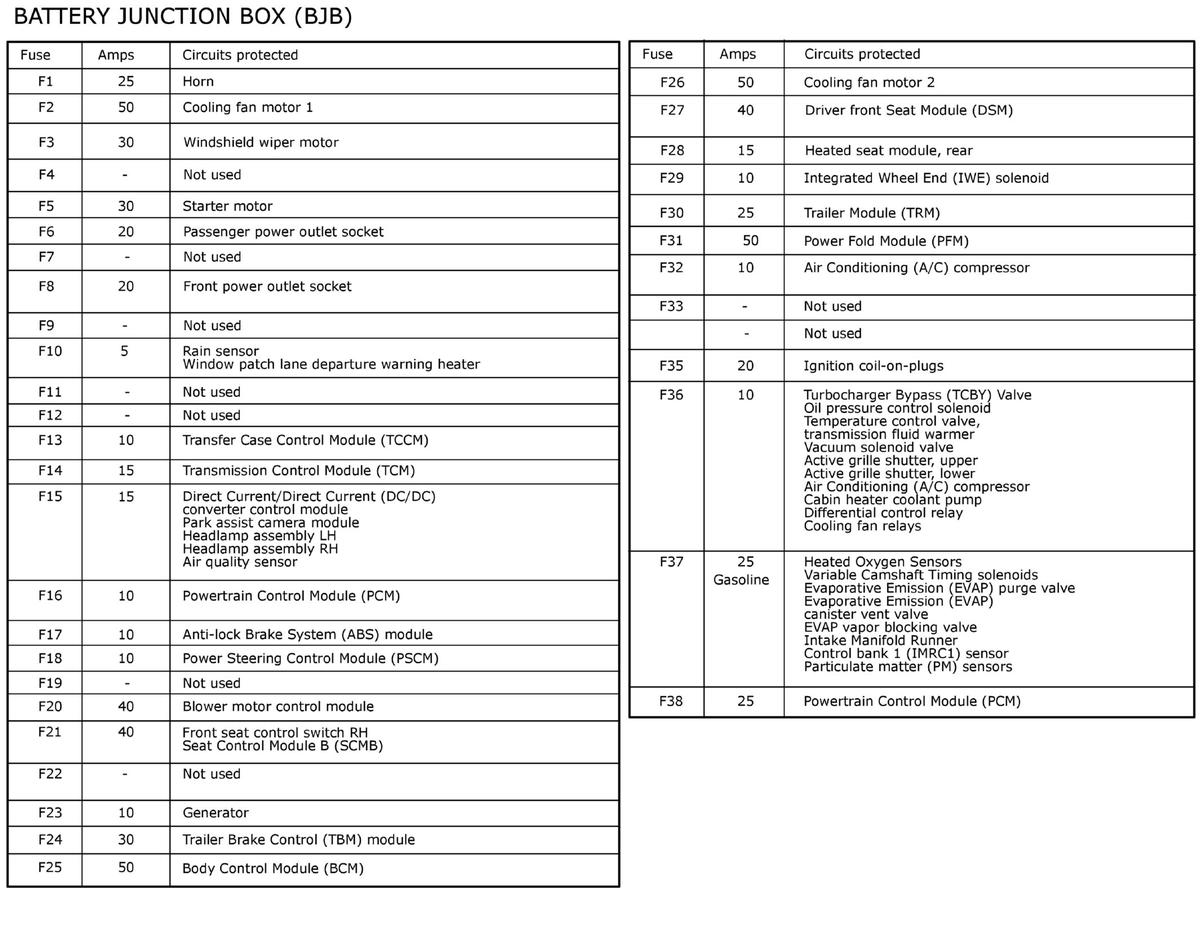

Fig 3: Battery Junction Box Component Location Legend (1 Of 3)
GFDW101990Courtesy of FORD MOTOR COMPANY

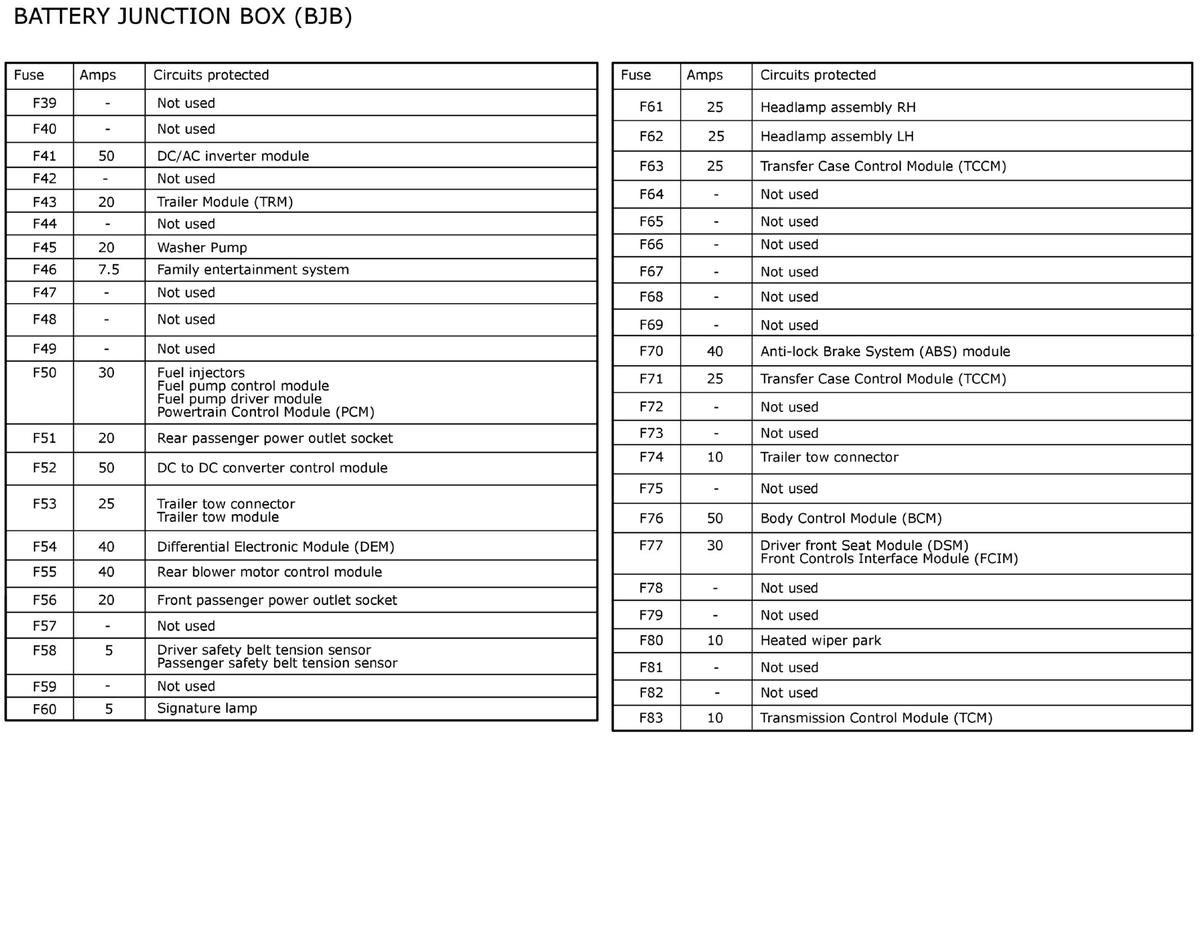

Fig 4: Battery Junction Box Component Location Legend (2 Of 3)
GFDW101991Courtesy of FORD MOTOR COMPANY

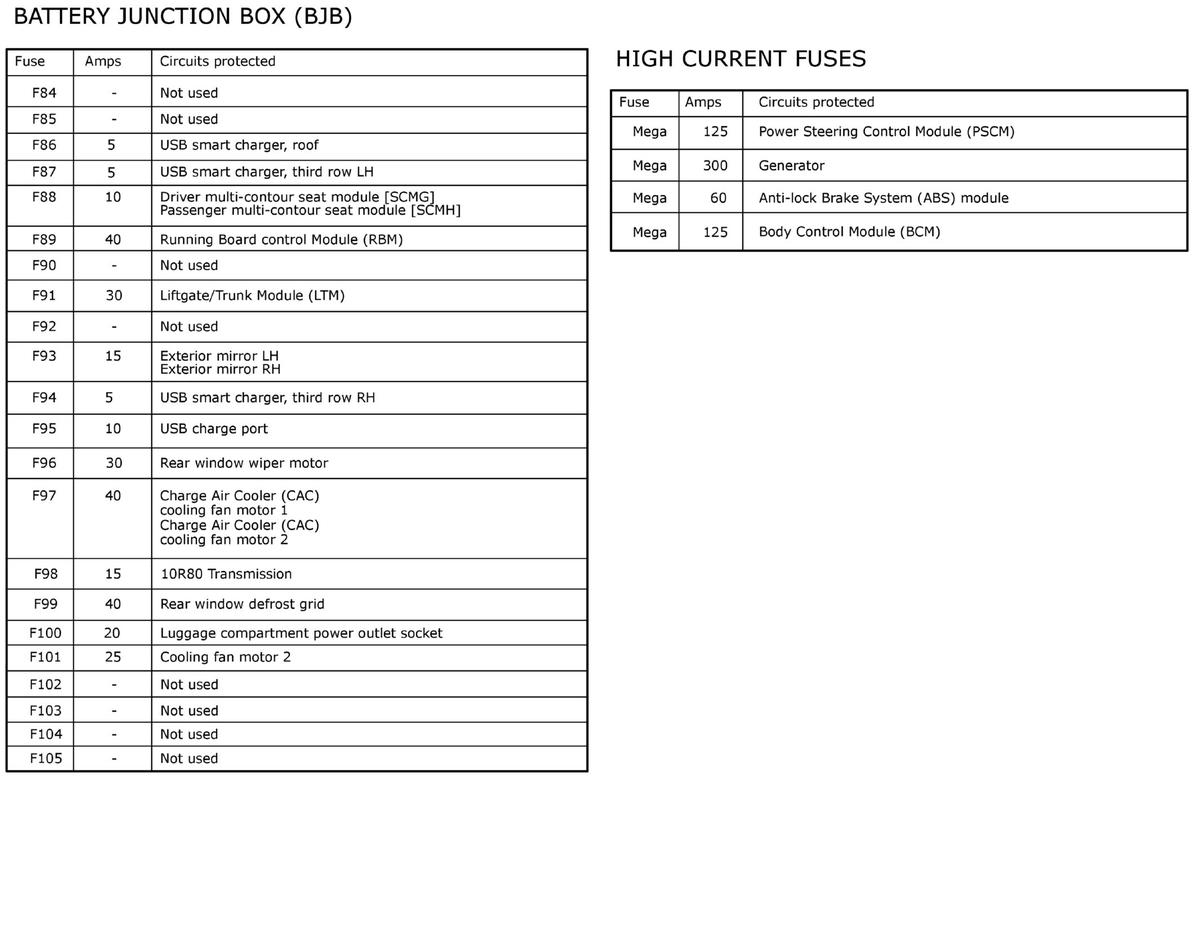

Fig 5: Battery Junction Box Component Location Legend (3 Of 3)
GFDW101992Courtesy of FORD MOTOR COMPANY

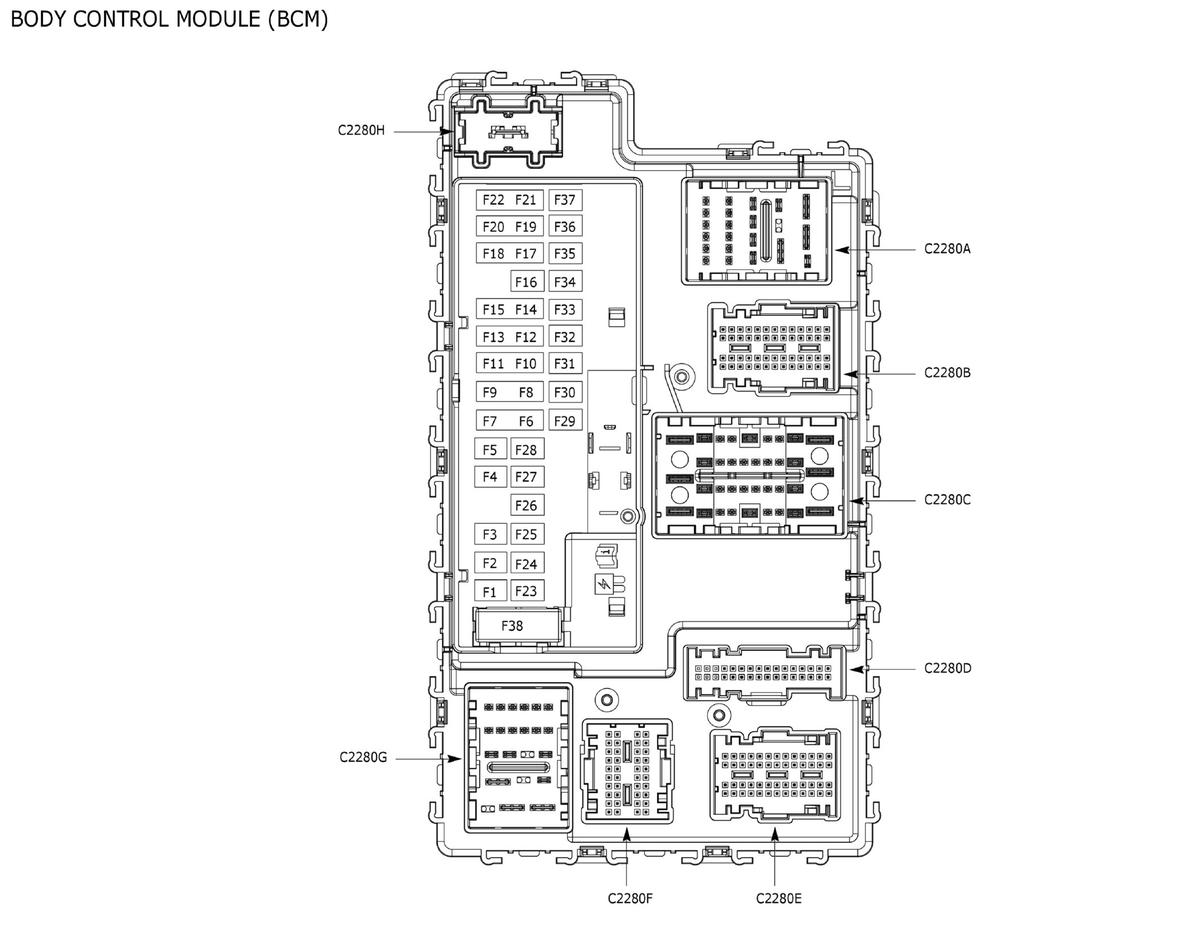

Fig 6: Body Control Module Component Location
GFDW101993Courtesy of FORD MOTOR COMPANY

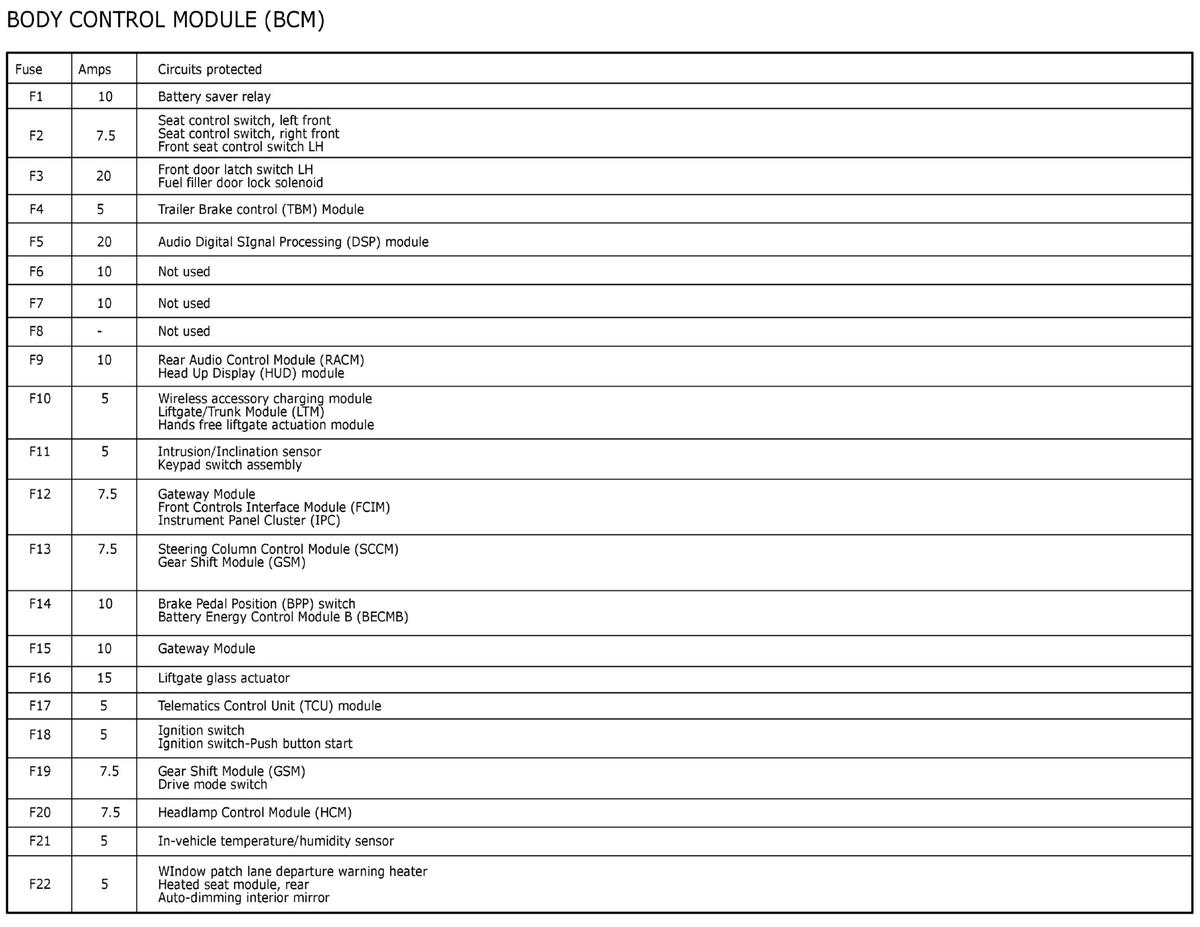

Fig 7: Body Control Module Component Location Legend (1 of 2)
GFDW101994Courtesy of FORD MOTOR COMPANY

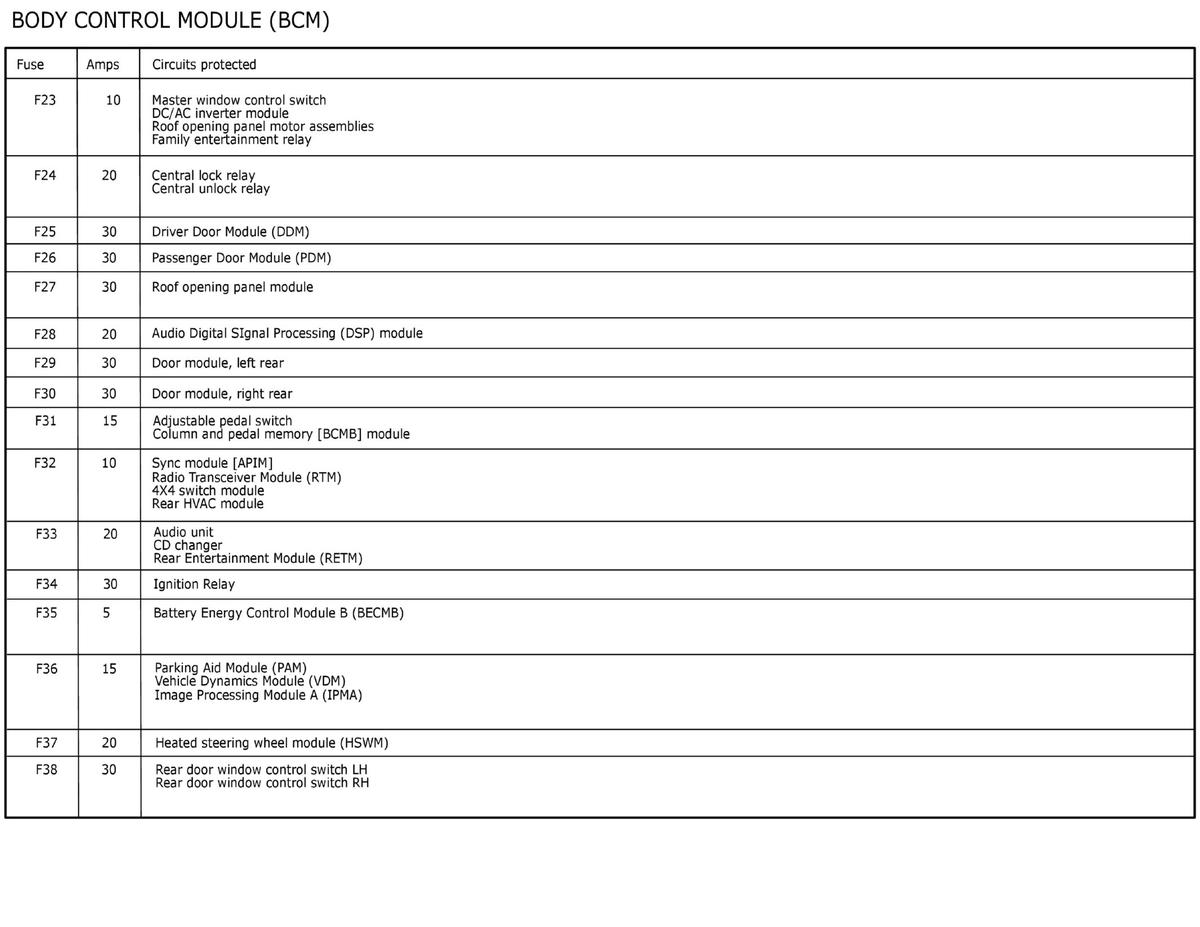

Fig 8: Body Control Module Component Location Legend (2 of 2)
GFDW101995Courtesy of FORD MOTOR COMPANY
