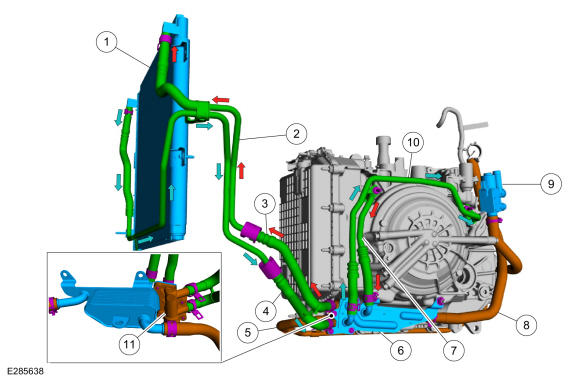

| 1 |
Transmission fluid cooler and A/C condenser assembly |
| 2 |
Transmission fluid cooler tube assembly |
| 3 |
Cooler bypass valve-to-transmission fluid cooler tube assembly hose |
| 4 |
Transmission fluid cooler tube assembly-to-cooler bypass valve hose |
| 5 |
Transmission fluid warmer coolant inlet hose |
| 6 |
Transmission fluid warmer |
| 7 |
Transmission-to-transmission fluid warmer tube |
| 8 |
Transmission fluid warmer coolant outlet hose |
| 9 |
Transmission fluid warmer coolant control valve |
| 10 |
Transmission fluid warmer-to-transmission tube |
| 11 |
Cooler bypass valve |
