Transmission Park by Wire Manual Release

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Activation

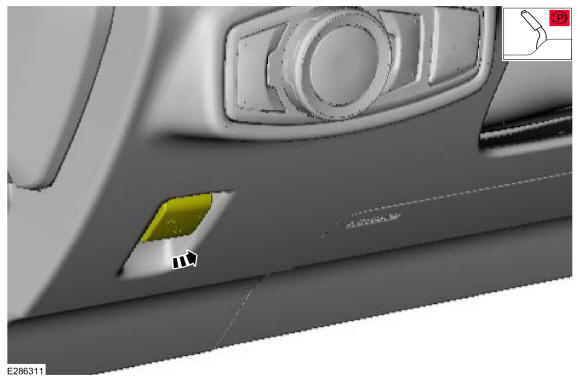

1. Apply the parking brake.

   Courtesy of FORD MOTOR COMPANY

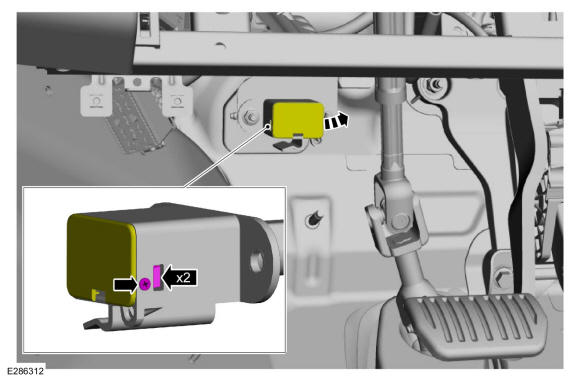

2. Remove the retainer, press the tabs and open the transmission park manual release cable door.

   Courtesy of FORD MOTOR COMPANY

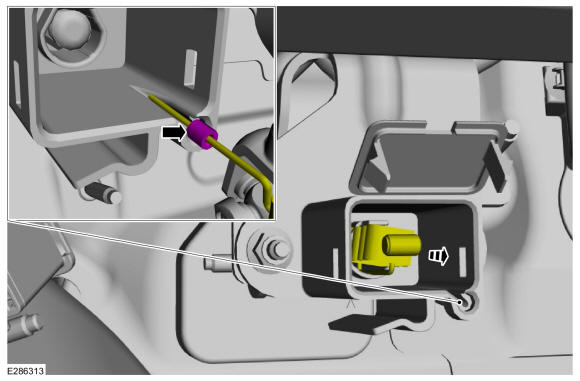

3. Pull the transmission park manual release cable out and lock the cable into the notch in the housing.

Courtesy of FORD MOTOR COMPANY
