Power Transfer Unit Rear Seal: Installation

WARNING: This page is about a different variant/trim than selected.

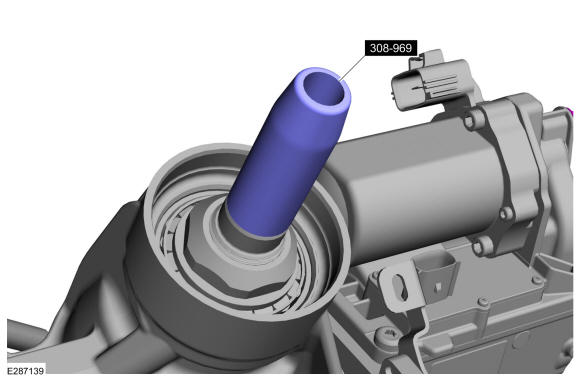

Position the tool on the pinion shaft. Use Special Service Tool: 308-969 Installer, Pinion Seal.

Courtesy of FORD MOTOR COMPANY

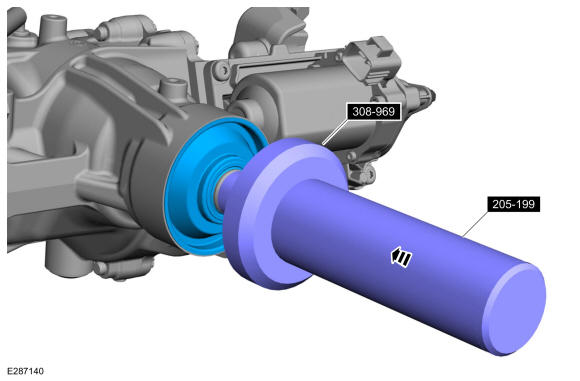

Using the tool install the pinion seal. Use Special Service Tool: 308-969 Installer, Pinion Seal, 205-199 (T83T-3132-A1) Installer, Spindle/Axle Shaft.

Courtesy of FORD MOTOR COMPANY

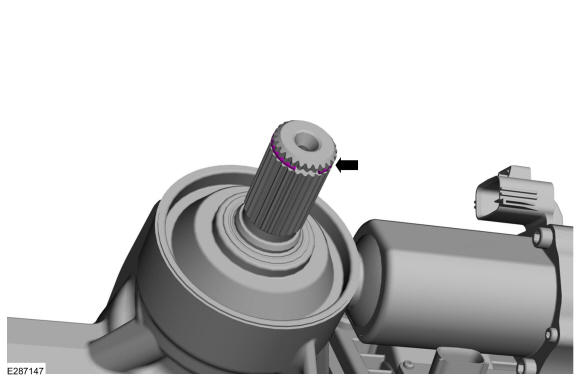

Install new retaining clip.

Courtesy of FORD MOTOR COMPANY

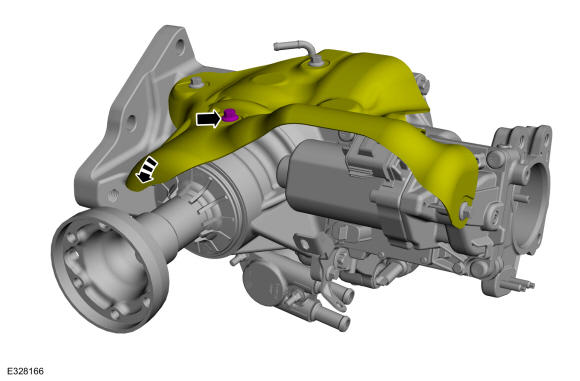

Position back the heat shield and install the heat shield retainer.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

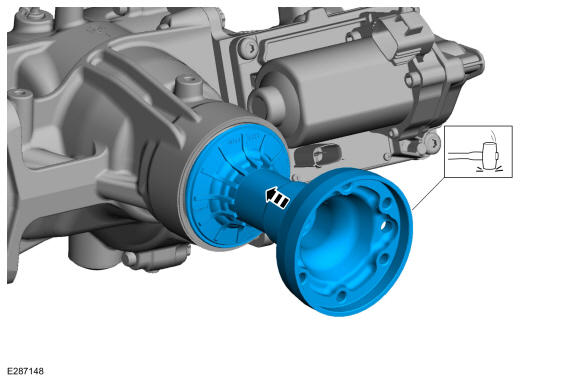

NOTE: Place wooden block on the flange and hammer on the wood using mallet.

Install the companion flange. Use the General Equipment: Plastic Mallet

Courtesy of FORD MOTOR COMPANY
NOTE: 2.0L EcoBoost vehicle shown, others similar.

Install the front crossmember brace and the retainers.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Install the rear driveshaft. Refer to: Rear Driveshaft - 2.0L EcoBoost (184kW 250PS) - MI4
Check the PTU fluid level. Refer to: Power Transfer Unit Fluid Level Check 2.0L EcoBoost
