Power Transfer Unit Input Shaft Seal LH - 8-Speed Automatic Transmission - 8F35: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the PTU actuator motor. Refer to: Power Transfer Unit Actuator Motor 2.0L EcoBoost
Remove the PTU cooler. Refer to: Power Transfer Unit Cooler - Vehicles With: Power Transfer Unit Oil-to-Coolant Cooler 2.0L EcoBoost
Remove the PTU oil temperature sensor. Refer to: Oil Temperature Sensor 2.7L EcoBoost

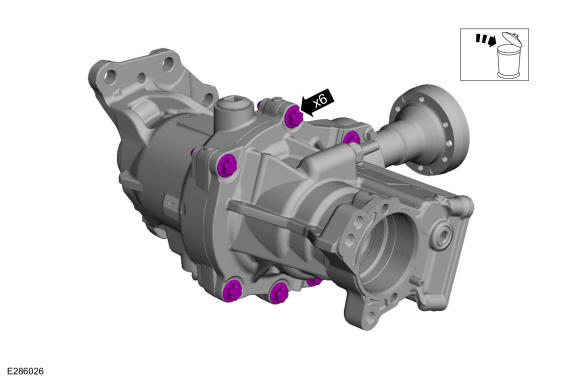

Remove and discard PTU case bolts.

Courtesy of FORD MOTOR COMPANY

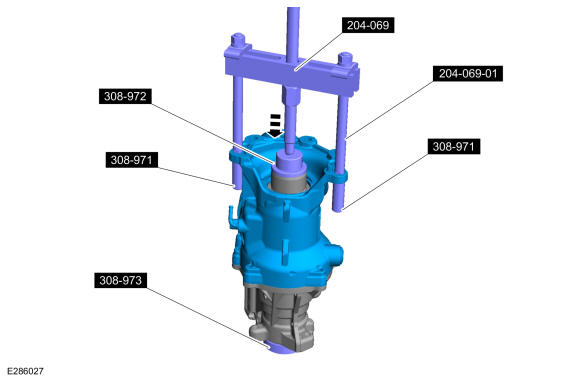

Install the special tools. Remove the casing. Use Special Service Tool: 308-971 Remover, Input Sleeve, 308-972 Installer, Input Sleeve, 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub, 308-973 Remover, PTU Input Sleeve.

Courtesy of FORD MOTOR COMPANY
NOTE: The bearing race and shim may come out when the seal is removed.

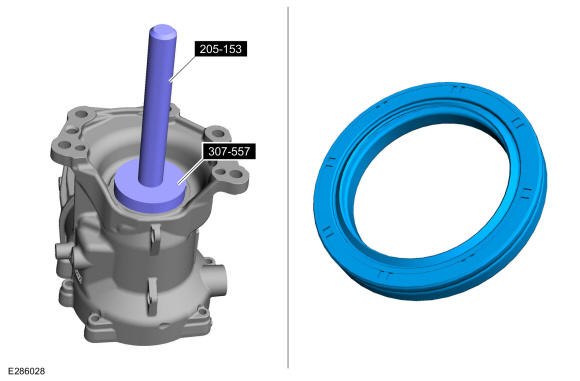

Using the special tools, remove and discard the LH seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 307-557 Installer, Ball Bearing.

Courtesy of FORD MOTOR COMPANY

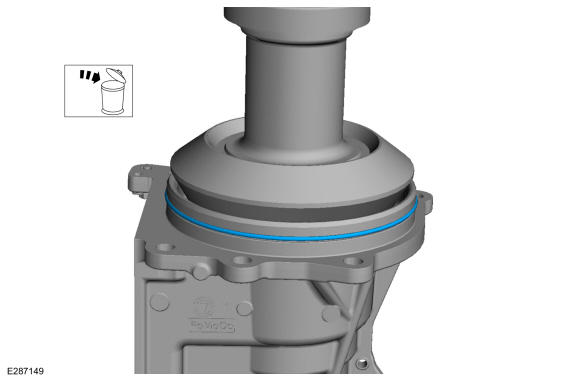

Remove and discard the O ring.

Courtesy of FORD MOTOR COMPANY

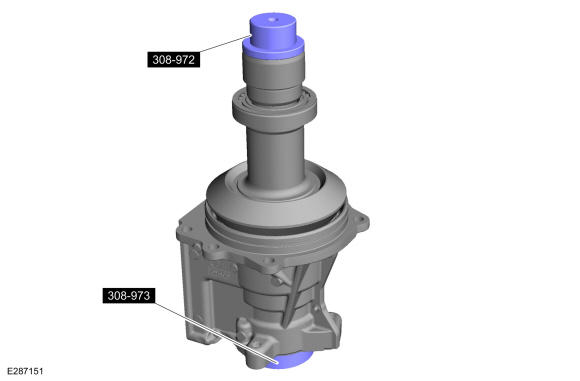

Position the internal components and side cover in the press. Using the tool, push the input sleeve to neutral position to release any pressure on the snap ring. Use Special Service Tool: 308-972 Installer, Input Sleeve, 308-973 Remover, PTU Input Sleeve. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY

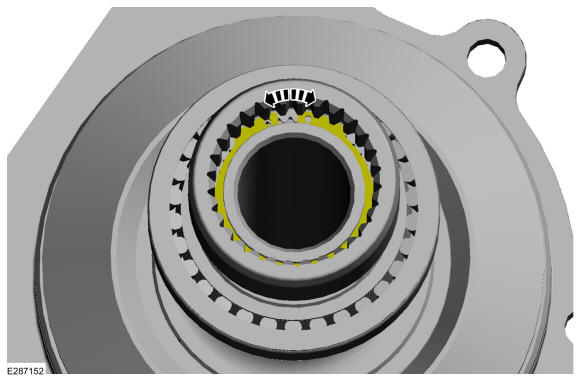

Check whether snap ring rotates freely in the groove.

Courtesy of FORD MOTOR COMPANY

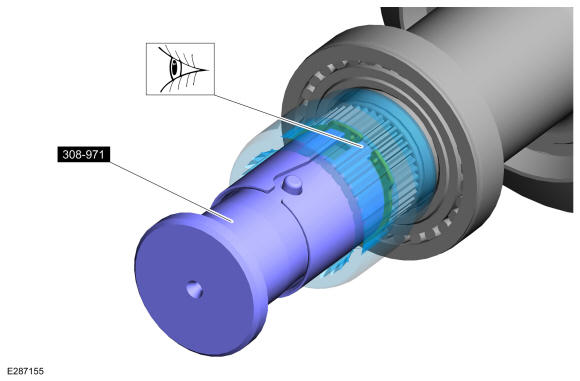

- Install the tool in the connecting sleeve. Use Special Service Tool: 308-971 Remover, Input Sleeve.
- Rotate the tool until the teeth or fingers drop into the snap ring end gap.
Courtesy of FORD MOTOR COMPANY
NOTE: The bearing separator should be installed loosely under the connecting sleeve. Tightening the bearing separator against the PTU input shaft will cause damage to the input shaft splines as the connecting sleeve is removed.

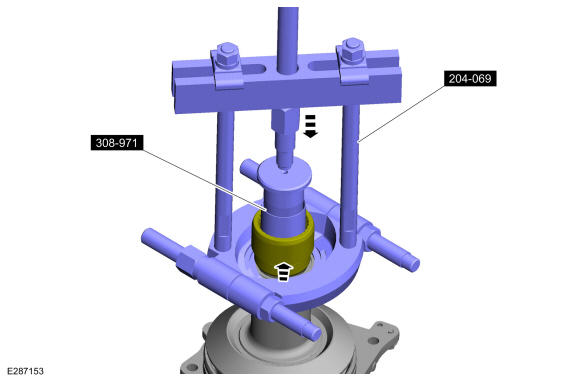

If the snap ring does not rotate freely, use the tools as per the graphic to pull the input sleeve up till it's tight on the snap ring. Use Special Service Tool: 308-971 Remover, Input Sleeve, 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub. Use the General Equipment: Bearing Separator

Courtesy of FORD MOTOR COMPANY

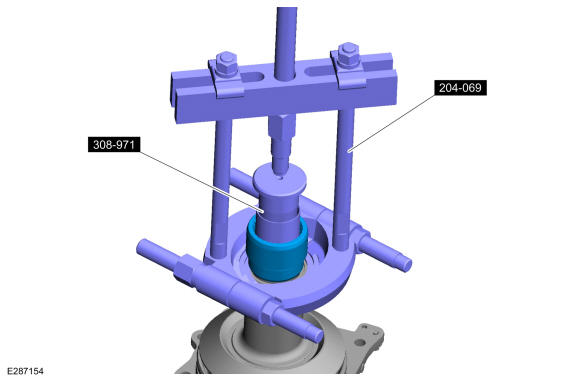

1. NOTE: The bearing remover should be loosely installed under the sleeve.

  Install the tools as per the graphic. Use the General Equipment: Bearing Separator
2. Remove the input sleeve.
Courtesy of FORD MOTOR COMPANY

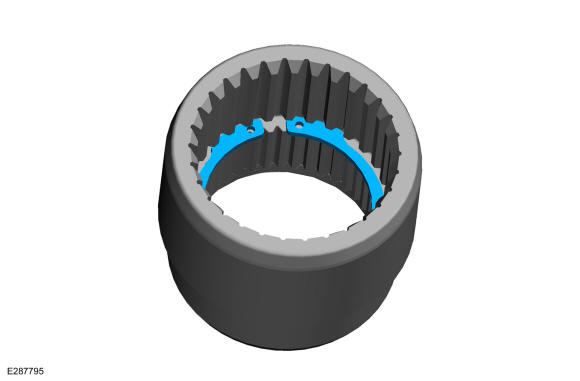

Remove and discard the snap ring.

Courtesy of FORD MOTOR COMPANY
Remove the discard the O ring.

Courtesy of FORD MOTOR COMPANY
