Power Transfer Unit Input Shaft Seal LH - 8-Speed Automatic Transmission - 8F35: Installation

WARNING: This page is about a different variant/trim than selected.

Lubricate and install the new O ring.

Courtesy of FORD MOTOR COMPANY
Lubricate and install the new O ring.

Courtesy of FORD MOTOR COMPANY
Install new PTU case bolts.
Torque

Stage 1: 22 lb.ft (30 Nm) Stage 2: 50 deg.

Courtesy of FORD MOTOR COMPANY

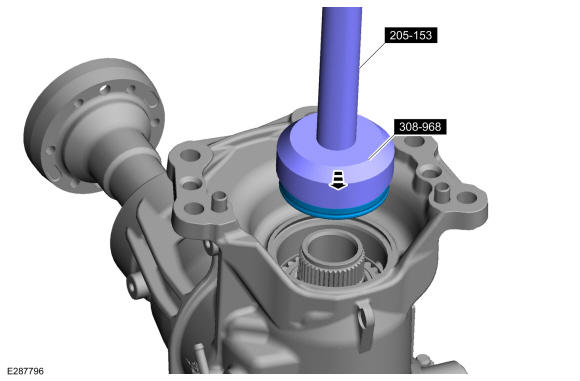

Using the special tool, install the LH seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 308-968 Installer, Input Shaft Seal.

Courtesy of FORD MOTOR COMPANY

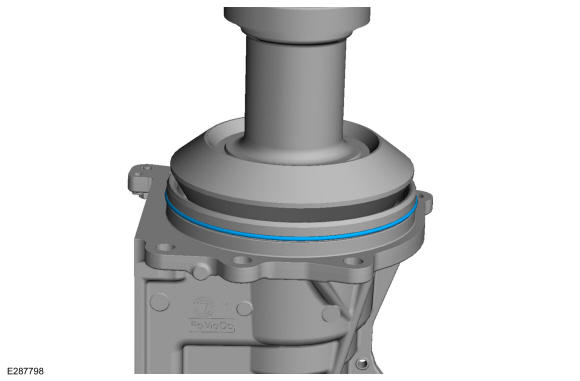

Install the new snap ring.
1. Inspect outer sealing surfaces for wear or damage. Install a new sleeve as necessary.
2. Lubricate and install the new snap ring.
3. Position the snap ring with the end gaps as close to the center as possible, push down/outward on the snap ring opposite the end gap.
Courtesy of FORD MOTOR COMPANY

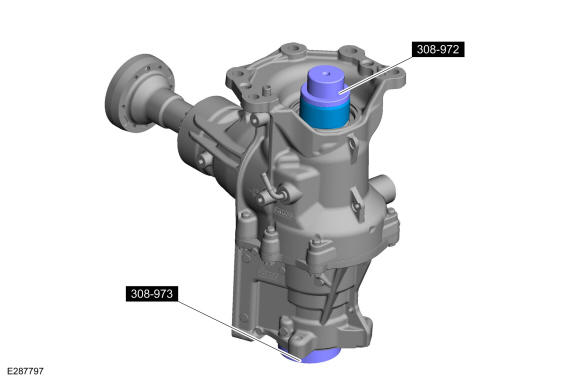

1. Set snap ring to proper depth.
2. Install the connecting sleeve on the input shaft.
3. Install sleeve installer tool in the connecting sleeve. Place AUTO side down for 8F35/40 applications. Place MANUAL side down for MMT6 Use Special Service Tool: 308-972 Installer, Input Sleeve, 308-973 Remover, PTU Input Sleeve.
4. Place PTU in a press and press until tool bottoms out. A click sound may be heard when snap ring fits on the groove. Use the General Equipment: Hydraulic Press
Courtesy of FORD MOTOR COMPANY
Install the PTU oil temperature sensor. Refer to: Oil Temperature Sensor 2.7L EcoBoost
Install the PTU cooler. Refer to: Power Transfer Unit Cooler - Vehicles With: Power Transfer Unit Oil-to-Coolant Cooler 2.0L EcoBoost
Install the PTU actuator motor. Refer to: Power Transfer Unit Actuator Motor 2.0L EcoBoost
