Power Transfer Unit Cooler - Vehicles With: Power Transfer Unit Oil-to-Coolant Cooler: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview
2. If equipped, remove the underbody shield.

   Courtesy of FORD MOTOR COMPANY

3. Remove the LH and RH exhaust flexible pipe. Refer to: Exhaust Flexible Pipe 2.7L EcoBoost
4. Remove the roll restrictor RH. Refer to: Roll Restrictor RH
5. Clamp the hoses.

   Courtesy of FORD MOTOR COMPANY

6. Release the hose clamps and position aside the PTU cooling system hoses.

   Courtesy of FORD MOTOR COMPANY

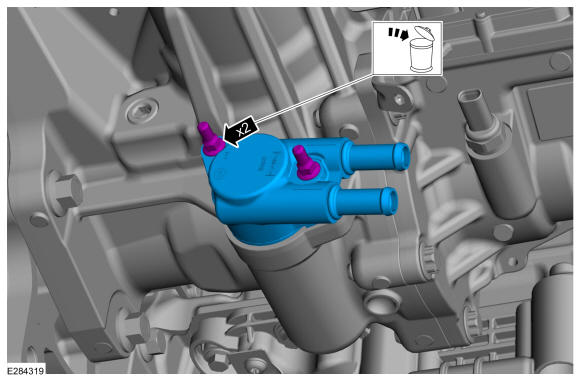

7. NOTE: Be prepared to catch escaping fluid.

   Remove the nuts and PTU cooler.

   Torque

   : 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
