Turbine Shaft Speed (TSS) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the LH wheel and tire. Refer to: Wheel and Tire .
- Disconnect the TSS sensor electrical connector.

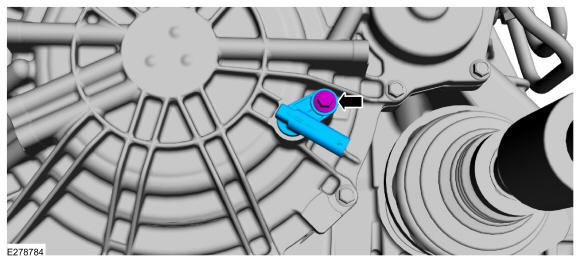

- Remove the bolt and the TSS sensor.
