Transmission Support Insulator: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the following items:
1. Refer to: Battery Tray .
2. Refer to: Cowl Panel Grille .
3. Refer to: Air Cleaner Outlet Pipe RH 2.7L EcoBoost .
4. Remove the RHCAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe 2.7L EcoBoost .
NOTE: RH shown, LH similar.

Remove the retainers and the RH and LH cowl filler panels.

Courtesy of FORD MOTOR COMPANY
Disconnect the PCV tube and position aside.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and position aside the vacuum harness pressure sensor.

Courtesy of FORD MOTOR COMPANY
Detach the wire harness retainers from the studbolts and hose support. Remove the bolts and position aside the ground wire and the hose support.

Courtesy of FORD MOTOR COMPANY
Install the special tools on the engine.
1. Straight side of the special tool.
2. Sloped side of the special tool. Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1634 Lift Eyes (2).
Courtesy of FORD MOTOR COMPANY
Using the special tools, support the engine. Use Special Service Tool: 303-F070 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY
1. Remove and discard the transmission support insulator bracket bolt.
2. Remove and discard the transmission support insulator bracket bolts and remove the bracket.
Courtesy of FORD MOTOR COMPANY
Remove and discard the rear roll restrictor bolt.

Courtesy of FORD MOTOR COMPANY
Remove the wiring harness retainer, remove and discard the bolts, lower the transmission and remove the transmission support insulator.

Courtesy of FORD MOTOR COMPANY

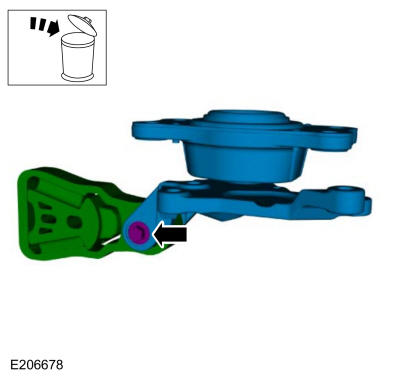

Clamp the transmission support insulator in a vise and remove and discard the roll restrictor bolt. Use the General Equipment: Vise

Courtesy of FORD MOTOR COMPANY
