Transmission Support Insulator: Installation

WARNING: This page is about a different variant/trim than selected.

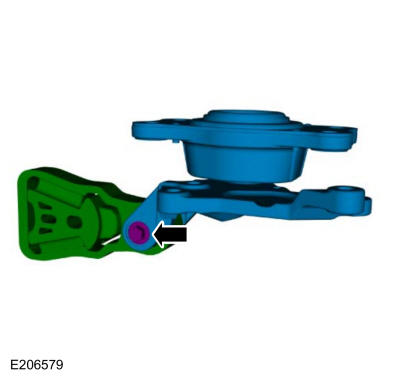

Loosely install a new roll restrictor bolt. Use the General Equipment: Vise

Courtesy of FORD MOTOR COMPANY

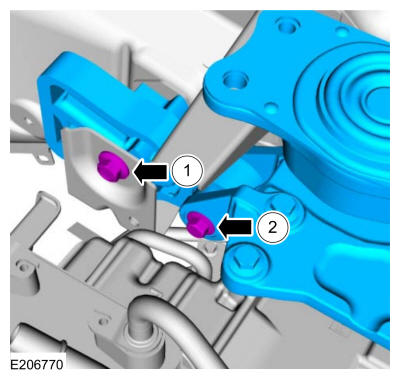

Install the transmission support insulator, new bolts and install the wiring harness retainer.
Torque

: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission support insulator.
1. Install a new bolt.
  Torque

  : 111 lb.ft (150 Nm)
2. Tighten the bolt.
  Torque

  : 85 lb.ft (115 Nm)
Courtesy of FORD MOTOR COMPANY
1. Install the transmission support insulator bracket and new bolts.
  Torque

  : 66 lb.ft (90 Nm)
2. Install a new transmission support insulator bracket bolt.
  Torque

  : 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: RH shown, LH similar.

Install the RH and LH cowl filler panels and the retainers.

Courtesy of FORD MOTOR COMPANY
Position the ground wire and hose support, install the bolts. Attach the wire harness retainers to the studbolts and the hose support.
Torque

: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the PCV tube.

Courtesy of FORD MOTOR COMPANY
Install the vacuum harness pressure sensor and the bolt.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the RHCAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe 2.7L EcoBoost .
2. Refer to: Air Cleaner Outlet Pipe RH 2.7L EcoBoost .
3. Refer to: Battery Tray .
4. Refer to: Cowl Panel Grille .
