Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

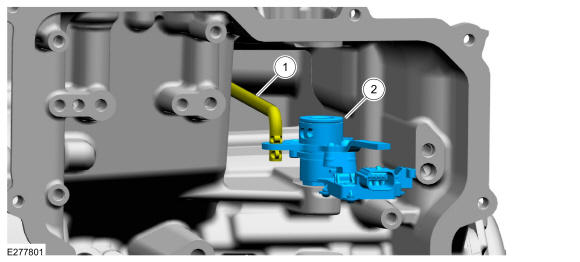

    1. Position the park pawl actuating rod in the TR sensor.
    2. Position the TR sensor in the transmission case.
    GFD428471Courtesy of FORD MOTOR COMPANY

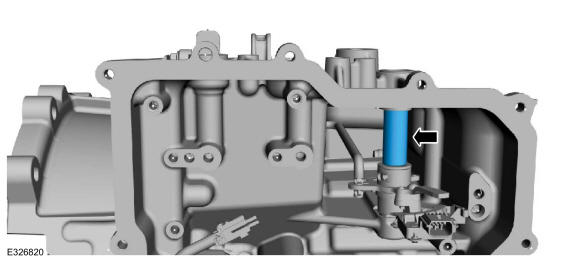

  2. Install the manual control shaft sleeve.
    GFD428469Courtesy of FORD MOTOR COMPANY

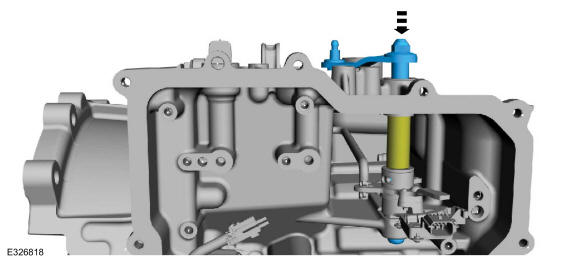

  3. Install the manual control shaft and lever.
    GFD428472Courtesy of FORD MOTOR COMPANY

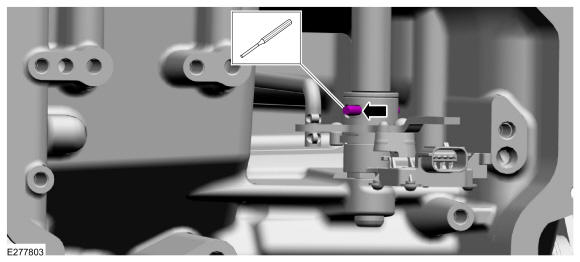

  4. Install the TR sensor roll pin. Use the General Equipment: Punch
    GFD428473Courtesy of FORD MOTOR COMPANY

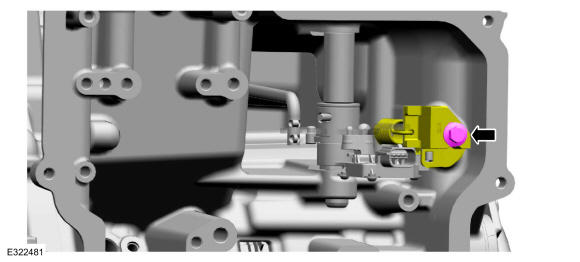

  5. Install the park-by-wire support bracket and bolt.

    Torque

    : 97 lb.in (11 Nm)

    GFD428466Courtesy of FORD MOTOR COMPANY

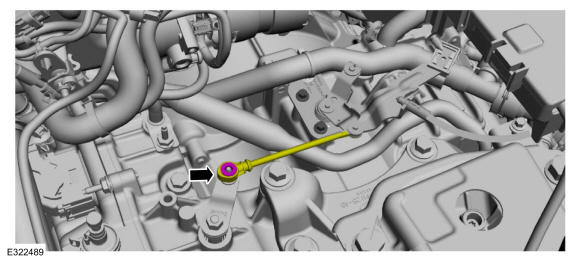

  6. Connect the manual park release linkage.
    GFD428465Courtesy of FORD MOTOR COMPANY
  7. Install the main control valve body. Refer to: Main Control Valve Body  .
