Transmission Internal Wiring Harness Frame: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the main control cover. Refer to: Main Control Cover .

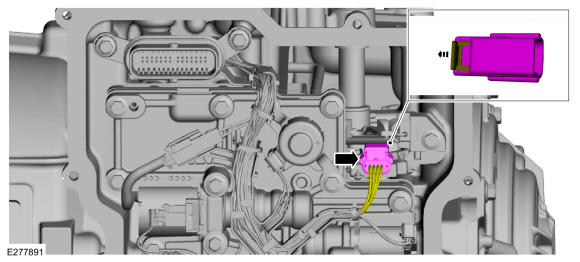

- Unlock and disconnect the TR sensor.

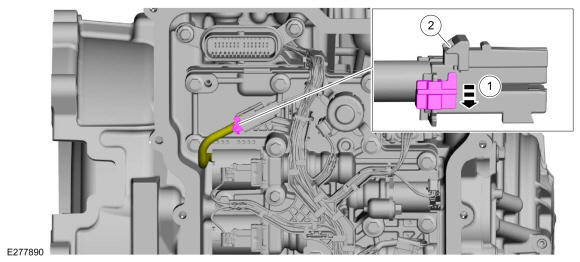

- Unlock and disconnect the OSS sensor electrical connector.
- Unlock and disconnect the bulkhead electrical connector.
- Remove the transmission wiring harness bolts.

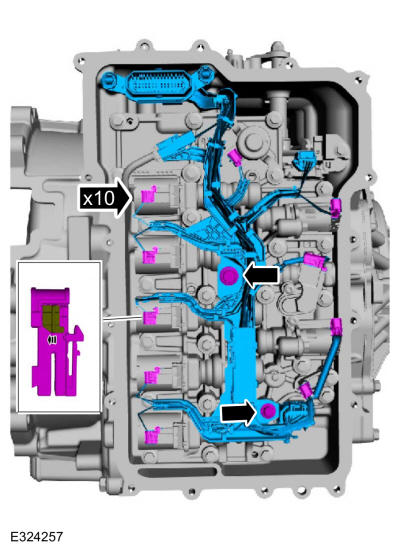

- Unlock and disconnect the solenoid electrical connectors and the TFT sensor electrical connector. Disconnect the transmission fluid pressure sensor electrical connector. Remove the bolts and the wiring harness assembly.
